ALL NEW GEN 2 Kits build on the foundation of our Super Successful, Super Fast RX28.

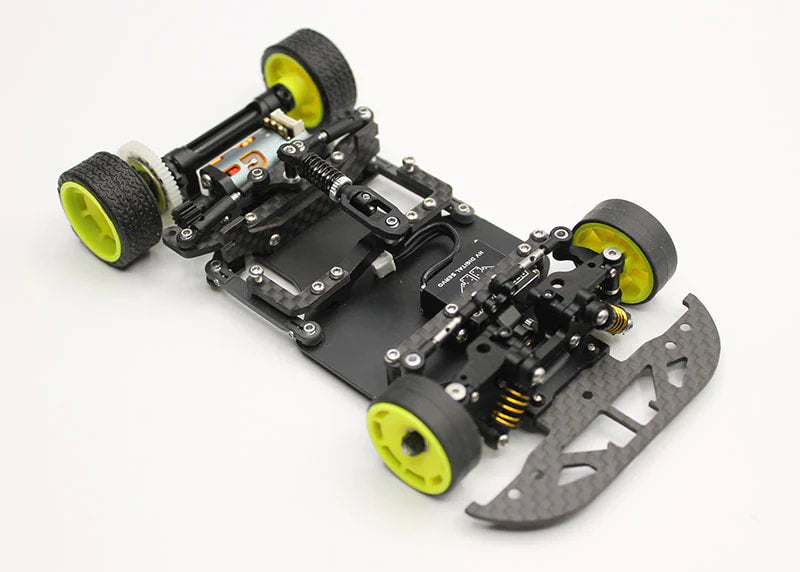

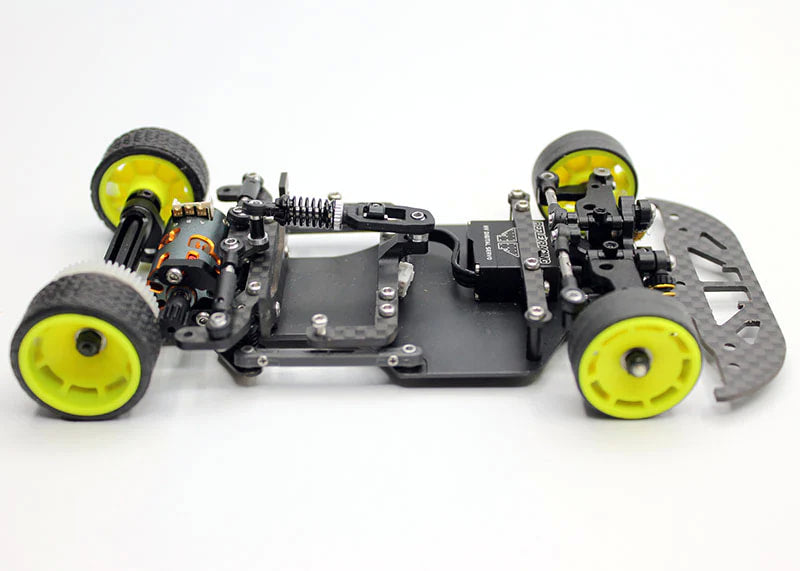

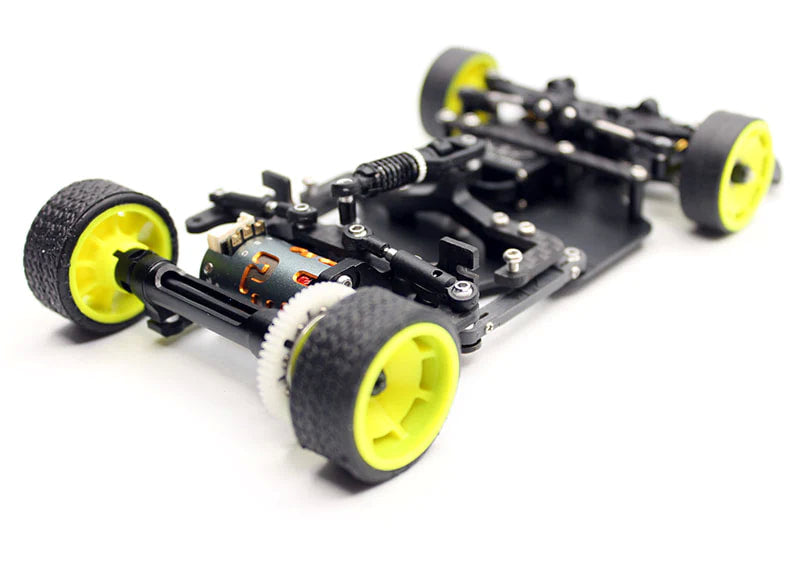

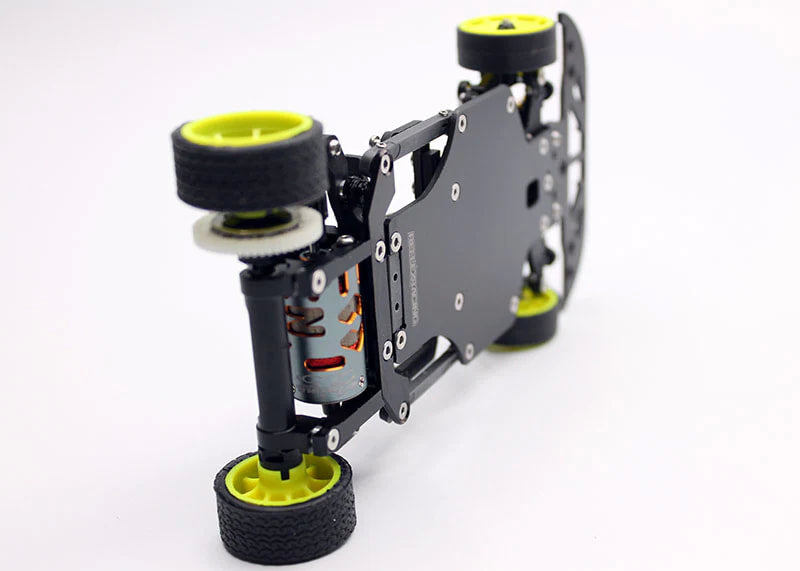

RX28-KITG2 (Double A-ARM Front Suspension)
ALL NEW GEN 2 Kits build on the foundation of our Super Successful, Super Fast RX28.
New in the Gen 2 DOUBLE-A-ARM cars is:

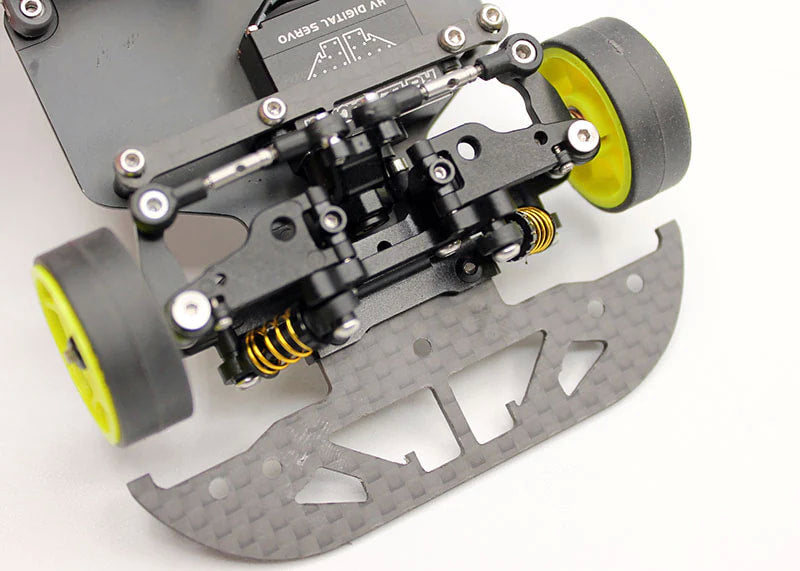

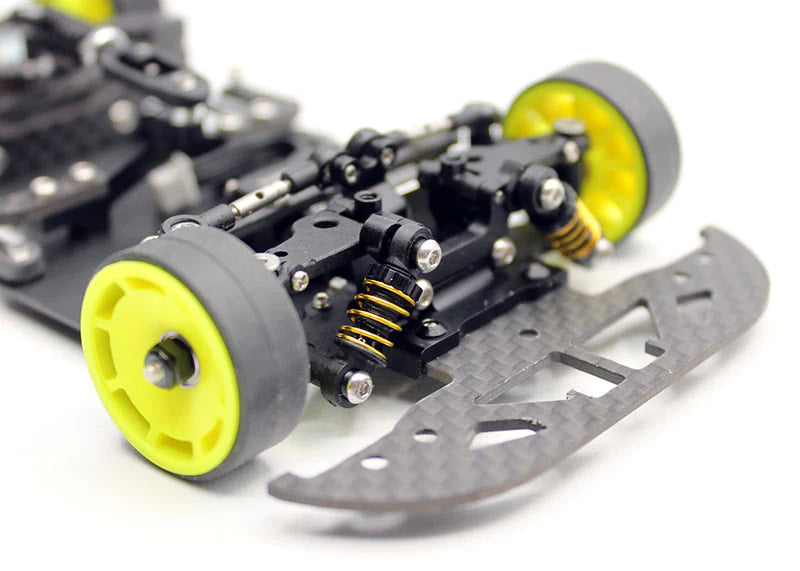

Updated Molded A-Arms with less slop and dedicated Left/Right Arms
Molded U Shaped Side Links for more durability and extra clearance around battery Area
Molded Center Pivot for more Durability
30g Stainless Steel Chassis with Hard Coating for more durability, quality and performance vs brass

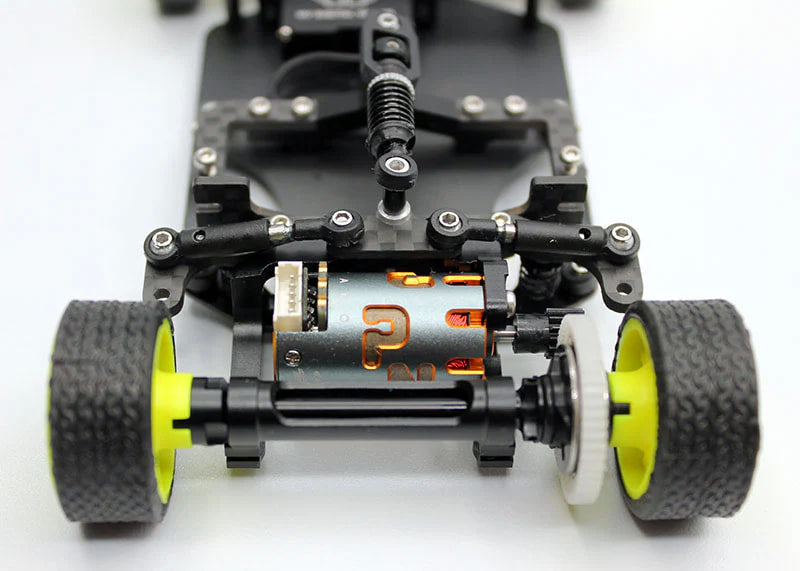

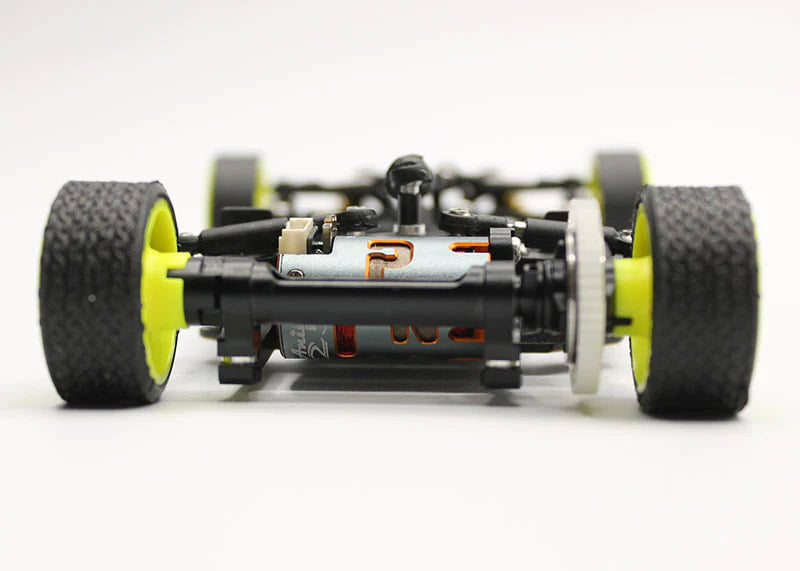

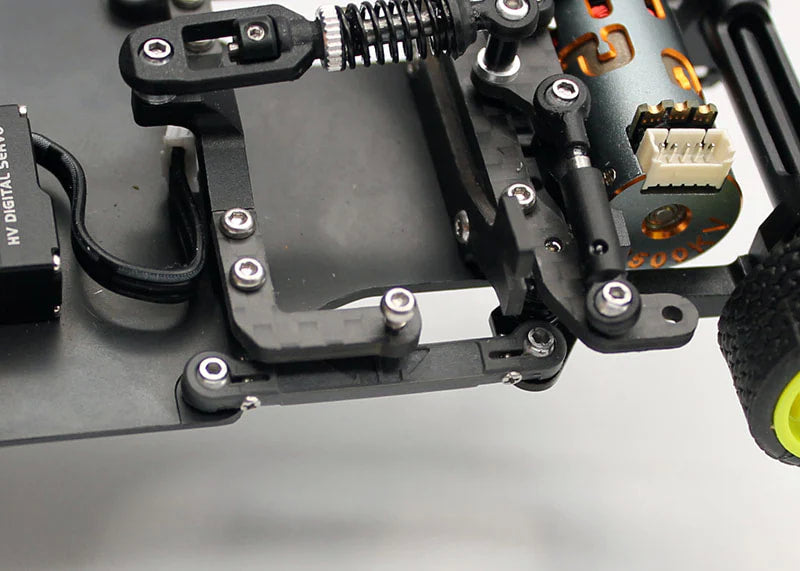

All New Ultra Low CG Motor Mount for increased corner speed, lighter weight and more precise ride height adjustment. Also allows virtually any motor in the industry to be a drop in to the mounting position. Allows gear adjustment from 9T-17T Pinions.
Newly Released V2 Differential with thrust bearing and aluminum dust cover compatible spur gear.

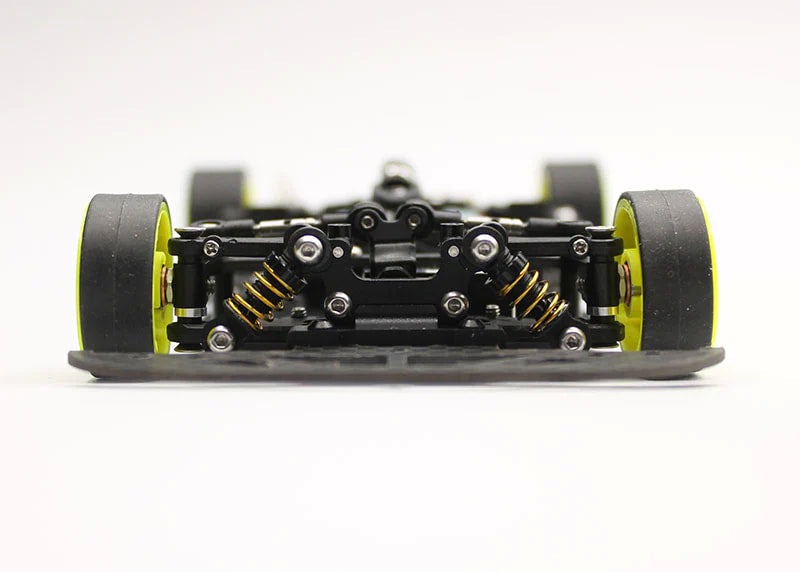

Revised Front Bulkhead which now has static 2 degrees of caster and no interference with upper or lower arms.
Revised hardware throughout.
Reflex Racing Speed Wheels Included
Dimensions:
98mm Wheelbase
145g-170g weight RTR Depending on body and Electronics
69mm to 78mm Rear Track Width
72mm to 75mm Front Track Width
Required to Complete this Kit:
Body and either front clip or front bumper (note: if using a hardbody, glue the L-shaped side-clips to the ridges just forward of the standard placement, shown in pictures and manual)
Wheels and Tires (note: the front track width of the RX28 is wider than that of the MR03W so please use front wheels with 2mm lower offset)
Motor
ESC
Receiver
Servo (Please note, the provided servo horn is designed to work with the AGFC A06CLS sized Spline, the Atomic Servo is a little bit of a tight fit but works, and the GL the PN Anima Servos will fit as well)
