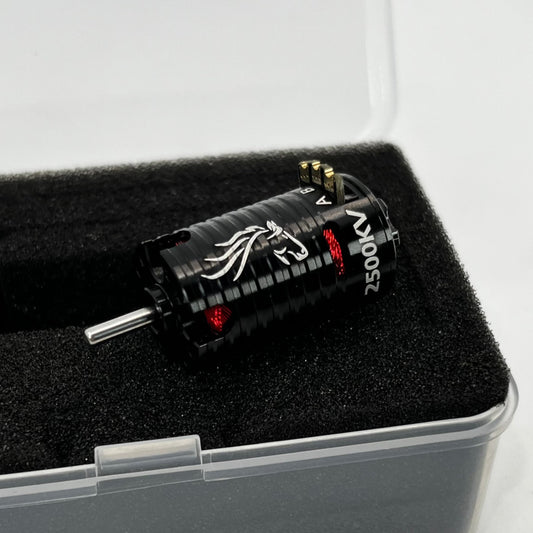

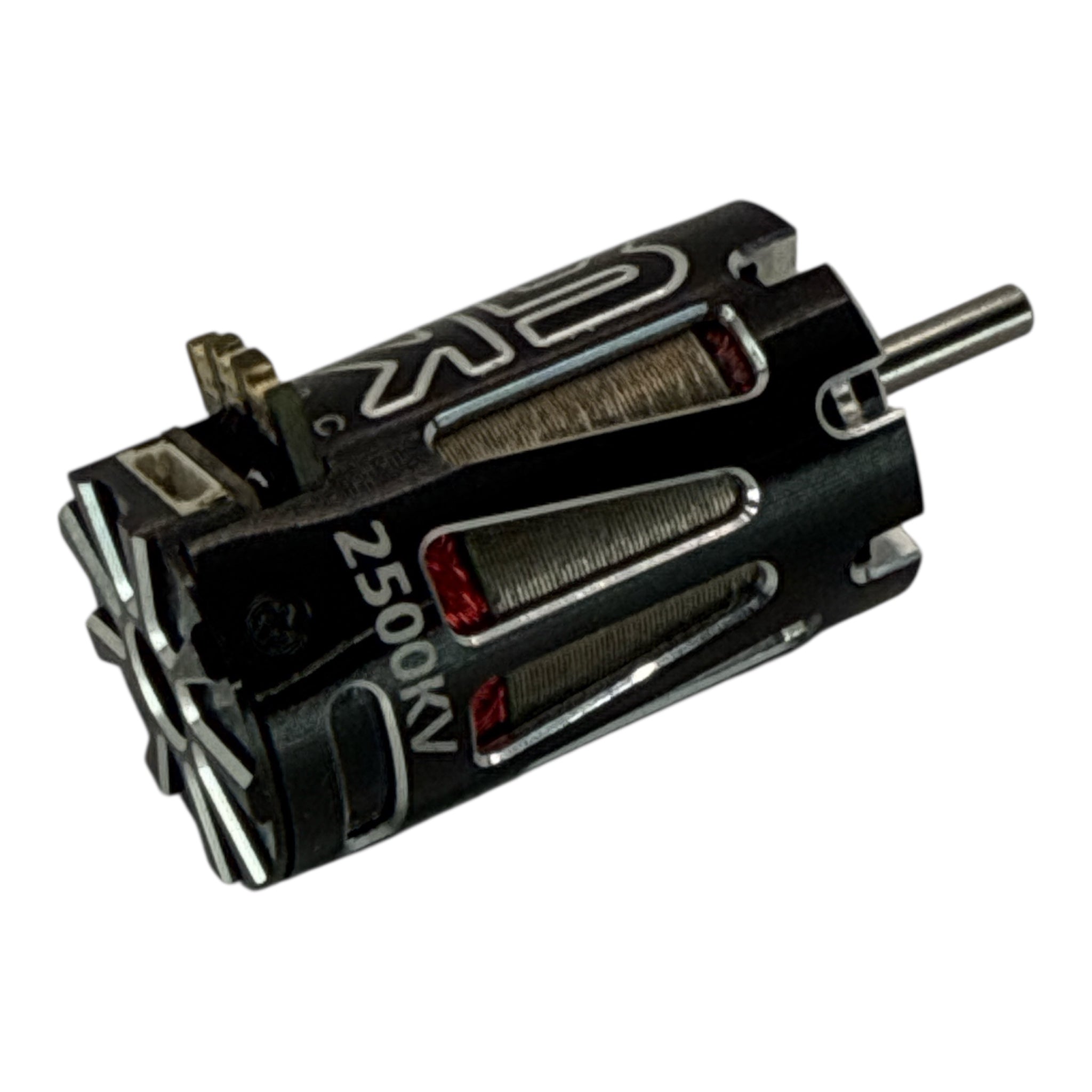

High-Performance 2500KV Brushless Motor - Limited Batch Release

Originally distributed as exclusive handout motors at the 2023 Race of Champions in Maryland, these sensorless brushless motors quickly gained a reputation among racers nationwide. Due to high demand from competitive drivers using them in local circuits, these motors became increasingly scarce in the marketplace.

Silver Horse is now releasing a new limited batch of these sought-after motors. Initial testing reveals impressive performance potential, with many units measuring 2720 - 2740KV and higher during
out of the bag" bench testing. While we cannot guarantee every motor will exceed the rated 2500KV specification, early results suggest strong performance characteristics across the batch.

Key Features:

• 2500KV rating (tested units showing 2600KV to 2730KV+)
• Sensorless brushless design
• Proven race performance
• Limited availability

Note: KV ratings may vary between individual motors. No guarantee of receiving units that exceed rated specifications.

Yutori Bearing oil is approved for use in Silver Horse bearings and motors. It is lightweight and easy to apply with the built-in drip needle. This is a must have for all serious 1/28 Mini-Z racers!

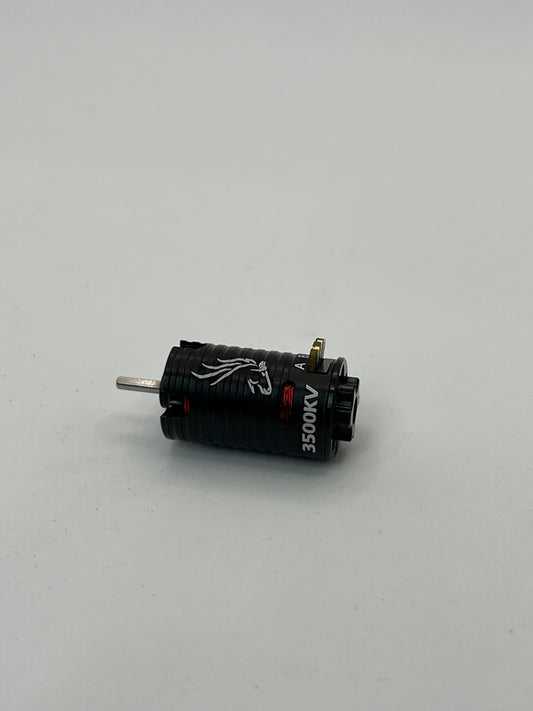

These Silver Horse RC 3500KV are race proven and have been on the top podium spots at National Races including the Wolfram Grand Prix!

Silver Horse has decided to bring another batch on the market and early testing show these motor are hot! (no guarantee of getting the hottest one, but testing a few of them has shown high KV)

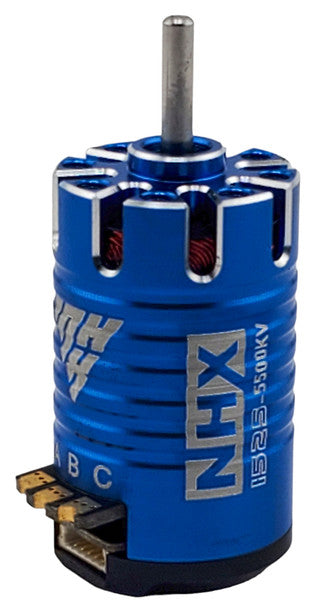

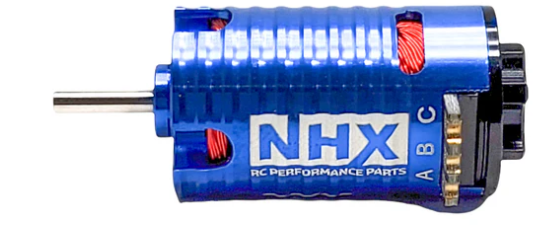

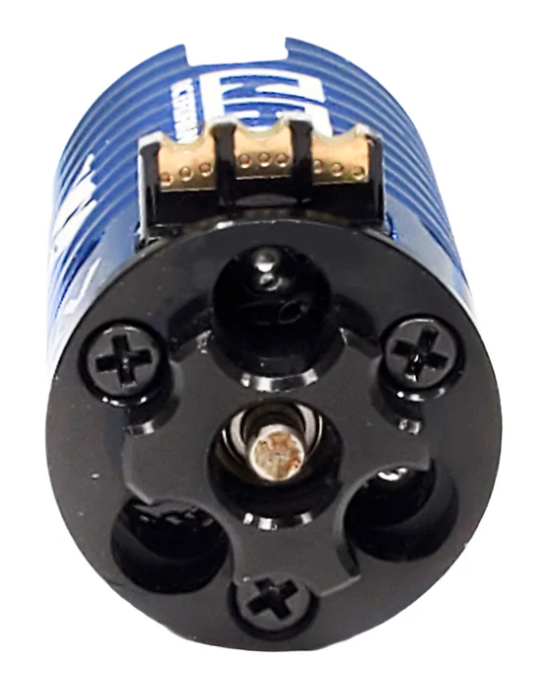

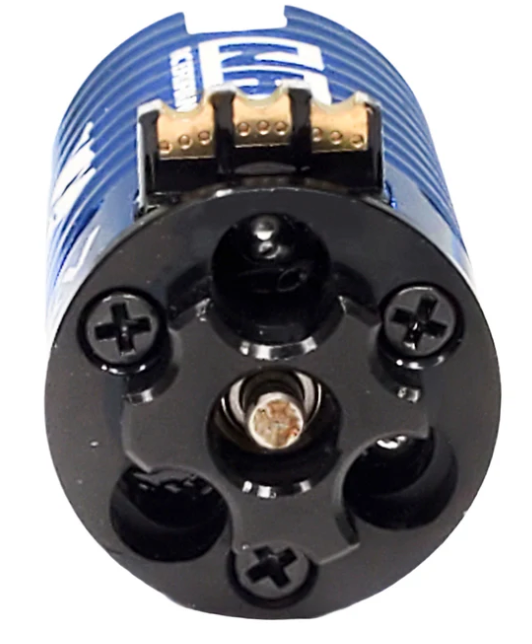

1525 2-Pole 5500KV Sensored Brushless Motor

High-Efficiency Power in a Compact Design – Perfect for 1/24 and 1/28 Scale RC Vehicles

The all-new 1525 2-Pole Sensored Brushless Motor delivers premium performance in a micro-sized package. Designed for competitive RC applications, this motor provides up to 80W of maximum power with an impressive 92% output efficiency. Whether you prefer Sensored or Sensorless startup, this motor adapts to your driving style.

🔧 Key Features:

• Dual-Mode Startup: Supports both Sensored and Sensorless operation.
• High-Efficiency Performance:
  • Powerful 2-pole rotor with high-temp magnets (up to 200°C).
  • 0.2mm silicon steel stator achieves up to 94% energy conversion.
  • High slot rate design for increased power with reduced resistance.
• Premium Build Components:
  • NSK bearings from Japan for smooth high-speed performance.
  • Gold-plated thick PCB board ensures reliable ESC connection.
  • American MWS red wire for high-grade conductivity.
  • Sensor port compatible with standard sensor cables.
• Precision-Balanced Rotor: Balanced with a German Schenker machine for ultra-smooth operation.
• Turbo Timing Capable: Reach speeds of up to 60,000 RPM when turbo timing is enabled.
• Durable Aluminum Alloy Housing: Lightweight and highly stable under load.

📐 Specifications:

📦 Package Includes:

• 1 × 5500KV Mini 1525 2-Pole Sensored Brushless Motor
• 1 × Sensor/Connecting Cable

Ready to upgrade your 1/24 or 1/28 scale RC vehicle? The 1525 Sensored Brushless Motor delivers elite performance in a compact form factor — ideal for racers and hobbyists alike.

Standard brushed motor for the MR-03EVO. No. 82083 I.C.S. USB Adapter is required to change modes.

5600KV brushless motor for the MINI-Z series

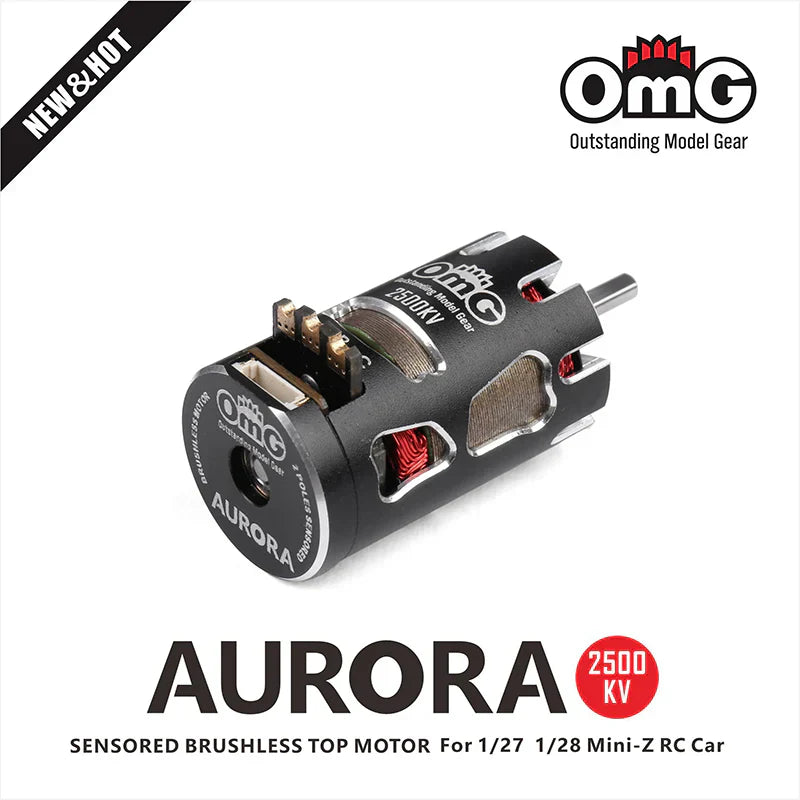

OMG-MT-AURORA-S2

Sensored brushless top motor for 1/27 and 1/28 Mini-Z RC Car

Suitable for rc RWD,FWD,etc vehicles.

Max Amps:8A

Max Voltage (V):<8.4

Resistance(Ω):0.74

No-load Current(A):0.25

Continuous Power(W):80

Poles:2

Max RPM:60000

Length of extend Shaft:10mm

Diameter Length(mm):Φ15X25mm

Shaft Diameter(mm):Φ2

Weight:17g

- Sensor type

- Motor Dimension (Diameter x Length): 4.5mm x 14.5mm (size is ~15% smaller than the MBX V1 motor)

- Shaft Diameter: 2mm

- Weight: ~14~15g (vary in different KV motor)

- Recommended RC Model Car: 1/27 Mini-Z

PRODUCT INFORMATION:

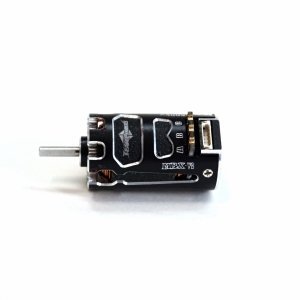

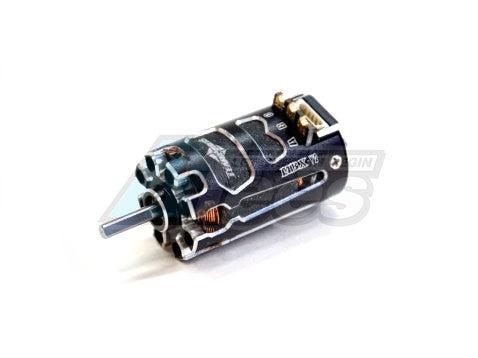

• This is MBX 7000KV V3 Brushless Sensored Motor For 1/27 Mini-Z.

  New features based on MBX V2 motor:

  • All outlook appearance and dimension are the same, the stator wiring and rotor dimension are updated to achieve smoother acceleration, especially for drift cars.




  Specification:

  • Sensor type
  • Motor Dimension (Diameter x Length): 15mm x 25.1mm (size is ~15% smaller than the MBX V1 motor)
  • Shaft Diameter: 2mm
  • Weight: ~14~15g (vary in different KV motor)
  • Recommended RC Model Car: 1/27 or 1/24 miniz car
• Package total weight: 30.00 grams (incl. packaging)
• Factory description: Team Powers MBX V3 7000KV sensored Brushless Motor (For 1/27th Mini-Z)

- Sensor type

- Motor Dimension (Diameter x Length): 4.5mm x 14.5mm (size is ~15% smaller than the MBX V1 motor)

- Shaft Diameter: 2mm

- Weight: ~14~15g (vary in different KV motor)

- Recommended RC Model Car: 1/27 Mini-Z

GL Racing Sensored Brushless Motor (1PC)

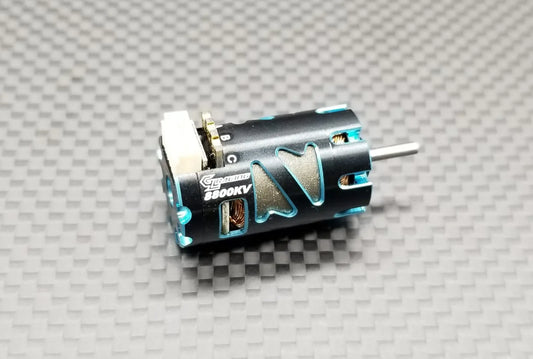

GL Racing Sensored Brushless Motor 8800KV (1pc)

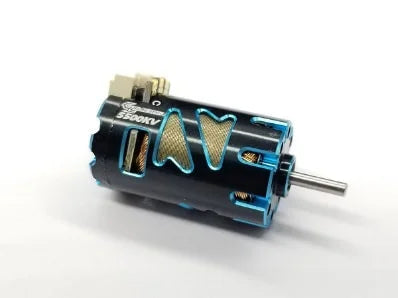

Gl Racing Sensored Brushless Motor 5500kv (1pc)

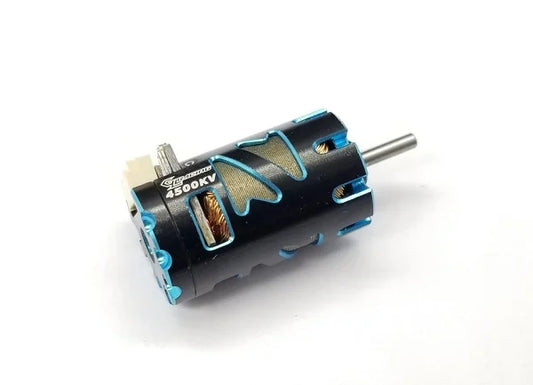

GL Racing Sensored Brushless Motor 4500KV (1pc)

GL Racing 2500KV Sensorless Motor

*MR03 SPORT support this motor with gear ratio not lower than 4.75*

New Version with BALL BEARING

New 2010 Motors Series from 32T to 80T

Description:

Brushless sensor-less motor for Mini-z and any other 1/28 sized micro racers! Features large air ventilation holes to keep with keeping temperatures cool! Four different set of mounting holes allows for you to shift the wiring to allow for ease of mounting. D shaped cut motor shaft for use with both plastic and metallic pinion gears with set screws!

Feature:

• For: 1/24 1/28 Scale Racers
• Poles: 2
• Material: Aluminum
• Color: Black / Red
• Dimensions: 36mm X 15mm (w/shaft) 27mm X 15mm (w/o shaft)
• Weight: 17g
