GX-033

For SANWA Radio Systems

Details: Based on the RX471 Built specially with micro cars in mind, ultra light weight for low cg with micro JST sockets. [GX-033] Micro FHSS-4 4-Channel receiver Specifications: Nominal Input Voltage: 4.8-7.4V Weight: 0.050oz (1.71g) Dimensions: (22.9x14.4x5.8mm) Frequency: 2.4GHz FH3/FH4 Selectable Via Transmitter Fail-Safe Support: Yes (All Channels) Battery Voltage Fail-Safe Limit: 3.5-5.0V (FH3) / 3.5-7.4V (FH4) Dimension: Length: 22.9mm Width: 14.4mm Height: 9.5 (Plugs included)

RX-055

Description:

This is the first Futaba T-FHSS compatible micro surface receiver in the world. It offers full 4-channel support in ultra-light weight and micro size. It is ideal for micro racing cars.

Features:

1. Futaba 2.4GHz T-FHSS compatible

2. High performance CPU enhance precision control feeling

3. 4 channel support

4. Micro size (19mm x12mm)

5. Ideal for any micro rc racing chassis

6. Added failsafe function

7. Operating Voltage 3.7V - 8.4V:

8. Weight: 2g

Compatible Transmitters:

Futaba 7PX 4PX 7XC 4GRS 4PV 4PM 4PLS Transmitter Two-way High Speed Receiver

Package Included:

1 x Receiver

Link Procedure:

Each transmitter has an individually assigned, unique ID code. In order to start operation, the receiver must be linked with the ID code of the transmitter with which it is being paired. Once the link is made the ID code is stored in the receiver and no further linking is necessary unless the receiver is to be used with another transmitter.

1-Place the transmitter and the receiver close to each other within half (0.5) meter.

2-Place the transmitter into the linking mode and turn on the receiver

3-During countdown, push the receiver tact switch for approximately 2 seconds. The LED will begin to blink red. After the receiver LED switches from blinking red to green - red steady light, If the transmitter and receiver are linked normally, set the power switch to the OFF position and then turn on the PWR ON position. If the receiver LED lights green, linking was succeeded. Actually check servo operation.

Normal mode / High Speed mode:

The " Normal mode " accepts any type of servos or the peripheral. The "High Speed mode" only accepts the digital servos, including BLS series, and most peripheral equipments such as the brushless ESCs. Please pay special attention to the information contained within this manual and transmitters manual in order to have a pleasant running experience.

MX USB PG-ISP

FOR USE WITH THE FOLLOWING MXO RECIEVERS-

RXC42

RXC52

GUI software download address - update.crossover-rx.com/mxo.zip

How the receiver to connect GUI software-

Customer needs a USB programmer before using GUI software for set up or firmware updating,connect one side of the cable to M-BUS port on the receiver, connect the other side of the cable to PC, open GUI software and select the correct port, click “Connect”, then all the functional modules of the receiver will be uploaded and the present set up information will be displayed.

MXO DECLARATION

1）The MX USB-PG02 are Not a copy or fake products of other companies；

2）MXO-RF and CROSSOVER-RX brand guaranteed its high quality and continuous technical service.

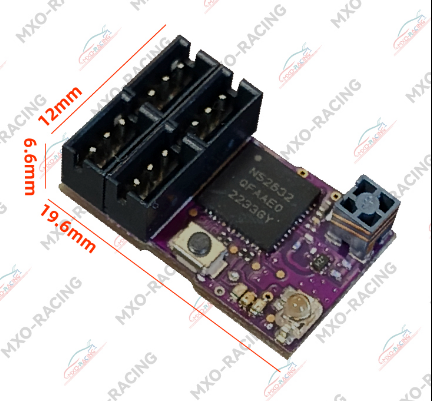

RXC52-A3 Micro Surface Receiver

The first micro surface receiver with an antenna-less design that integrates a transponder with editable personal ID number.

Compatible with:

• NB4
• PL18

DECLARATION:

1. The RXC52 series receivers are original products, not copies or counterfeit versions of other manufacturers
2. MXO-RF and CROSSOVER-RX brands guarantee high quality and ongoing technical support

IMPORTANT!
These features must be unlocked with MXO Part# MX USB PG-ISP Compiler sold separately

Options that can be unlocked with compiler:

• Pay to unlock the editable ID feature
• Unlocking requires the MX USB PG-ISP compiler (sold separately)
• Alternatively, purchase the RXC52 receiver with pre-unlocked TP functionality

RXC52 Micro Surface Receiver

The first micro surface receiver with an antenna-less design that integrates a transponder with an editable personal ID number.

Unlock Options:

• Pay to unlock the editable ID feature
• Unlocking requires the MX USB PG-ISP compiler (sold separately)
• Alternatively, purchase the RXC52 receiver with pre-unlocked TP functionality

Compatible with FUTABA Transmitters:

• FUTABA 10PX
• FUTABA 7PX / 7PXR
• FUTABA 4PX / 4PXR
• FUTABA 4PV / 3PV
• FUTABA 4PLS / 4PL
• FUTABA 4PM
• FUTABA 7XC / 4GRS

IMPORTANT NOTICE:

1. The RXC52 series receivers are original products, not copies or counterfeit versions of other manufacturers
2. MXO-RF and CROSSOVER-RX brands guarantee high quality and ongoing technical support

RXC52-SA Micro Surface Receiver

The first micro surface receiver with an antenna-less design that integrates a transponder with an editable personal ID number.

Unlock Options:

• Pay to unlock the editable ID feature
• Unlocking requires the MX USB PG-ISP compiler (sold separately)
• Alternatively, purchase the RXC52 receiver with pre-unlocked TP functionality

Compatible with Sanwa Transmitters:

• Sanwa M17
• Sanwa M12 / M12S
• Sanwa MT44
• Sanwa MT4 / MT4S

MXO DECLARATION:

1. The RXC52 series receivers are original products, not copies or counterfeit versions of other manufacturers
2. MXO-RF and CROSSOVER-RX brands guarantee high quality and ongoing technical support

RXC52-F5

The first micro surface rx with an antenna-less version that integrates a transponder with editable personal ID number.（Paid to unlock,Unlocking requires the use of the MX USB PG-ISP compiler, which needs to be purchased separately.）

You can also directly purchase the RXC52 receiver with unlocked TP function.

FOR USE WITH -

Sanwa M17

Sanwa MT-5

MXO DECLARATION

1）The RXC52 series RX are Not a copy or fake products of other companies； ​

2）MXO-RF and CROSSOVER-RX brand guaranteed its high quality and continuous technical service.

This RC receiver unit is FUTABA-SFHSS full range of remote controls compatible. It offers full 4-channel support in ultra-light weight and micro size. It is designed for micro racing cars.

1)Modulation:Compatible DSM/DSM2
2)Small size: 21.5*14.6*6.5mm(not including antenna)
3)Super light: 2.4g(including antenna)
4)Working voltage:3.7~8.4V
5)High performance CPU enhance exactness control feeling
6)4 channel support
7)Added failsafe function
8)Ideal for any micro RC racing chassis

1)Modulation:Compatible all Kyosho FHSS
2)Small size:   19*12mm(not including antenna)
3)Super light: 2g(including antenna)
4)Working voltage:3.7~8.4V
5)High performance CPU enhance exactness control feeling
6)4 channel support
7)Added failsafe function
8)Ideal for any micro RC racing chassis

1)Modulation:Compatible KYOSHO 2.4GHz ASF
2)Small size:   21.5*14.6*6.5mm
3)Super light: 2.4g(including antenna)
4)Working voltage:3.7~8.4V
5)High performance CPU enhance exactness control feeling

Features
1)Modulation:Compatible FUTABA SFHSS
2)Small size: 21.5*14.6*6.5mm(not including antenna)
3)Super light: 2.4g(including antenna)
4)Working voltage:3.7~8.4V
5)High performance CPU enhance exactness control feeling
