V-LINE-FULL MANUAL

NEXX RACING V-line Front Suspension system is designed with innovative features such as quick adjustable caster, quick adjustable camber, adjustable ride height…. It makes the Mini-Z looks much like a real car, not only fast but also stable, better cornering and better suspension overall. With locknuts and kingpins, V-LINE is designed to minimize most of the play resulting very smooth performance. The V-LINE suspension systems fits only Mini-Z MR03 wide base models and also fits PN 2.5 Chassis. For easy assembly, we pre-install the V-LINE suspension system at factory so it’s very easy and fast to assembly it on the Mini-Z.

COLOR: ORANGE

V-LINE SUSPENSION SYSTEM FEATURES

• V- line suspension is designed with 2 V-shaped suspension forks to bring you a cool suspension system·
• Same width as stock. (MR02/ MR03 PNR2.5W Chassis width)·
• Suspension movement use ball joints instead of sliding knuckle and locknut easy adjustment play between knuckle and upper arm make joints will not pop out even during hard collision.·
• Adjustable camber from 0-3⁰ degrees with 4 position eccentric shaft with easy operation·
• Quick adjustable caster by caster bar from 0-1.9⁰ ·
• Both 0⁰ and 1⁰ lower A arms provided to facilitate suspension setup·
• Ride height adjustment with turn of a screw·
• All 3 tie rods 0⁰, 0.5⁰, 1⁰ included ·
• High quality Precision CNC Swiss 7075 aluminum

V-LINE-FULL MANUAL

NEXX RACING V-line Front Suspension system is designed with innovative features such as quick adjustable caster, quick adjustable camber, adjustable ride height…. It makes the Mini-Z looks much like a real car, not only fast but also stable, better cornering and better suspension overall. With locknuts and kingpins, V-LINE is designed to minimize most of the play resulting very smooth performance. The V-LINE suspension systems fits only Mini-Z MR03 wide base models and also fits PN 2.5 Chassis. For easy assembly, we pre-install the V-LINE suspension system at factory so it’s very easy and fast to assembly it on the Mini-Z.

COLOR: RED

V-LINE SUSPENSION SYSTEM FEATURES

• V- line suspension is designed with 2 V-shaped suspension forks to bring you a cool suspension system·
• Same width as stock. (MR02/ MR03 PNR2.5W Chassis width)·
• Suspension movement use ball joints instead of sliding knuckle and locknut easy adjustment play between knuckle and upper arm make joints will not pop out even during hard collision.·
• Adjustable camber from 0-3⁰ degrees with 4 position eccentric shaft with easy operation·
• Quick adjustable caster by caster bar from 0-1.9⁰ ·
• Both 0⁰ and 1⁰ lower A arms provided to facilitate suspension setup·
• Ride height adjustment with turn of a screw·
• All 3 tie rods 0⁰, 0.5⁰, 1⁰ included ·
• High quality Precision CNC Swiss 7075 aluminum

Precision CNC Damper Post

Dimension: diameter = 3.19mm, length = 10mm

Compatible with all all NEXX Racing motor mounts and all springs on the market

Quantity: 1pc

Motor mount is not included.

High quality carbon fiber T-plate for Kyosho Mini-Z MM chassis

Strength #2

We provide 4 levels of strength starting lowest strength #2 to highest strength #5.

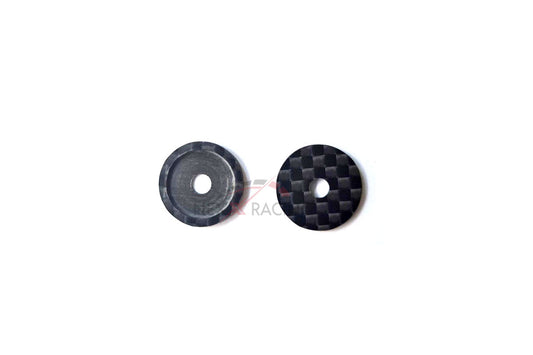

High quality carbon fiber Damper Disks (2pcs)

Include four sets (8pcs) of different hardness Springs for V-Line Suspension System, each hardness comes with different colors.

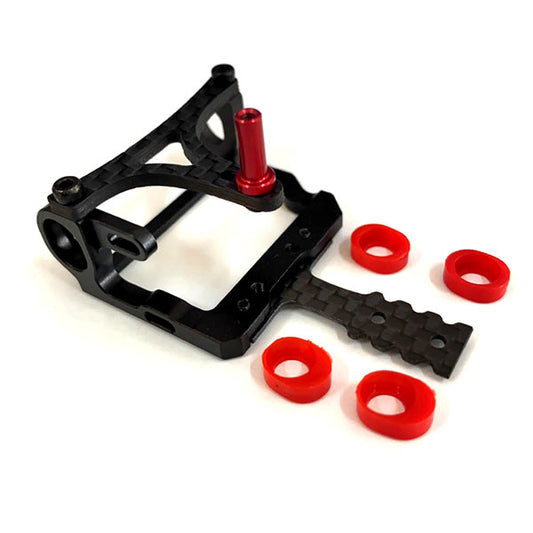

NX-060 NEXX Racing Precision CNC 7075 Square Motor mount  for 98-102 LM (BLACK)

Precision CNC Damper Post

Dimension: diameter = 3.19mm, length = 10mm

Compatible with all all NEXX Racing motor mounts and all springs on the market

Quantity: 1pc

DESCRIPTION

New NEXX RACING precision CNC SWISS aluminum 7075 T6 motor mount is designed to replace stock plastic Kyosho Mini-Z motor mount and to support round brushless motors. It is designed for MR-03MMLM/ MR02MMLM/015 MMLM (wheelbase 98mm to 102mm LM). NEXX Racing motor mount is very light weight even more than 20% lighter than plastic version, yet very strong, made from aerospace aluminum 7075 T6

Specifications:

Weight: 5.4g (without T-plate)

Designed for Kyosho Mini-Z 98 and 102mm LM chassis ( 98mm to 102mm wheelbase LM ), 15mm round diameter brushless motors (Rocket, Ensotech, PN Racing, GL Racing, Atomic brushless motors ….)

Features:

Lowest CG motor mount on the market

The new motor mount is designed for the Mini-Z brushless motors. A lot of hours of engineering have been put into this motor to lower the C.G to lowest possible. You cannot go lower than this.

Lightest motor mount on the market

Besides being the lowest CG motor mount on the market, it is also the lightest weight motor mount on the market with just 5.1g in weight with carbon fiber T-plate and screws and only 5.4g without the carbon fiber T-plate, more than 20% lighter than stock plastic motor mount. To achieve this milestone, we have to machine the motor mount from a block of billet SWISS 7075 aluminum to minimize the number of parts, resulting the lightest weight possible.

Innovative slot design to allow easy adjusting gear mesh

Adjusting gear mesh is not always an easy job, however with NEXX innovative method of adjusting the gear mesh, it’s very simple, fool-proof one screw driver operation.

Innovative carbon support design

NEXX solves the problem of motors being ejected from crashes by a new method of lockup and hold the motor in secured position so that in hardest crashs, the motor cannot be ejected from the chassis.

Free carbon fiber T-plate

NEXX Racing motor mount also comes with a free high quality carbon fiber #5 T-plate. Free of charge

Free alu 7075-T6 damper posts

NEXX Racing motor mount also comes with alu damper posts free of charge.

Easy center shock height adjustment

NEXX Racing motor mount offers the ability to adjust the height of center shock.

The package includes:

1 x Precision CNC SWISS 7075 T6 aluminum motor mount

4 x eccentric bearing holders to allow height adjustment of the motor mount.

1 x alu damper post

1 x carbon fiber T-plate #5 (strongest)

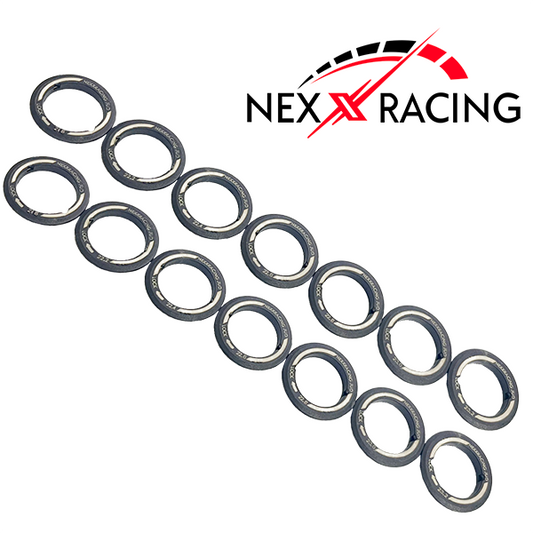

NX-574 Alu Chassis Weight Plates – Precision Tuning Made Simple
Dial in the perfect balance. Race with confidence.

Fine-tune your RC28 with ultimate precision using the NX-574 Alu Chassis Weight Plates. Engineered for racers who demand fine control over balance and handling, this upgrade delivers subtle yet impactful tuning adjustments for any track condition.

The set includes 6 ultra-light aluminum inserts, each weighing just 0.6g—a total of 3.6g—ideal for micro-level weight distribution without sacrificing speed or agility.

Whether you're chasing more stability or dialing in razor-sharp responsiveness, the NX-574 puts elite-level tuning right at your fingertips.

⚙️ Key Features

• ✅ Set of 6 Ultra-Light Inserts
  Provides precise chassis tuning with nearly invisible weight gain.

• ✅ Just 0.6g Each (3.6g Total)
  Perfect for micro-adjustments in handling and balance without slowing your RC28 down.

• ✅ Optimized for Agility & Responsiveness
  Tailor your setup for peak performance on any surface or track layout.

Light. Tactical. Track-Proven.
The NX-574 is the ultimate tuning tool for racers chasing consistency, control, and victory.
