700506A

700511A

164435

NEW V4 Version

Motor Can

- the all new motor can has bigger and more ventilation holes allowing better heat dispersion thus providing better run time

- front section has evenly spaced mounting screws holes that is compatible and fits for all after market motor holder and chassis

End Cap

- newly designed end cap now comes with side locking screws that firmly secures the end cap and PCB.

Stator

- high temp wires used for longevity

- proprietary wiring producing better speed, torque and smoothness

Changeable armature

New design air vent gets more cooling

High-Temperature wire

15mm diameter motor can, same as normal brushed 130 motors. Fits in all Kyosho, PN, and aftermarket motor mounts.

Fits in all Mini-Z chassis AWD, F1, MR02, MR03, MR04

Much more torque and acceleration than other VE motors.

No loading RPM 22000 on 4.8V, amp draw only 0.28A

Four mounting holes to allow different angles of motor terminals.

Eight venting holes prevent heat buildup.

Can and end bell ball bearing from Japan.

Recommend gear ratio 3.95 to 5.00

Connection M1 to Orange Wire, M2 to Yellow Wire, M3 to Blue Wire

Recommend wire #700122

Replacement endbell screws #183002

PN Racing open box KS1038 - Medium 8.5mm

New design  Machine Cut Pinion
1. 7075 Alloy
2. S3 Design stay on the table
3. Light Weight
4. Hard Coating

Including 0.9mm wrench.

New design  Machine Cut Pinion
1. 7075 Alloy
2. S3 Design stay on the table
3. Light Weight
4. Hard Coating

Including 0.9mm wrench.

MR2055PC53

OFFICIAL PNWC Spur Gear for 2WD Stock class and Super Stock class

For replacement PN Racing Mini-Z Precision Gear Differential Spur Gear

Changing Spur Gear Ratio

1. Loosen Tension Nut to separate side gears.

2. Allow spider gear pins to recess into carrier. Depress with screw driver if necessary as shown by arrows.

3. Remove spur gear.

4. Installation is reverse of removal

800500

For replacement Spindle Shaft with Mini-Z Wheel Adapter for Tire Truer 800500 and 800501

600813

Jomurema Authorized Product

PN Lexan Body Kit 600800K for Mini-Z MR03 and PN 2.5 Chassis

Configurable for 98mm wheelbase.

The body comes unpainted.

0.7mm Version

Requirement:

Kyosho Mini-Z MR-02, MR-03 or PN 2.5W chassis

1/28 2WD, AWD Chassis e.g. GL Atomic

700385

These batteries have a high voltage level under load, with low internal resistance.

Designed for use with 1/28 scale car

Atomic - BZ AMZ FFZ MRZ SZ

GL Racing - GLA GLR GLRGT GLF GLD

RTRC Chassis

Specification

Voltage: 7.4V (2S)

Capacity: 385mAh

Recommend Charge Rate: 0.8A

C-rate: 70C

Cable: 24Awg

Plug: JST-PH

Type: Rectangular

Size: 44.8 x 20 x 11.9mm (Length x Width x Height)

Weight: 19.5g

Pre Owned Team Powers 7000kv Sensored Motor - tested

Pre-Owned Rocket 3500 Sensored Motor - tested

GLR-006

Formula One Open Wheel G-Force - Rare new in box, unassembled

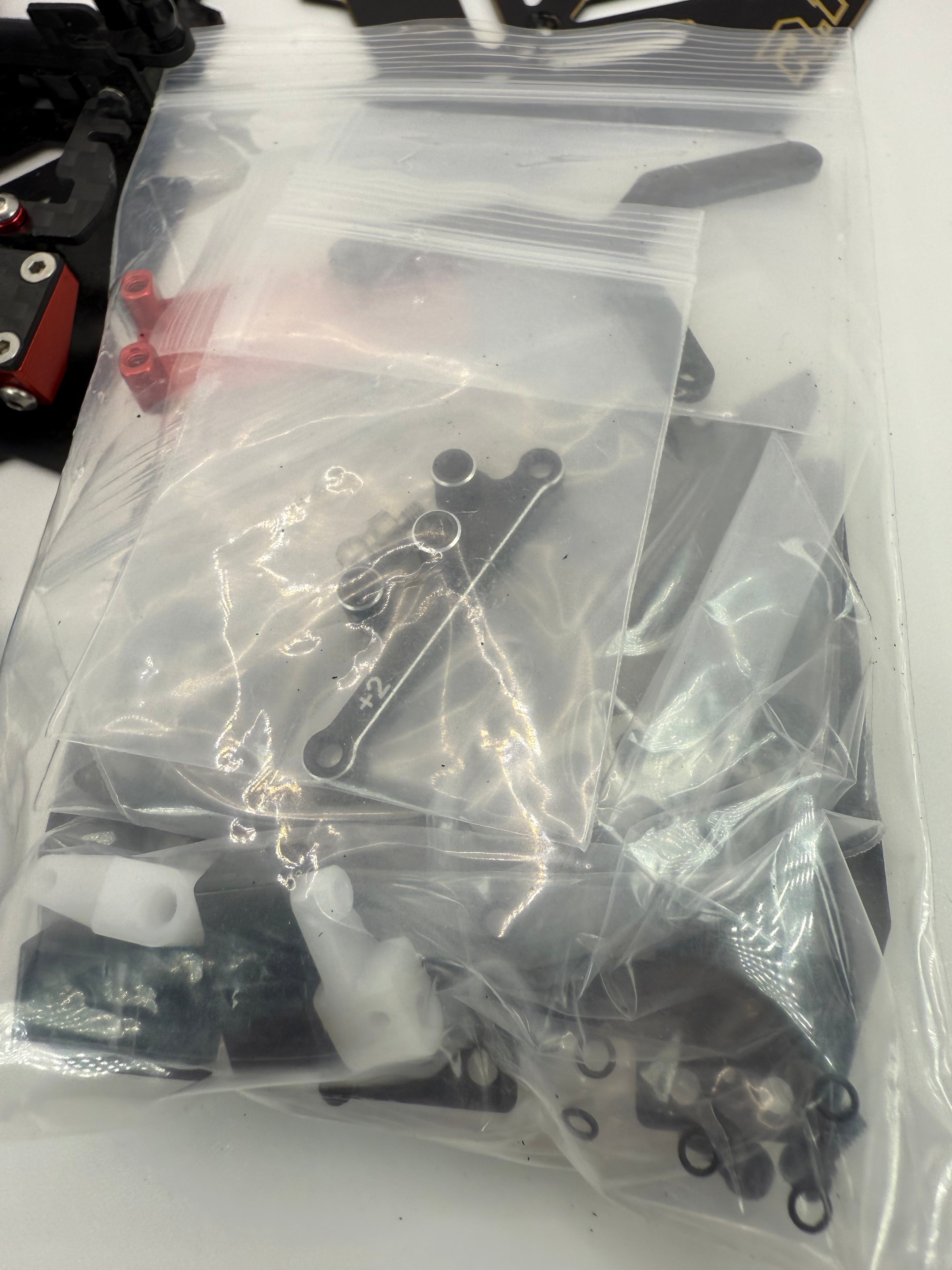

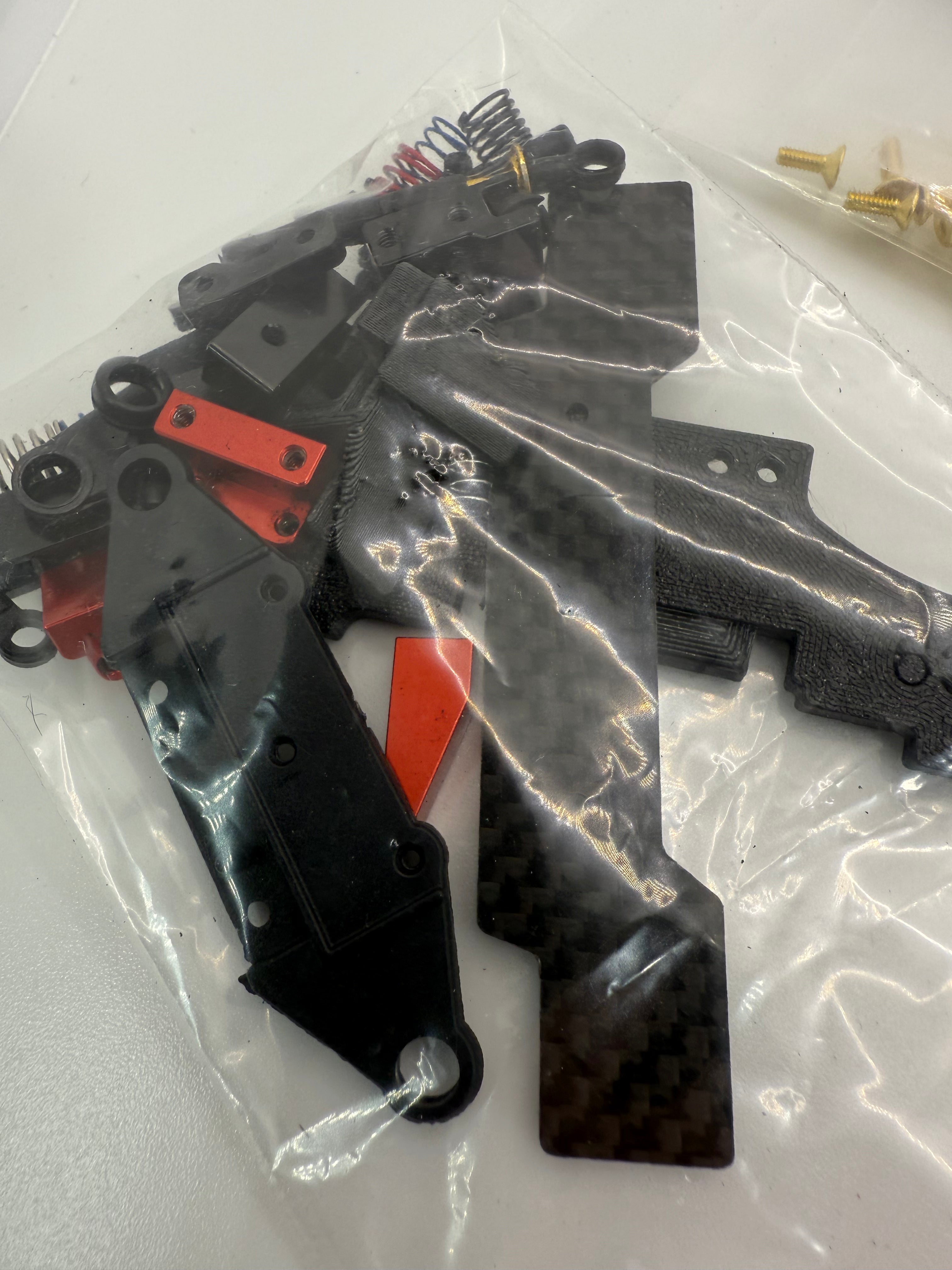

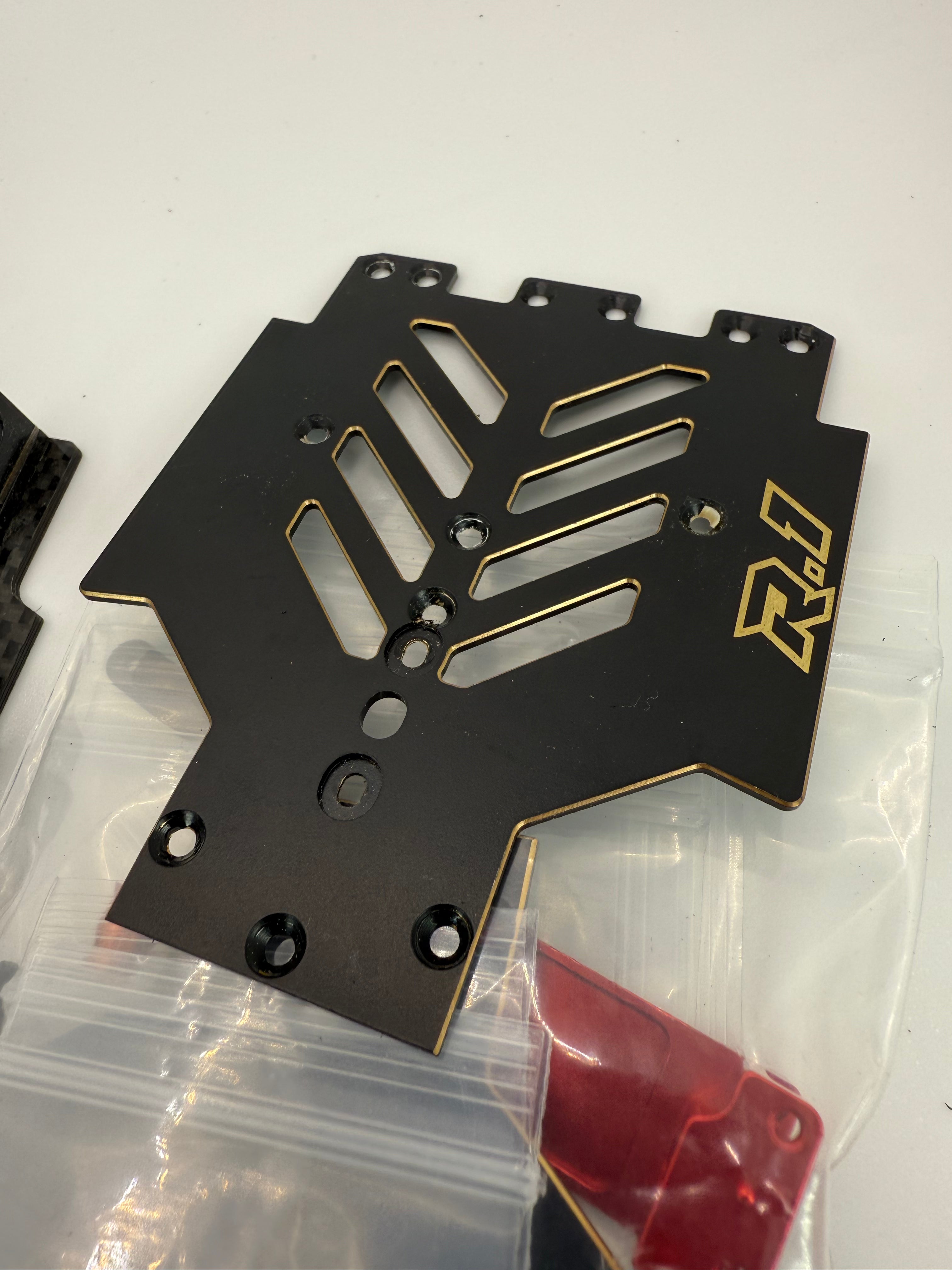

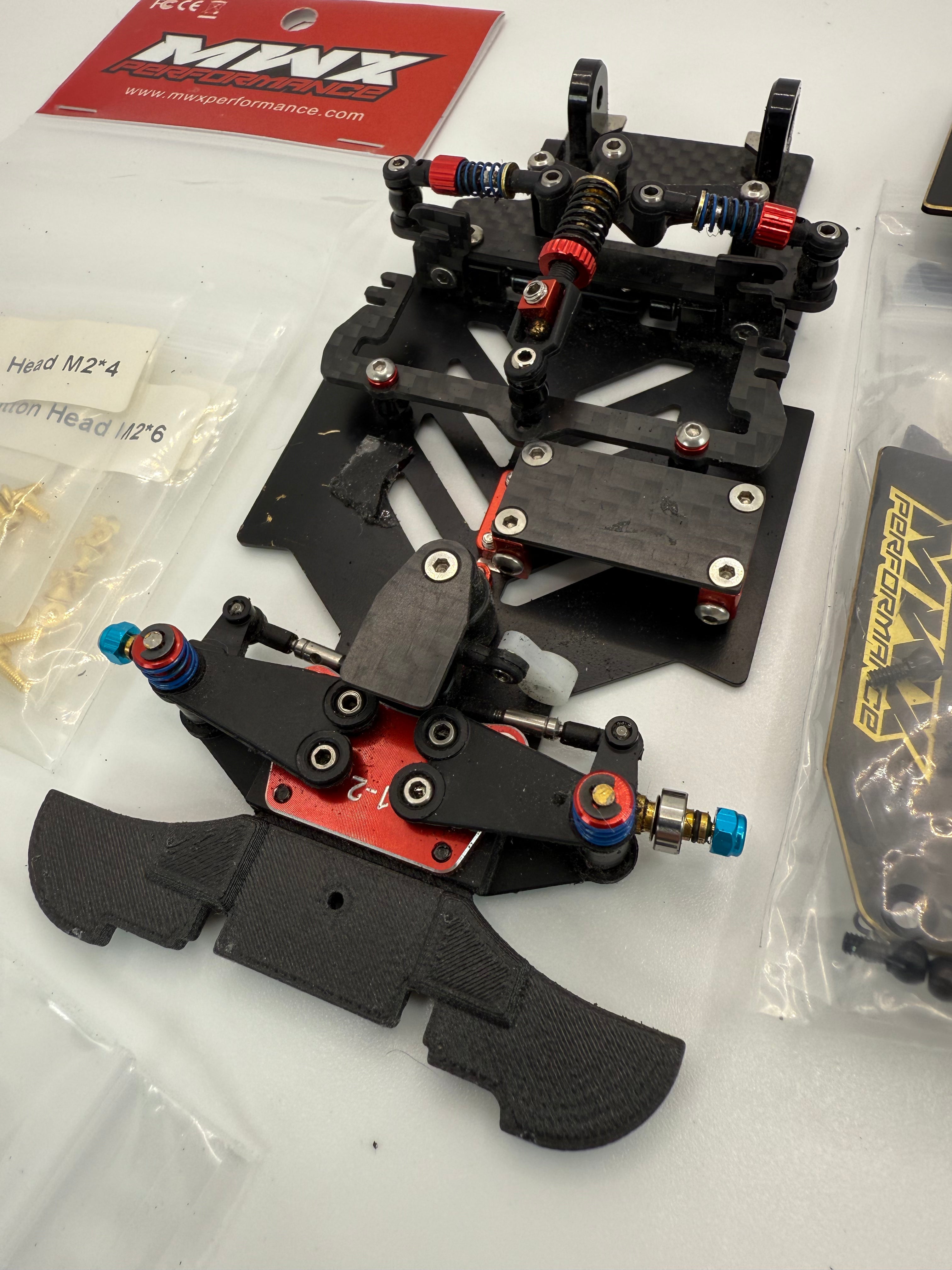

MWX 102mm pre owned chassis V1 with all upgrade parts for V2 conversion
