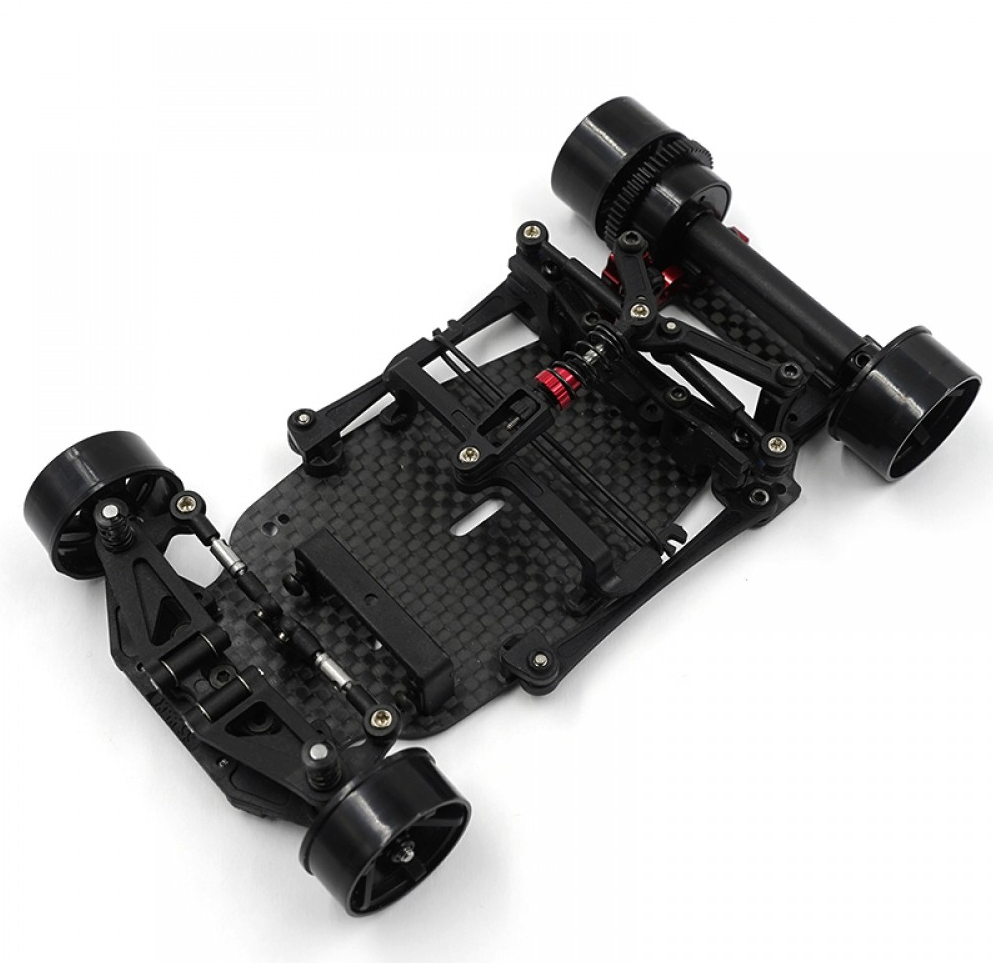

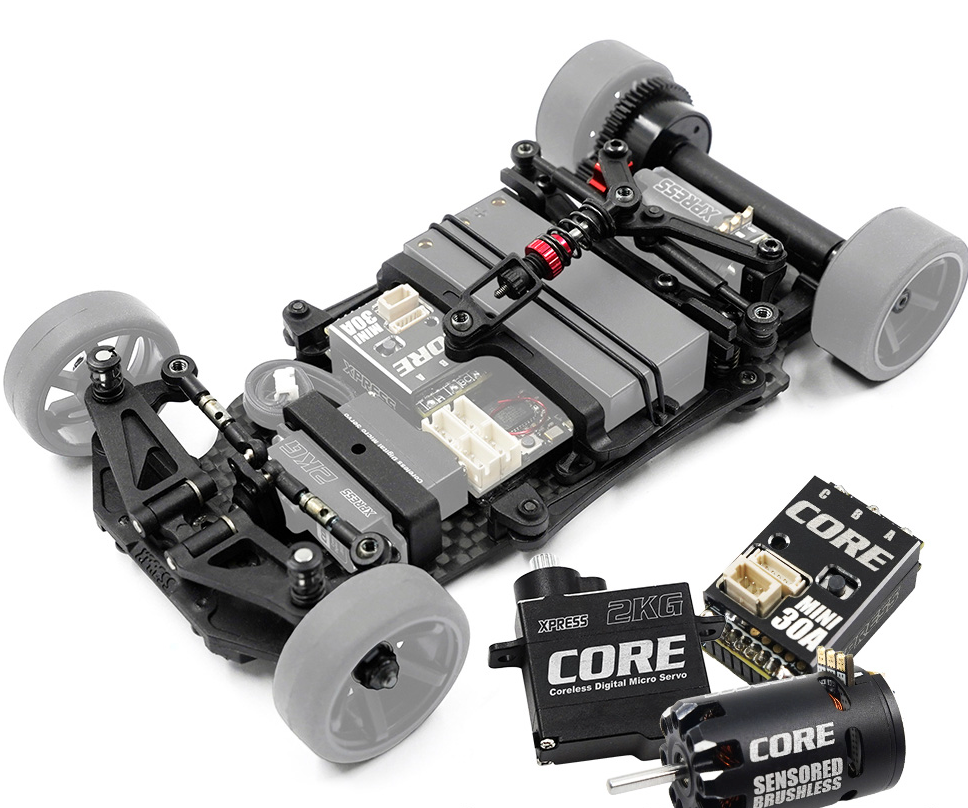

PSP Racing Xpress Pixez Z1 — 1/28 Competition Micro Racing Car Kit

Xpress's entry into the competitive 1/28 scale market, combining race-bred design with an economical price point. Stability and ease of assembly were top priorities throughout the Pixez Z1's development.

Extra-long suspension arms slow camber change through corners, giving drivers easier, more predictable control. The gear differential is simple to build and delivers consistent performance on high-grip RCP tracks. Included body mounts follow the traditional mounting pattern, so bodies install without modification.

Features:

• Bevel Gear Differential

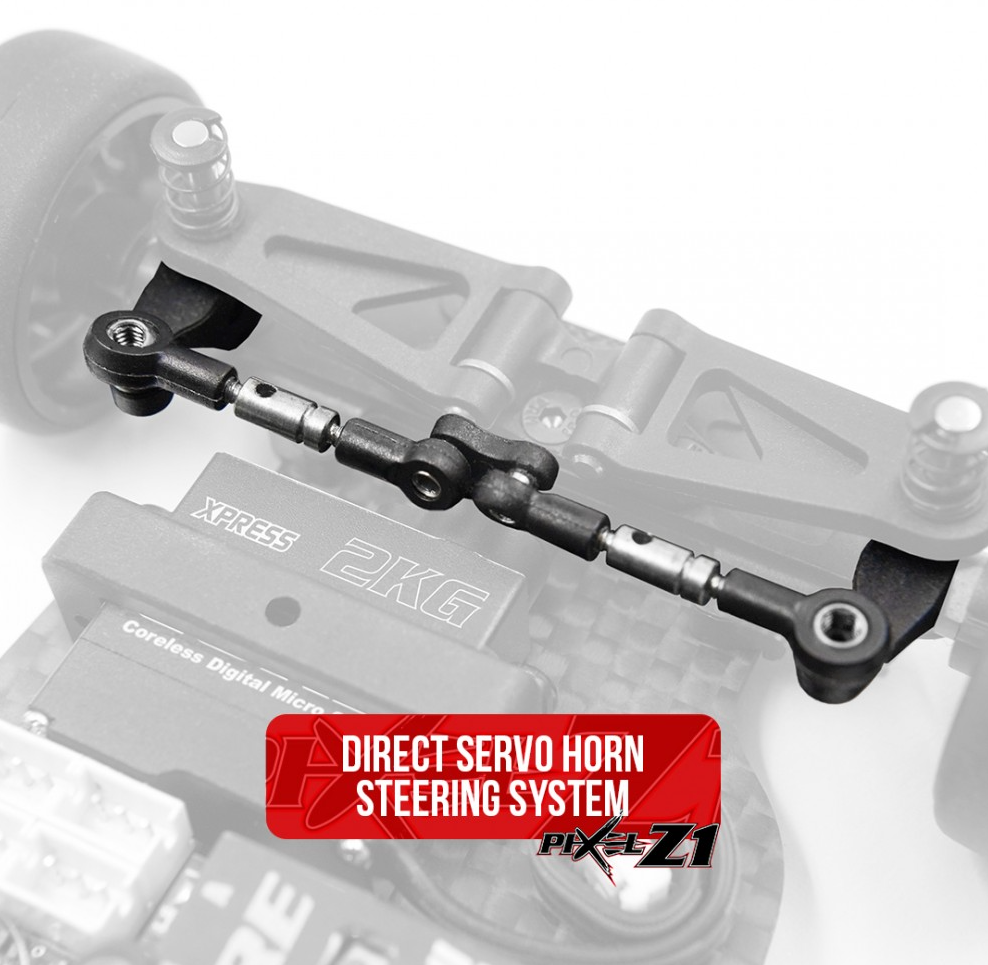

• Direct Servo Horn Steering System
• Grease-Filled Side Dampers
• Extra-Long Upper Suspension Arms

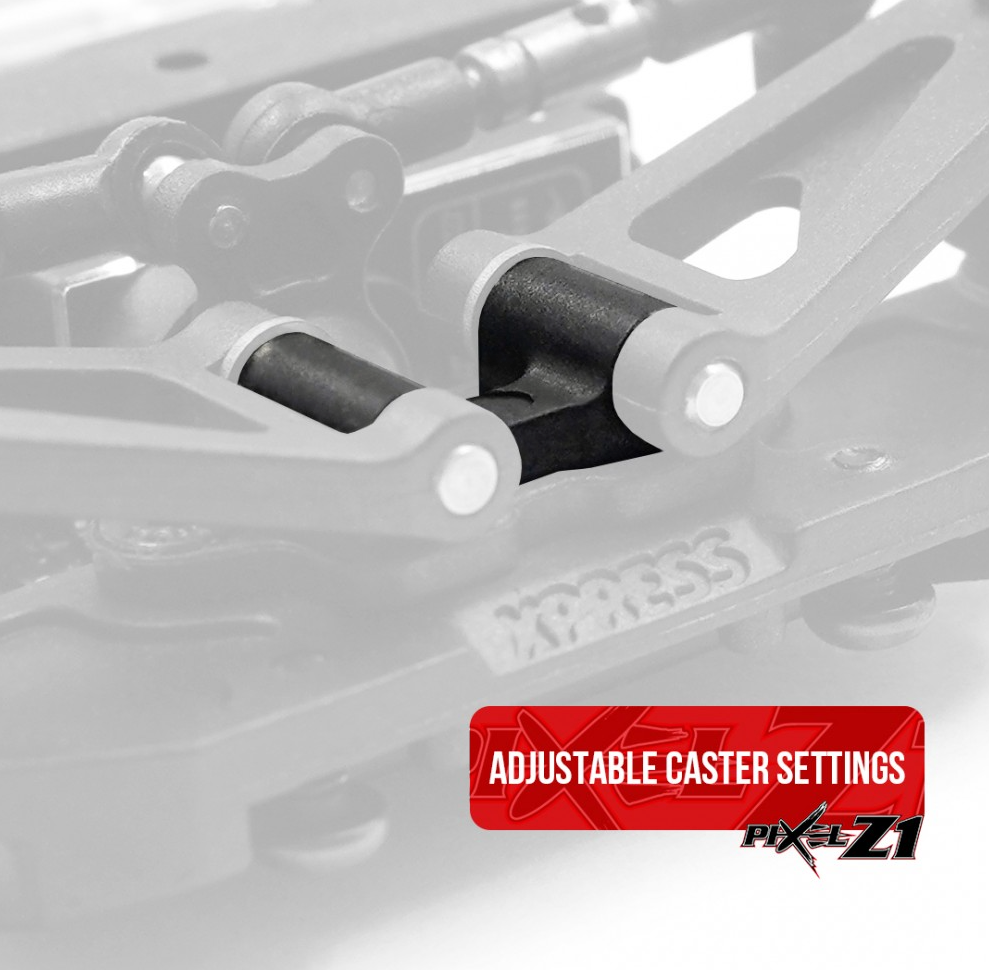

• Adjustable Caster Settings
• Narrow Main Chassis Plate
• Droop-Adjustable Center Damper
• Shim-Adjustable Rear Ride Height
• 21x45mm Battery Compartment

Specifications:

• Wheelbase: 98mm

Includes:

• Pixez Z1 1/28 Competition Micro Racing Car Kit (1 pc)

Required (sold separately):

• ESC
• Motor
• Servo
• Body
• Battery
• Tires

Full aluminum case micro servo for your micro r/c car, comes standard with soft silicon wire.

Feature:

• For: Mini RC 1/24 1/27 1/28
• Case Material: Aluminium
• Gear Material: Titanium
• Motor Type: Coreless

Specification:

• Operating voltage:4.8-8.4V
• Operating speed:                Stall torque:
• 4.8V-0.072sec/60°                4.8V-2.0kgf.cm(28oz-in)
• 6.0V-0.065sec/60°                6.0V-2.2kgf.cm(31oz-in)
• 7.4V-0.055sec/60°                7.4V-2.5kgf.cm(35oz-in)
• 8.4V-0.050sec/60°                8.4V-3.0kgf.cm(42oz-in)
• Output Shaft :20T Φ3.5
• Weight:0.25oz
• Size: 2 x 1.9 x 0.8 cm
• Frequency:1520uS / 333Hz
• Bearing:Metal bearing
• Operating temperature:-15℃~+70℃
• Operating travel :≈180±10°
• Neutral position :1520μsec
• Frequency:1520uS / 333Hz
• Pules width range :500-2500μsec
• Dead band width:2μsec
• Connector wire length:60mm
• Waterproof level:Dust & Water Splash Resistacne

Include:

• Micro Sized Servo (1 pc)
• Servo Horns (3 pcs)
• Screws (3 pcs)

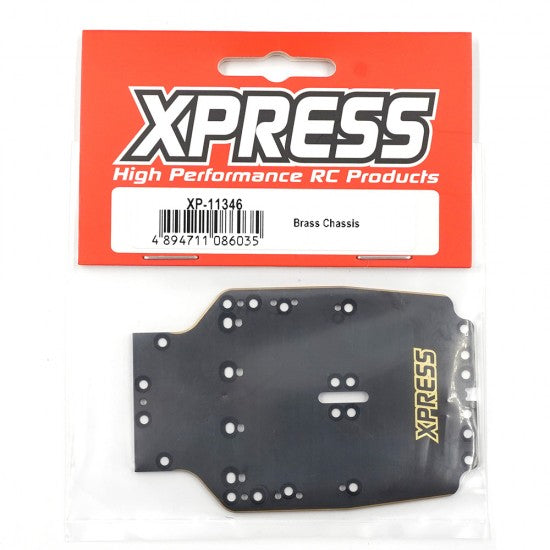

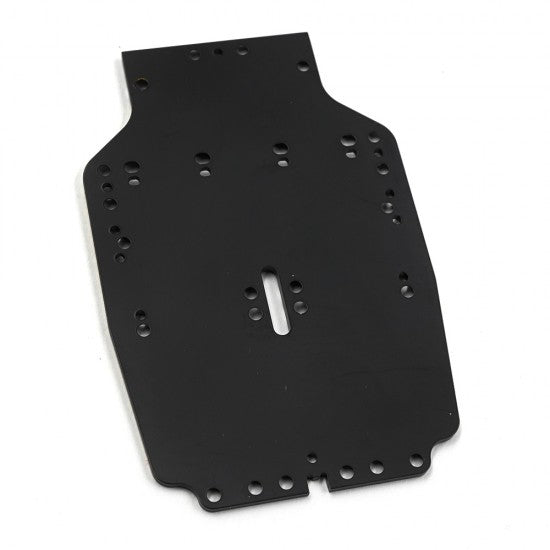

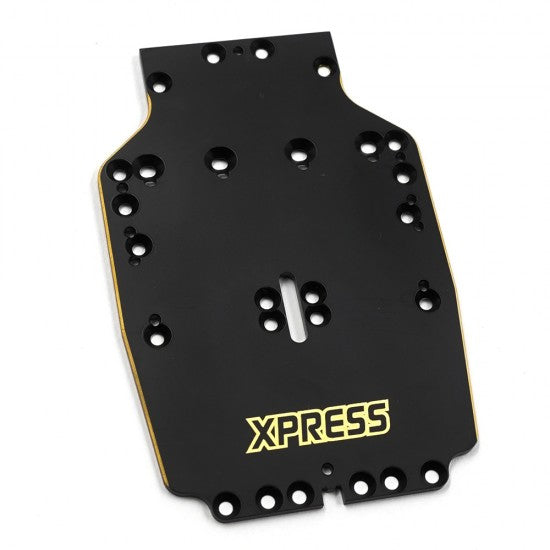

Xpress Pixel Z1 Brass Chassis

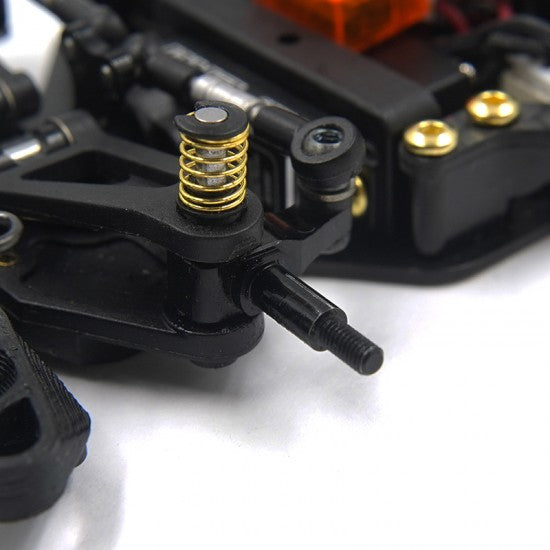

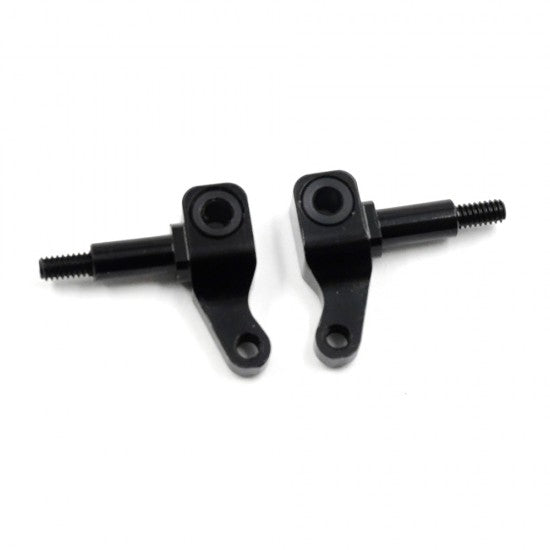

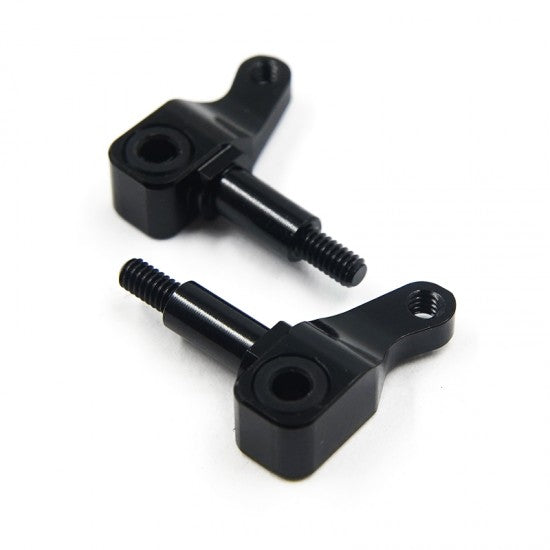

Xpress Pixel Z1 Aluminum Steering Knuckle Axle Set

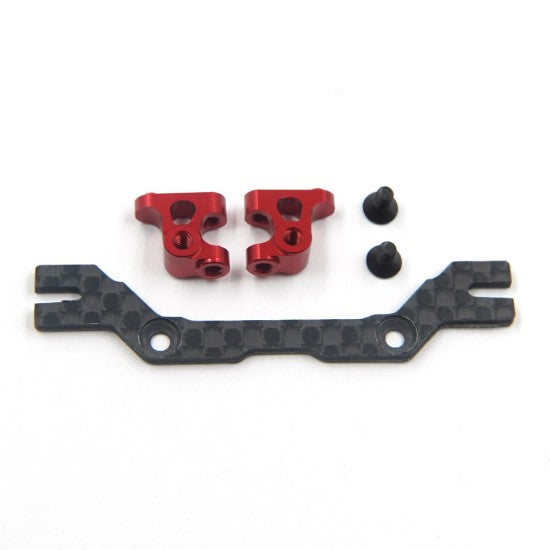

Xpress Pixel Z1 Aluminum L-Clip ABS Body Mount Set

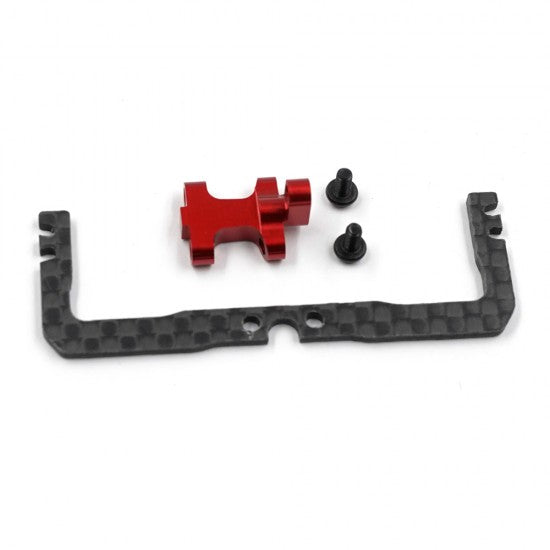

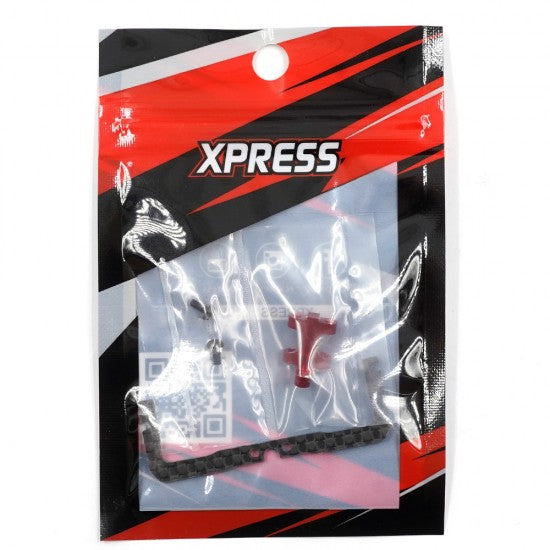

Xpress Pixel Z1 Aluminum Graphite Battery Mount

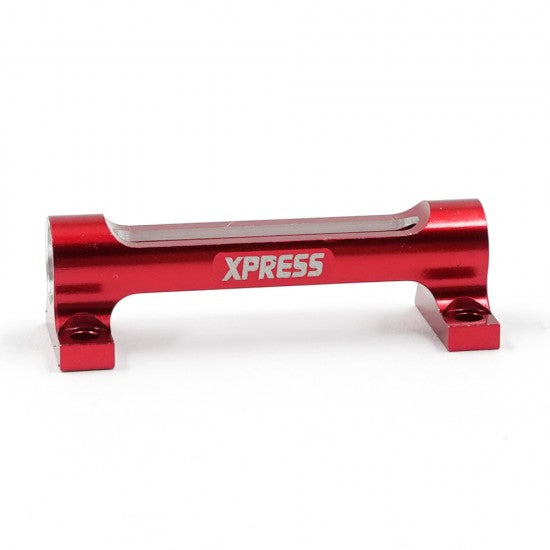

Xpress Pixel Z1 Aluminum Differential Mount

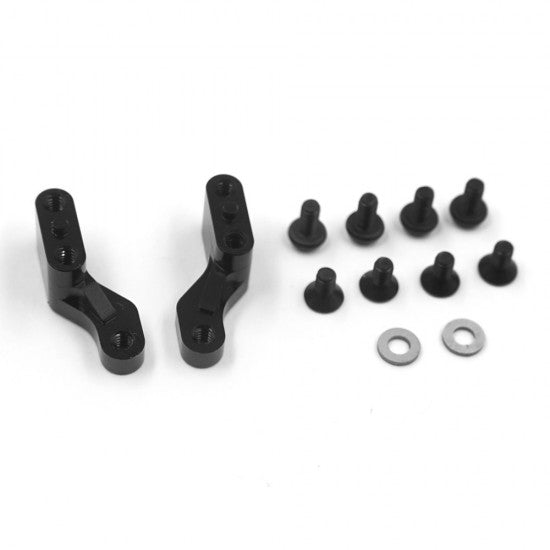

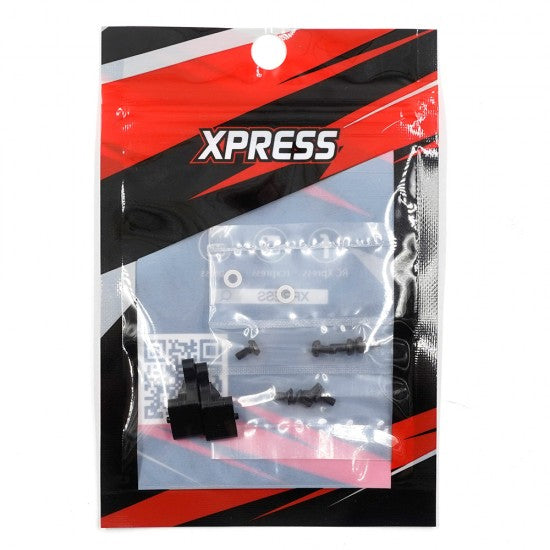

Xpress Pixel Z1 Aluminum Chassis Stiffer

Original replacement part for the Xpress Pixel Z1 micro racing car!

Feature:

• For: Pixel Z1
• Material: Graphite
• Color: Black

Include:

• Graphite Main Chassis Plate (1 pc)

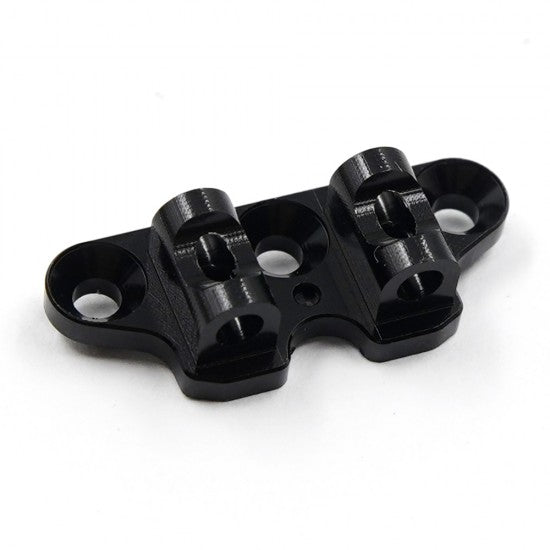

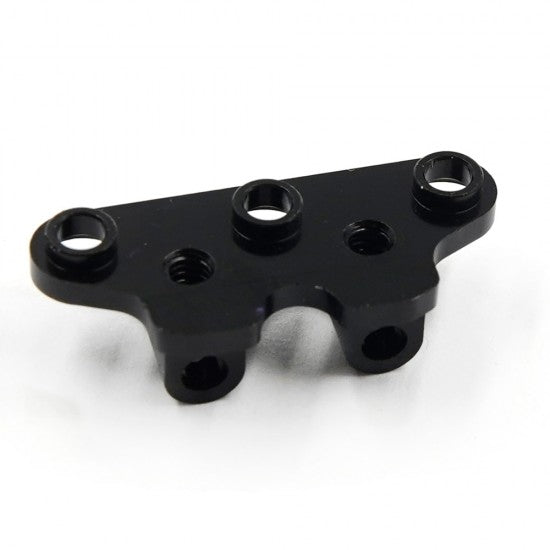

Xpress Pixel Z1 Aluminum Upper Arm Mount -1

Change to these lengthened graphite pieces to convert your Pixel Z1 to 102mm wheelbase!

Feature:

• For: Pixel Z1
• Material: Graphite
• Color: Black

Include:

• Motor Pod Plate (1 pc)
• Center Damper Mounting Plate (1 pc)

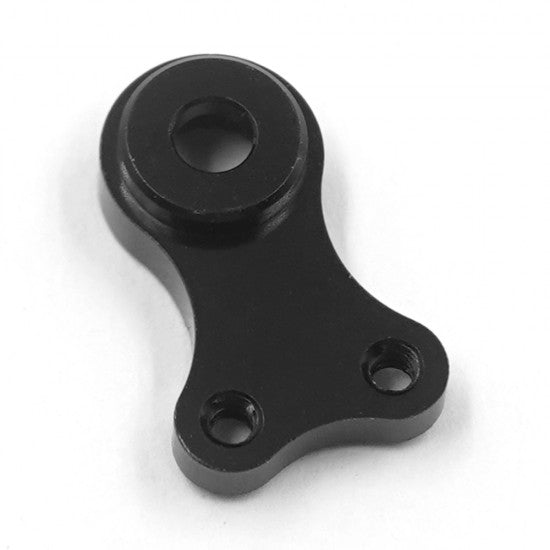

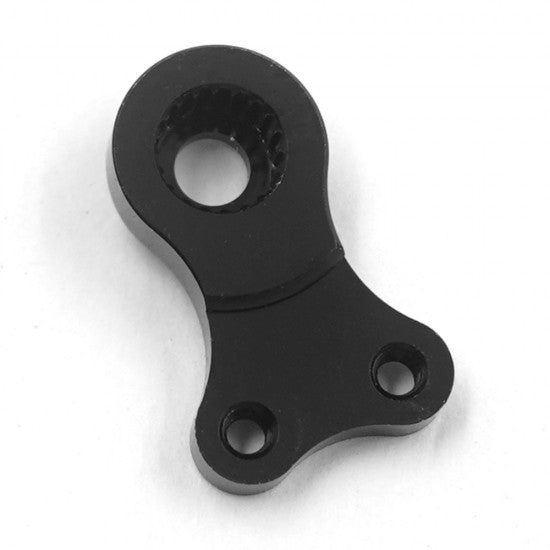

Xpress Pixel Z1 Aluminum Servo Horn

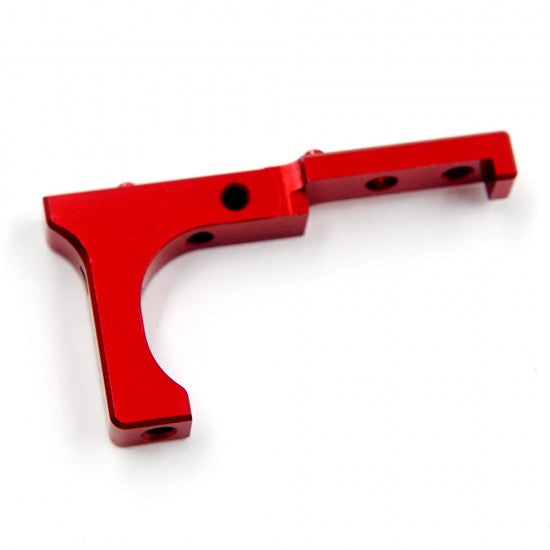

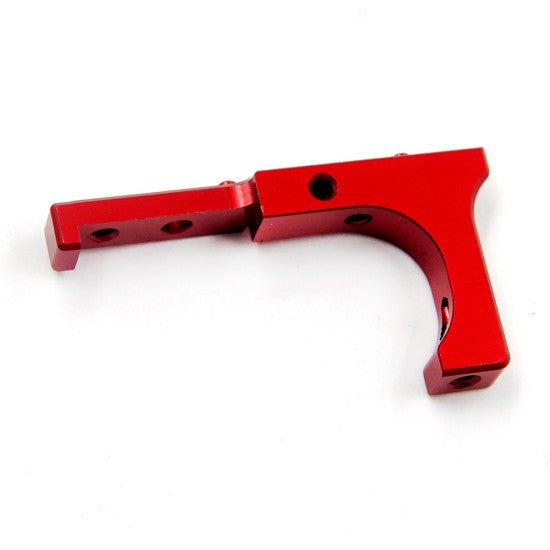

Xpress Pixel Z1 Aluminum Motor Mount B

Original replacement part for the Xpress Pixel Z1 micro racing car!

Feature:

• For: Pixel Z1
• Material: Aluminum
• Color: Red

Include:

• Aluminum Motor Mount (1 pc)

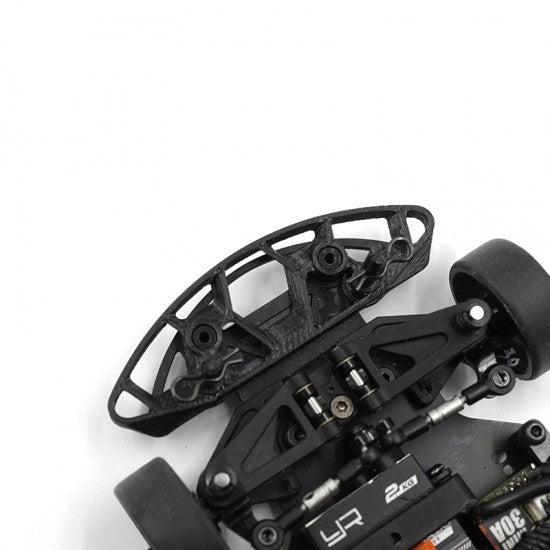

TPU bumper made from soft plastics which allow to absorb impacts reducing damage to your chassis and body!

Feature:

For: Pixel Z1

Material: TPU

Color: Black

Include:

• TPU Bumper (1 pc)

Original replacement part for the Xpress Pixel Z1 micro racing car!

Feature:

• For: Pixel Z1
• Material: Graphite
• Color: Black

Include:

• Graphite Motor Mount Plate (1 pc)

Graphite center upgrade damper mounting plate, increasing suspension responsiveness.

Feature:

• For: Pixel Z1
• Material: Graphite
• Color: Black

Include:

• Graphite Damper Mounting Plate (1 pc)
