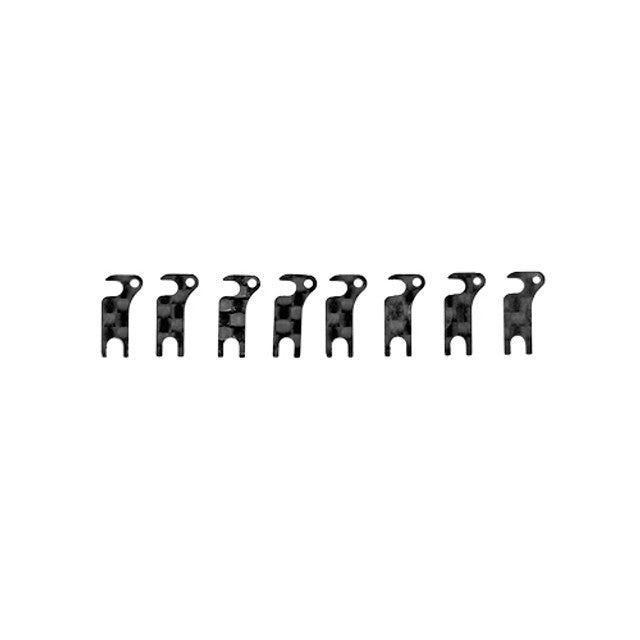

RC28R Ft Axle Carrier Shim Set

RC28R Ft Bearing Set

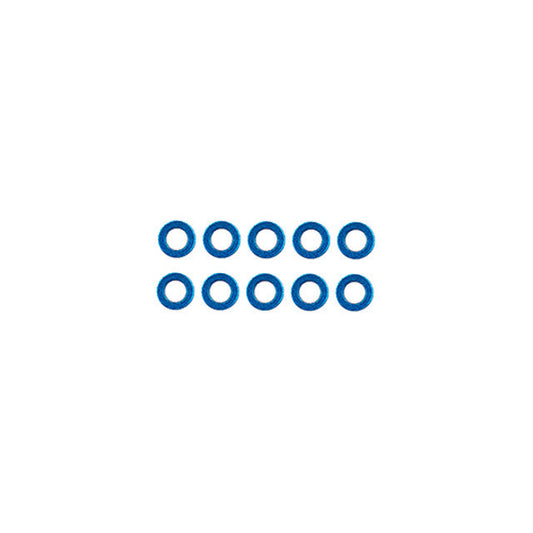

Ballstud Washers, 3.8 X 2.0 X 0.25mm (10pcs)

RC28R Front Bumper And Body Mount Set

RC28R Spur Gear And Differential Cover Set

21643

RC28R Kingpin And Arm Pivot Ball Set

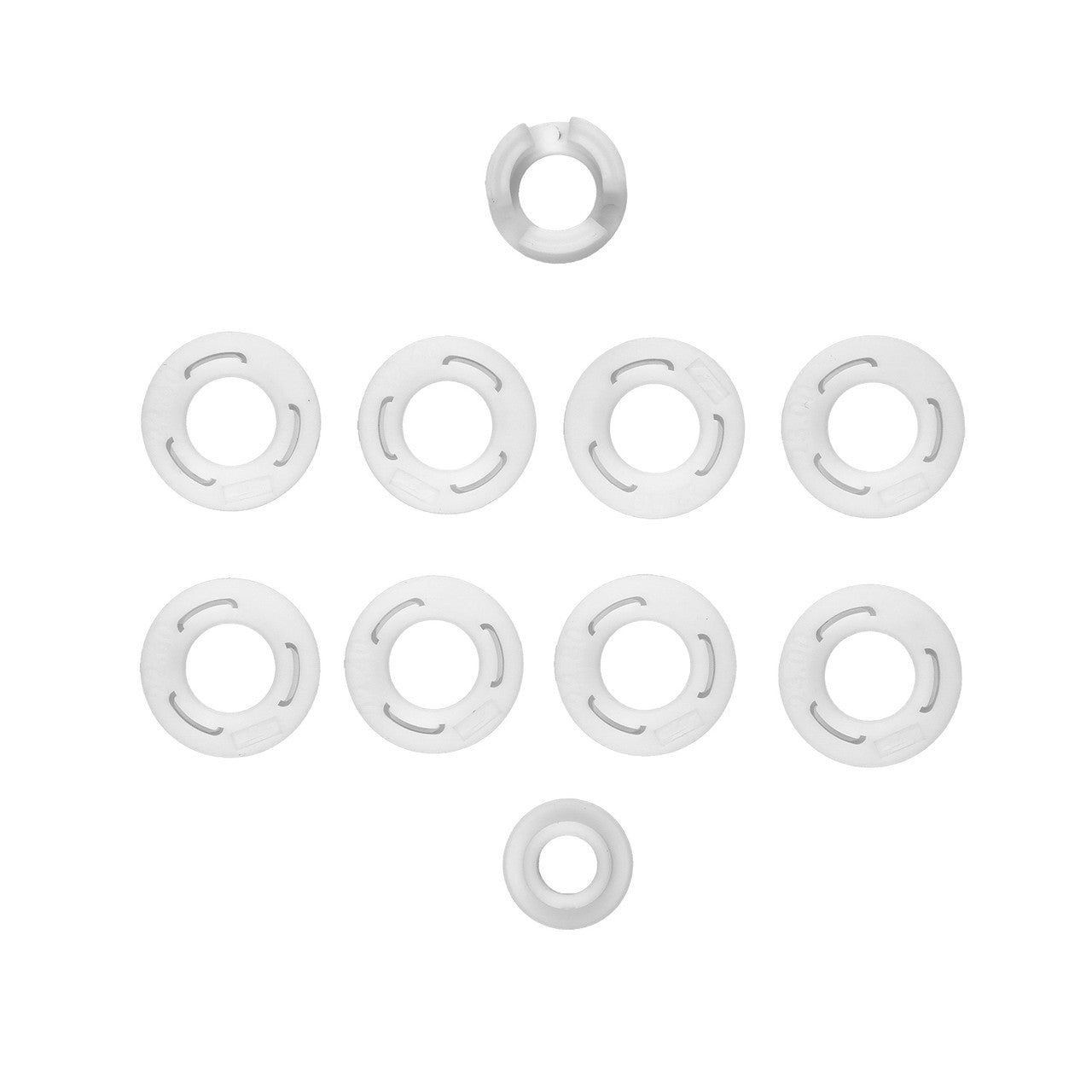

RC28R FT Sidewall Flange Set, White

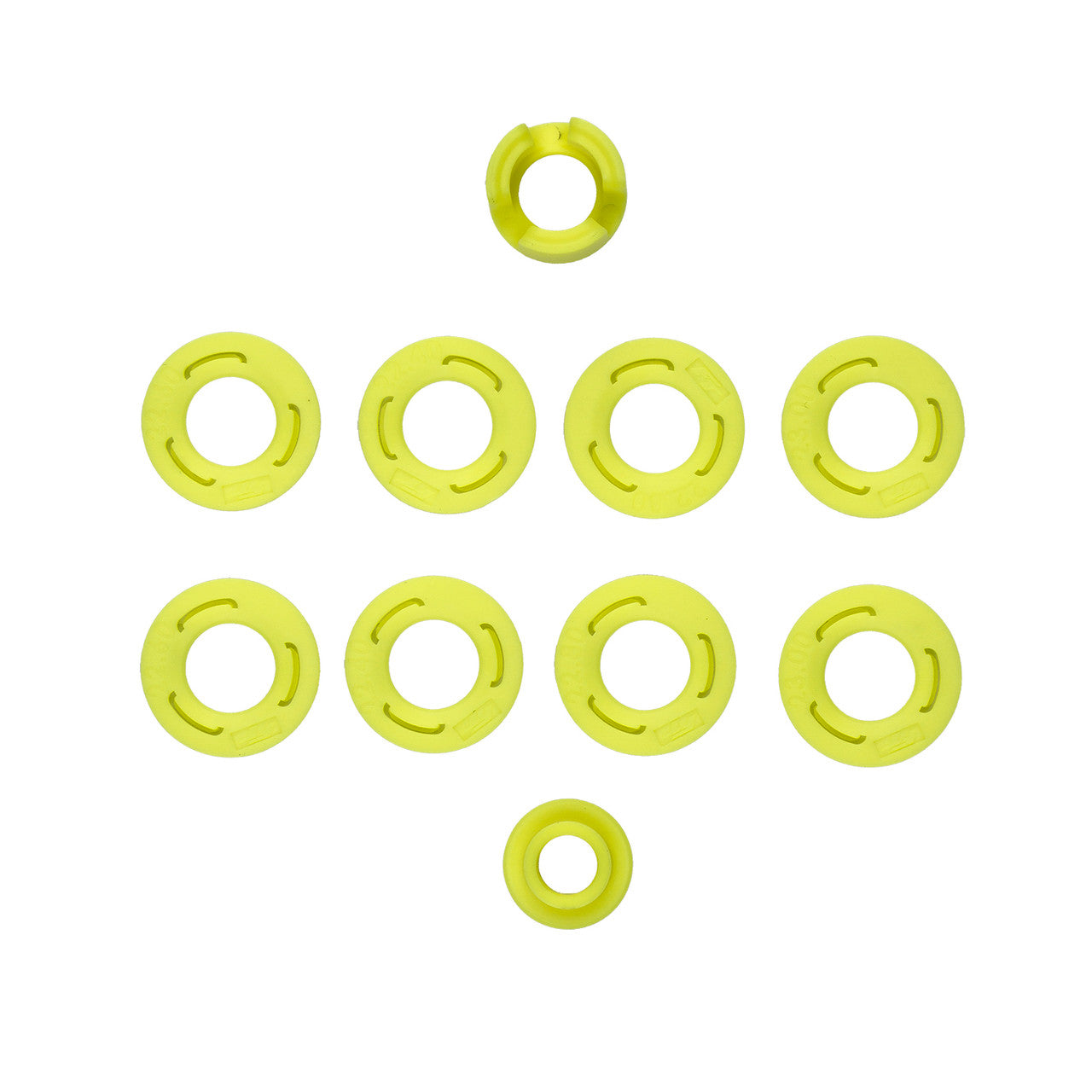

RC28R FT Sidewall Flange Set, Yellow

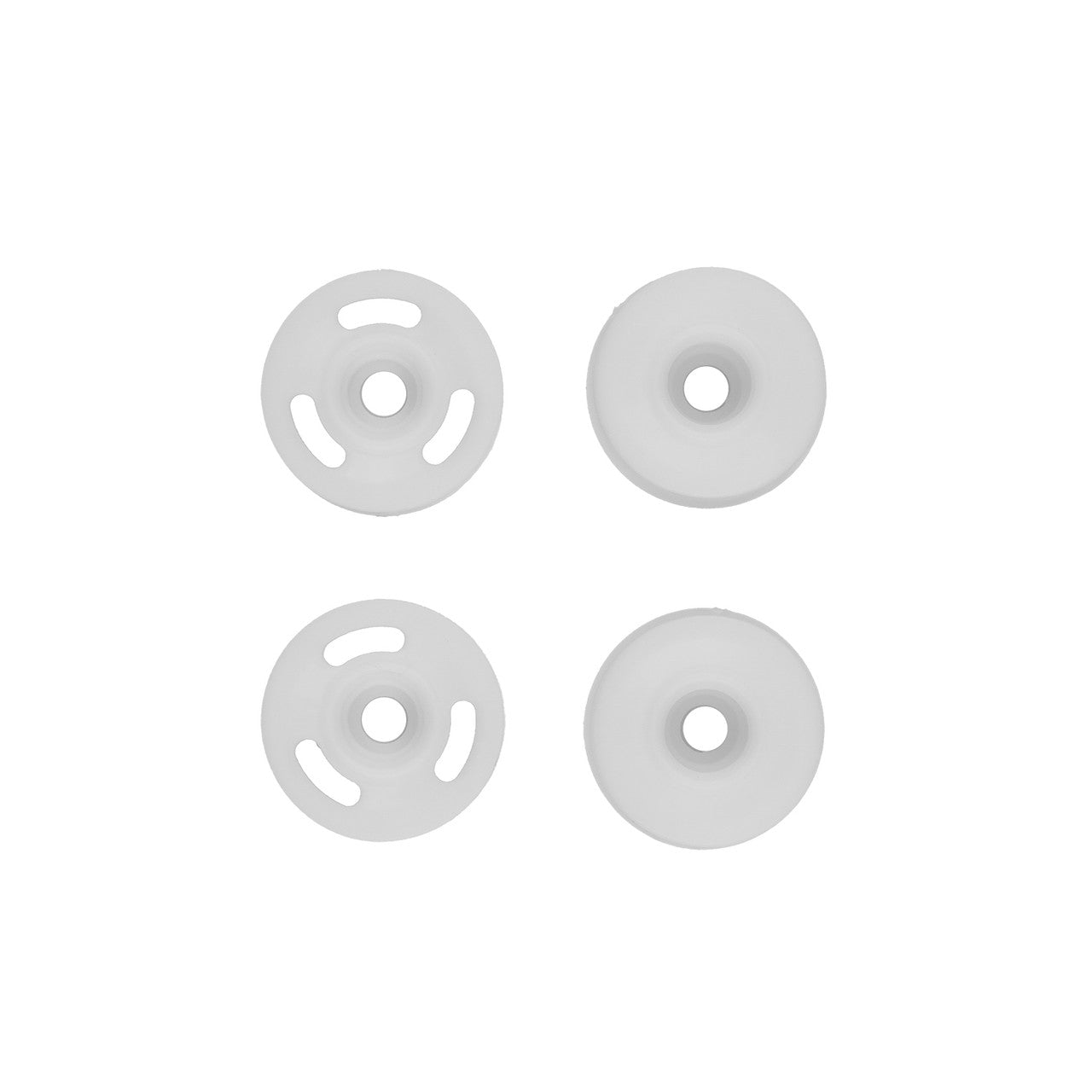

RC28R Wheel Set, White

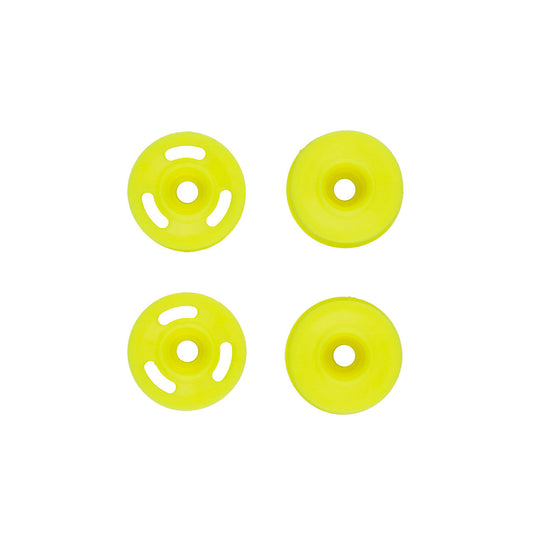

RC28R Wheel Set, Yellow

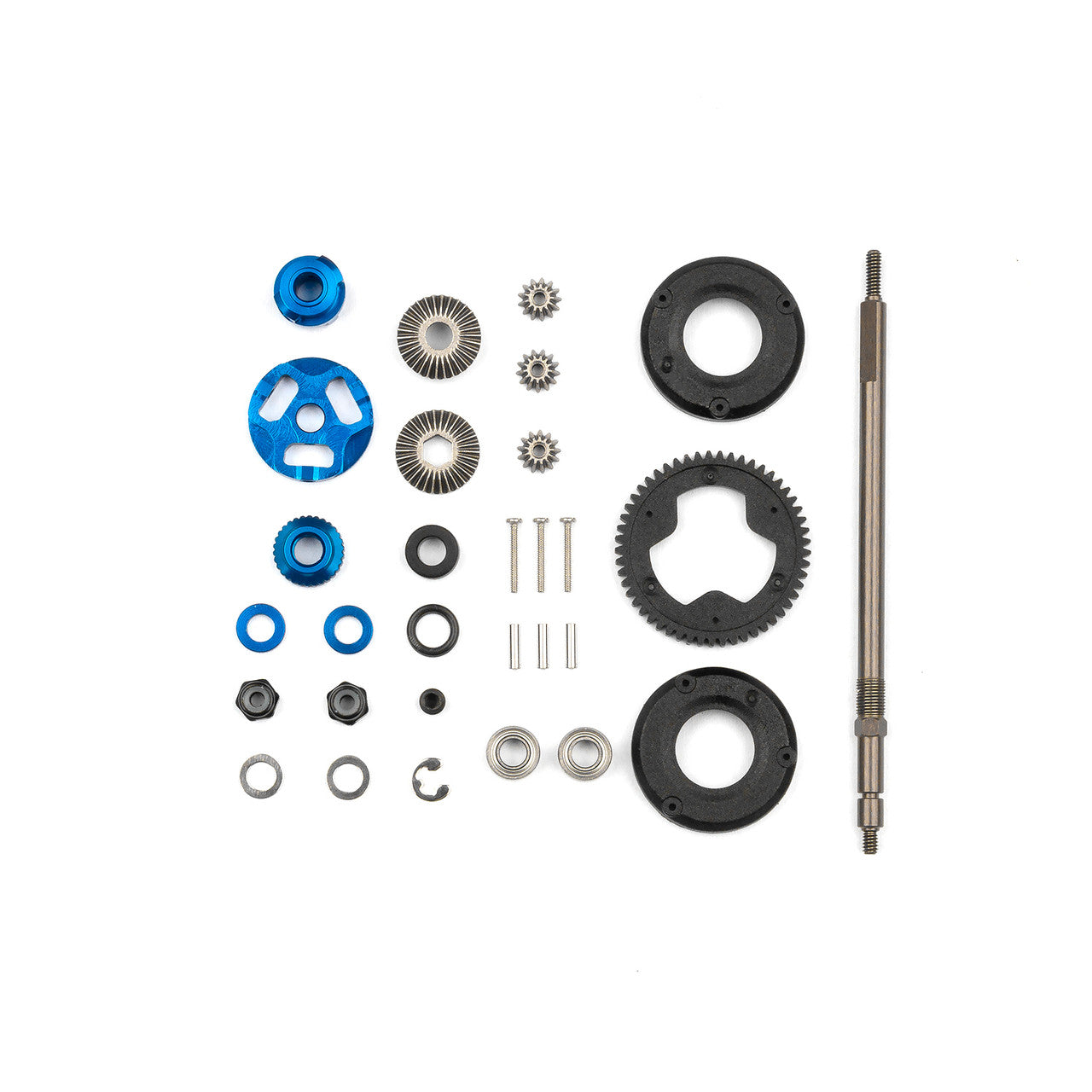

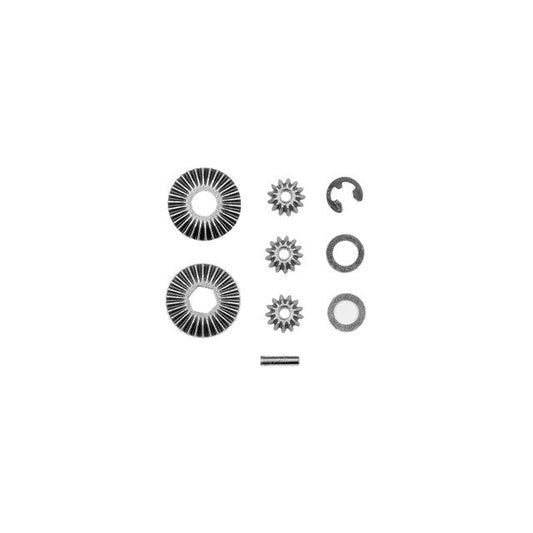

RC28R Gear Differential Set 21642

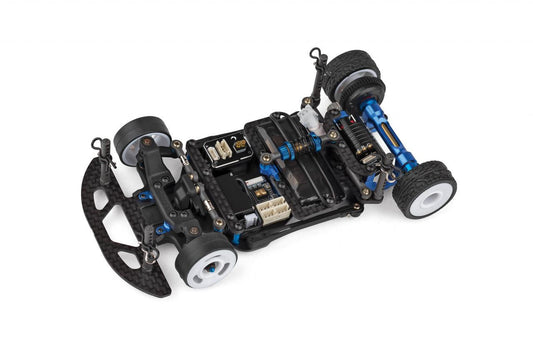

RC28 Team Kit

1:28 Scale 2WD Electric On-Road Competition Kit

Overview

Introducing the Team Associated RC28R Team Kit — a compact, high-performance on-road race car designed with the same AREA 51 engineering precision found in every Team Associated vehicle.

Though small in scale, the RC28R delivers big performance in an easy-to-set-up package. It features a fixed-arm front suspension with optional molded upper arms for fine-tuning caster and camber.

The torsion side links (soft, medium, and hard included) replace the need for side springs, simplifying setup while improving handling in ways traditional springs cannot.

A quick-access battery holder allows battery changes without removing the center shock, and the steel chassis plate provides a low center of gravity for consistent cornering performance.

Key Features

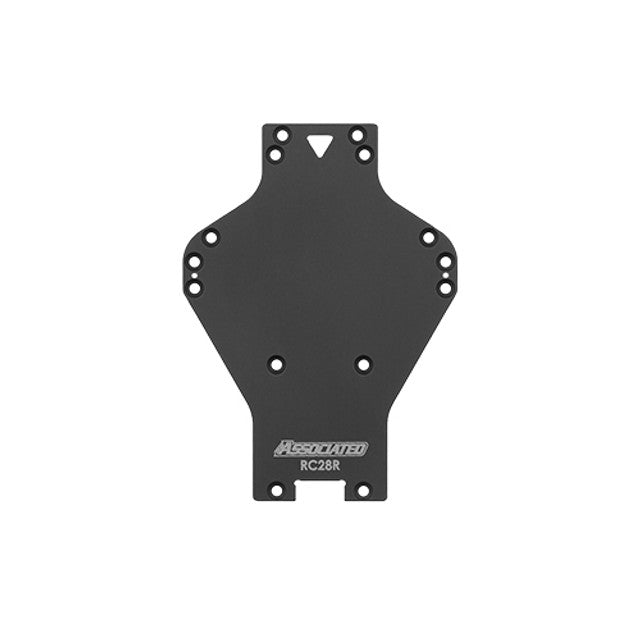

• Steel chassis plate for low center of gravity
• Fixed arm style front end with optional molded upper arms to adjust caster and camber
• Front bulkhead design allows for quick upper arm changes with consistent fitment and position
• Optimized steering geometry with adjustable servo mount to tune Ackermann on the fly
• Easily removable battery holder to access the battery without removing the center shock
• Torsion-style side links act as side springs (soft, medium, and hard options included)
• Adjustable rear pod roll center inserts to tune roll characteristics to grip level
• Optimized roll geometry with side damper tubes
• Threaded aluminum center shock with adjustable droop and spring collar
• Two-piece rear pod with adjustable axle heights for different tire diameters and ride heights using Factory Team carbon fiber shims
• Gear differential included; compatible with other aftermarket options
• Hard plastic and polycarbonate body mounting options included
• White wheels included that fit optional front wheel flanges to tune steering feel
• Universal front bumper included

Not Included

• Body

Recommended Tools & Accessories

• Silicone Shock Fluid (refer to catalog for complete listings)
• Silicone Diff Fluid (refer to catalog for complete listings)
• Body Scissors (AE Part #1737)
• Reamer / Hole Punch
• FT Wrench Set (AE Part #1519)
• Hobby Knife
• Needle Nose Pliers
• Wire Cutters
• Soldering Iron
• Calipers or Precision Ruler
• Drivers: 1.5mm hex, .050” hex, 1.3mm hex, 0.9mm hex, 4.5mm nut, PH00 driver

Built for Performance and Precision

Compact, tunable, and ready to race — the RC28R Team Kit delivers professional-level handling and adjustability in a small-scale package. Perfect for both competition and fun in tight spaces.

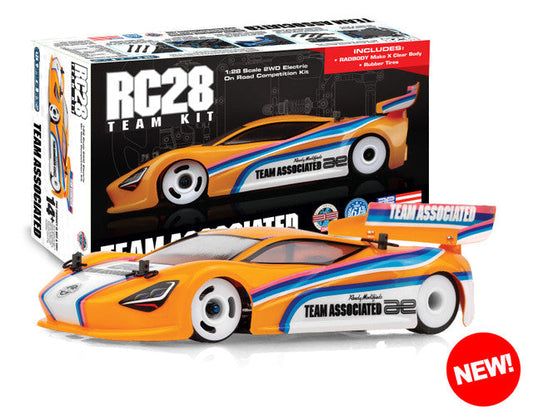

RC28R with Body and Tires Team Kit

1:28 Scale 2WD Electric On-Road Competition Kit

SKU: #20165 + Body and Tires

Overview

Introducing the Team Associated RC28R Team Kit — a compact, high-performance on-road race car designed with the same AREA 51 engineering precision found in every Team Associated product.

Though small in scale, the RC28R delivers big performance in an easy-to-set-up package, perfect for competitive indoor racing or fun in tight spaces.

Key Features

• RADBODY Mako X clear body and tires included

• Fixed-arm front suspension with optional molded upper arms for adjustable caster and camber

• Front bulkhead design allows quick upper arm changes with consistent alignment

• Optimized steering geometry and adjustable servo mount to fine-tune Ackermann

• Steel chassis plate for a low center of gravity

• Quick-access battery holder – remove the battery without disturbing the center shock

• Torsion-style side links replace traditional side springs (soft, medium, and hard options included)

• Adjustable rear pod roll center inserts to tune chassis roll based on grip level

• Side damper tubes for optimized roll geometry

• Threaded aluminum center shock with adjustable droop and spring collar

• Two-piece rear pod with adjustable axle heights using Factory Team carbon fiber shims

• Gear differential included, compatible with various aftermarket options

• Hard plastic and polycarbonate body mount options included

• White wheels compatible with optional front wheel flanges to fine-tune steering response

• Universal front bumper included

• Backed by Team Associated’s quality, distribution, support, and customer service

Tuning & Setup Highlights

• Pitch, roll, and droop can be finely adjusted via the center shock and damper system

• Easily change axle height and ride height for different tire diameters

• Tune caster, camber, and Ackermann for precise steering feel

Recommended Tools & Accessories

To assemble and maintain your RC28R, you may need:

• Silicone Shock Fluid (Refer to Team Associated catalog)

• Silicone Diff Fluid (Refer to Team Associated catalog)

• Body Scissors (AE Part #1737)

• Reamer / Hole Punch

• FT Wrench Set (AE Part #1519)

• Hobby Knife

• Needle Nose Pliers

• Wire Cutters

• Soldering Iron

• Calipers or Precision Ruler

• Drivers:

  • 1.5mm hex

  • .050” hex

  • 1.3mm hex

  • 0.9mm hex

  • 4.5mm nut driver

  • PH00 driver

Specifications

• Scale: 1:28

• Drive: 2WD Electric On-Road

• Chassis: Steel plate with carbon fiber shims

• Suspension: Fixed-arm front / torsion side links rear

• Shock: Threaded aluminum center shock

• Body: RADBODY Mako X clear

• Wheels: White (tunable with front flanges)

Compact. Tunable. Built to race.
The RC28R Team Kit delivers professional-level performance in a small-scale package — designed for racers who demand precision, adjustability, and fun.

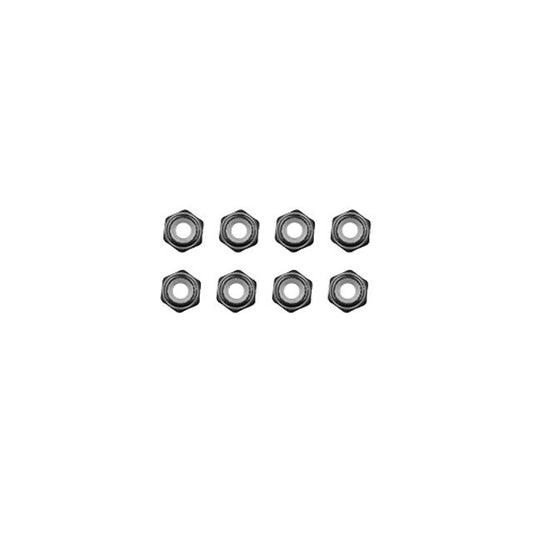

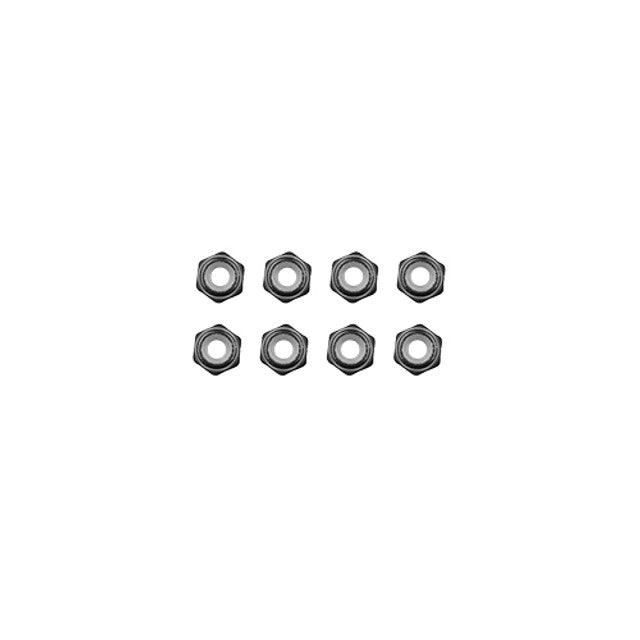

M2 Locknuts, Black Aluminum (8pcs)
