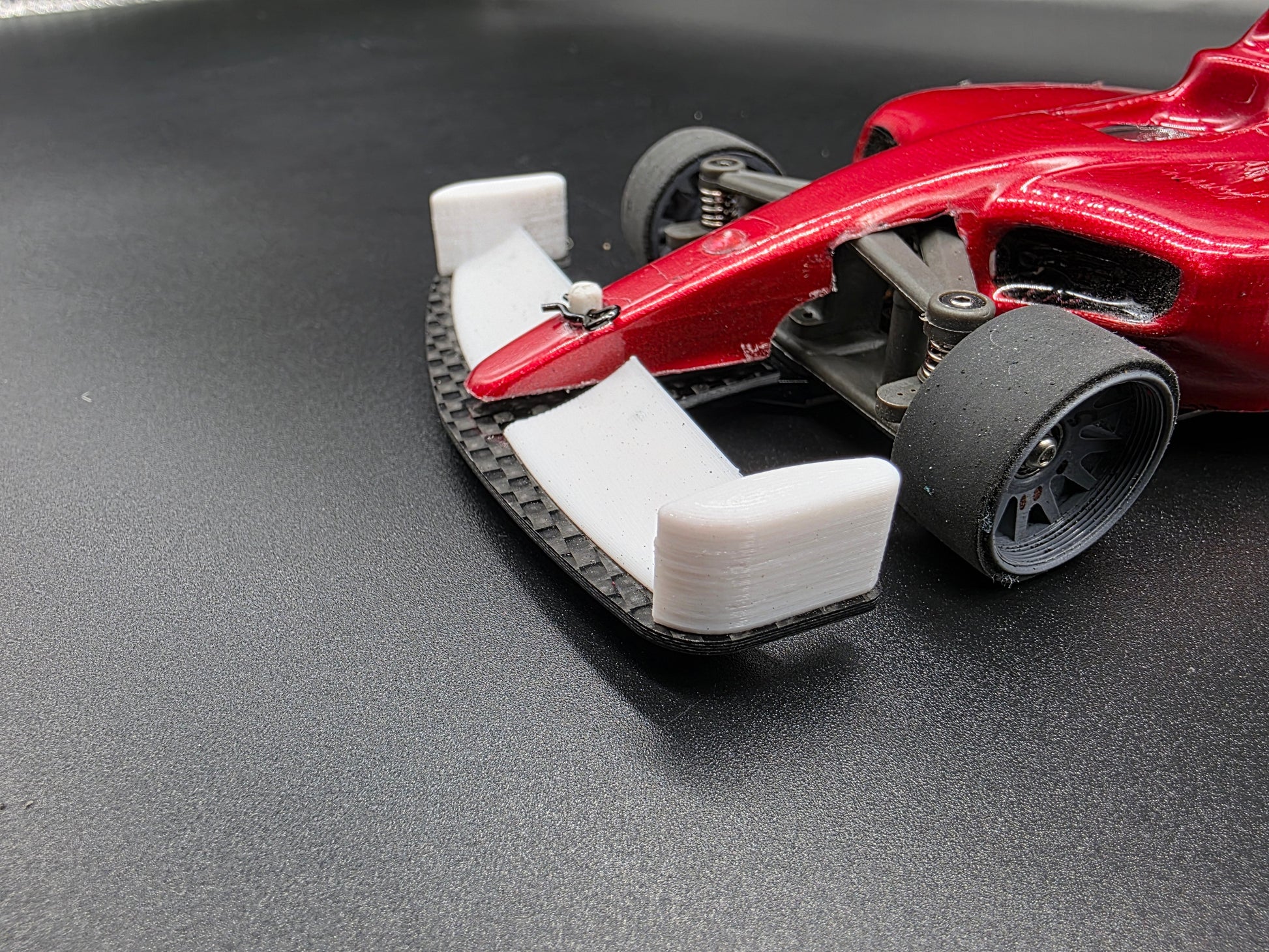

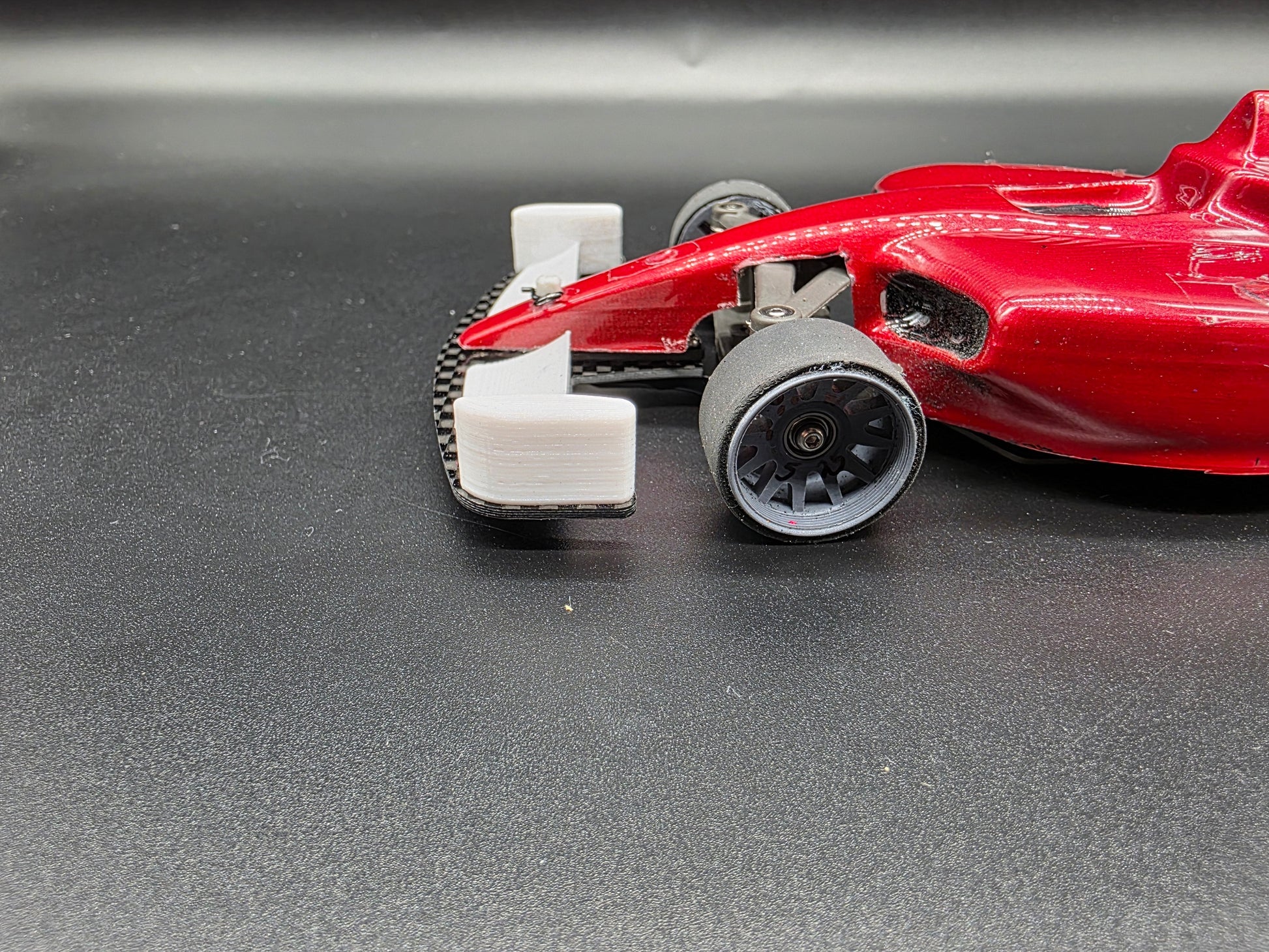

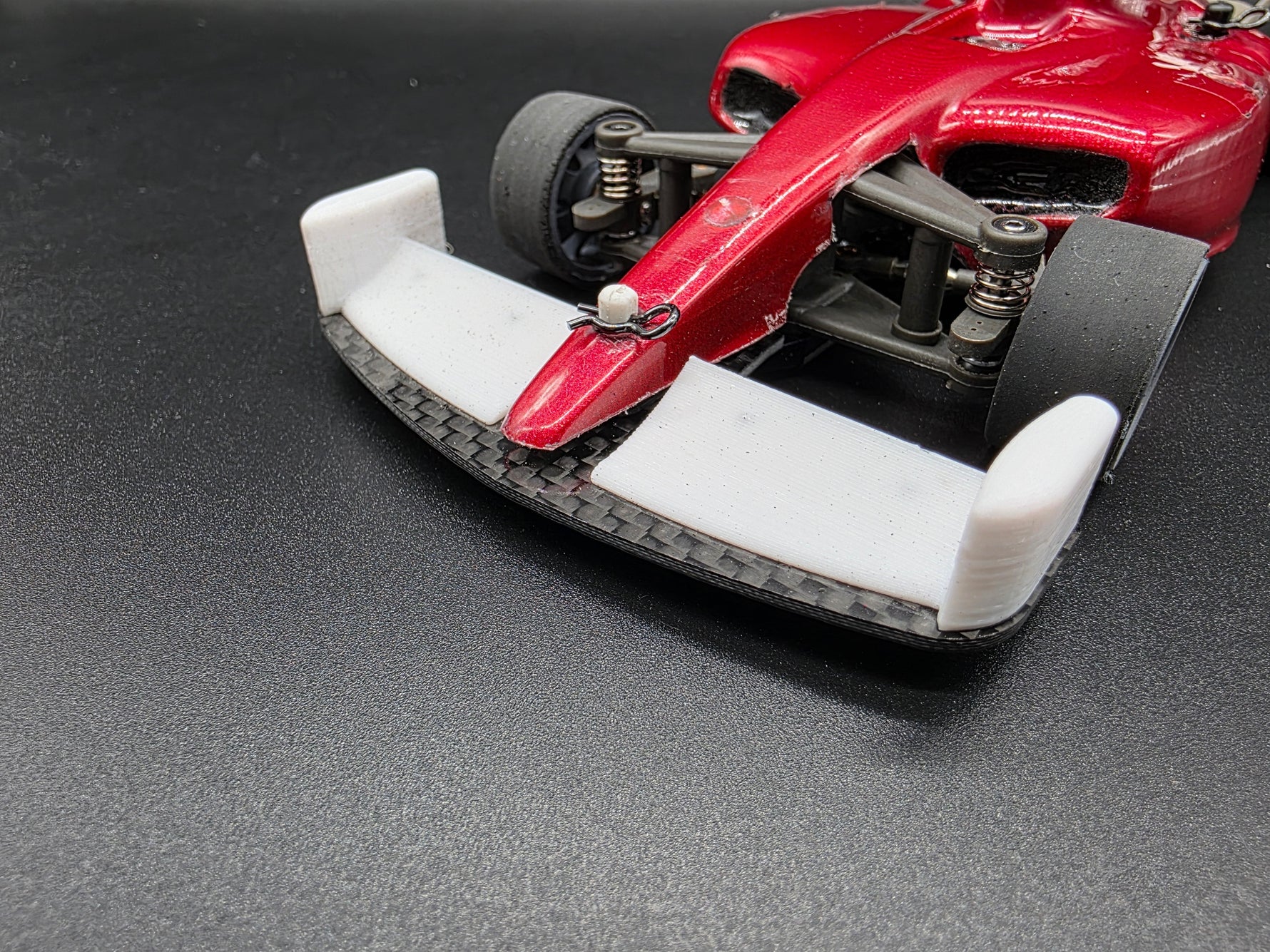

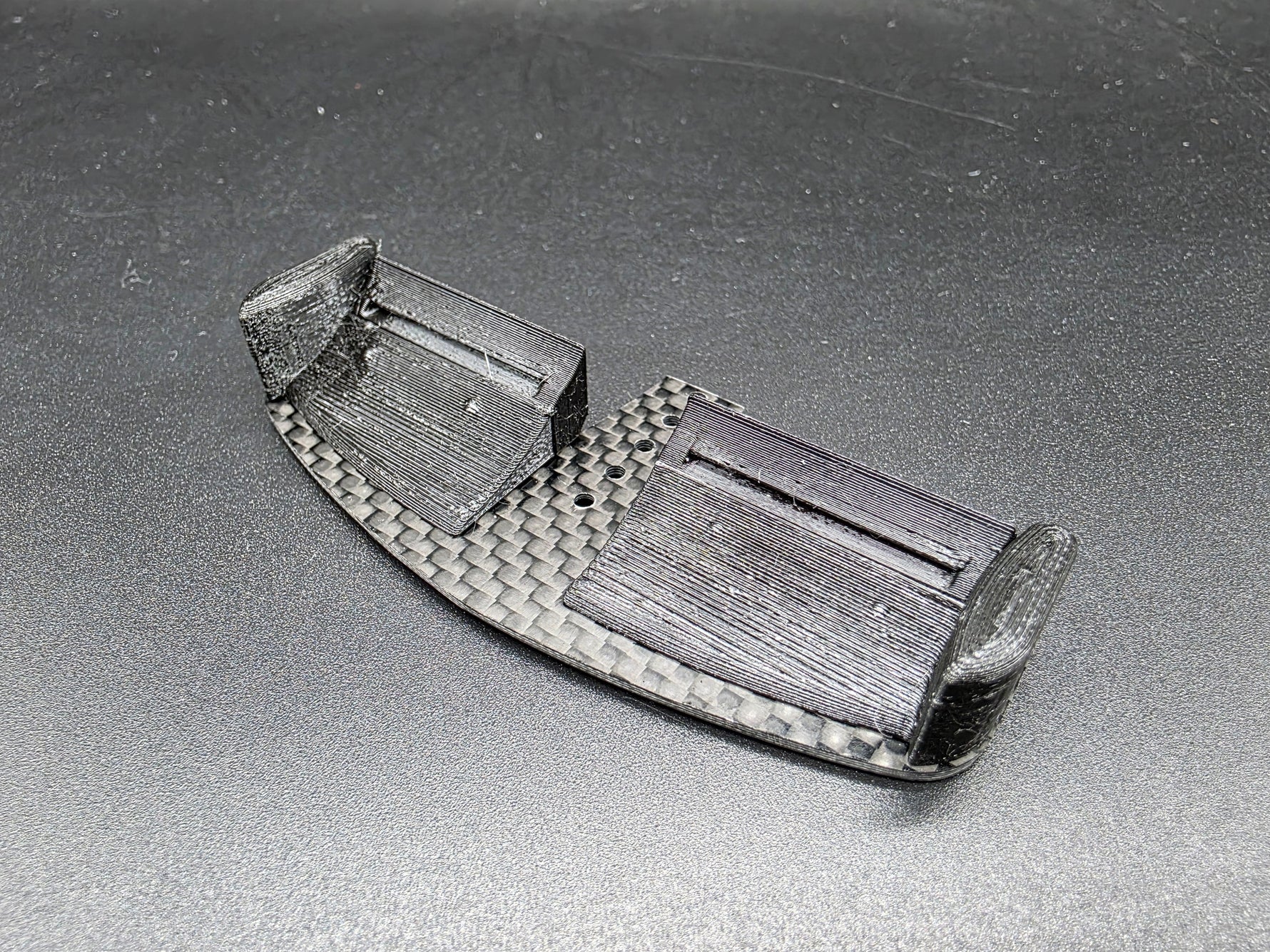

Carbon Fiber Front Wing for Reflex FX28 1/28 F1

Upgrade your Reflex Racing FX28 F1 with a CNC-cut carbon fiber and 3D-printed front wing designed for improved performance, durability, and race-legal compliance. Each kit includes all necessary screws for assembly (some OEM screws will be reused).

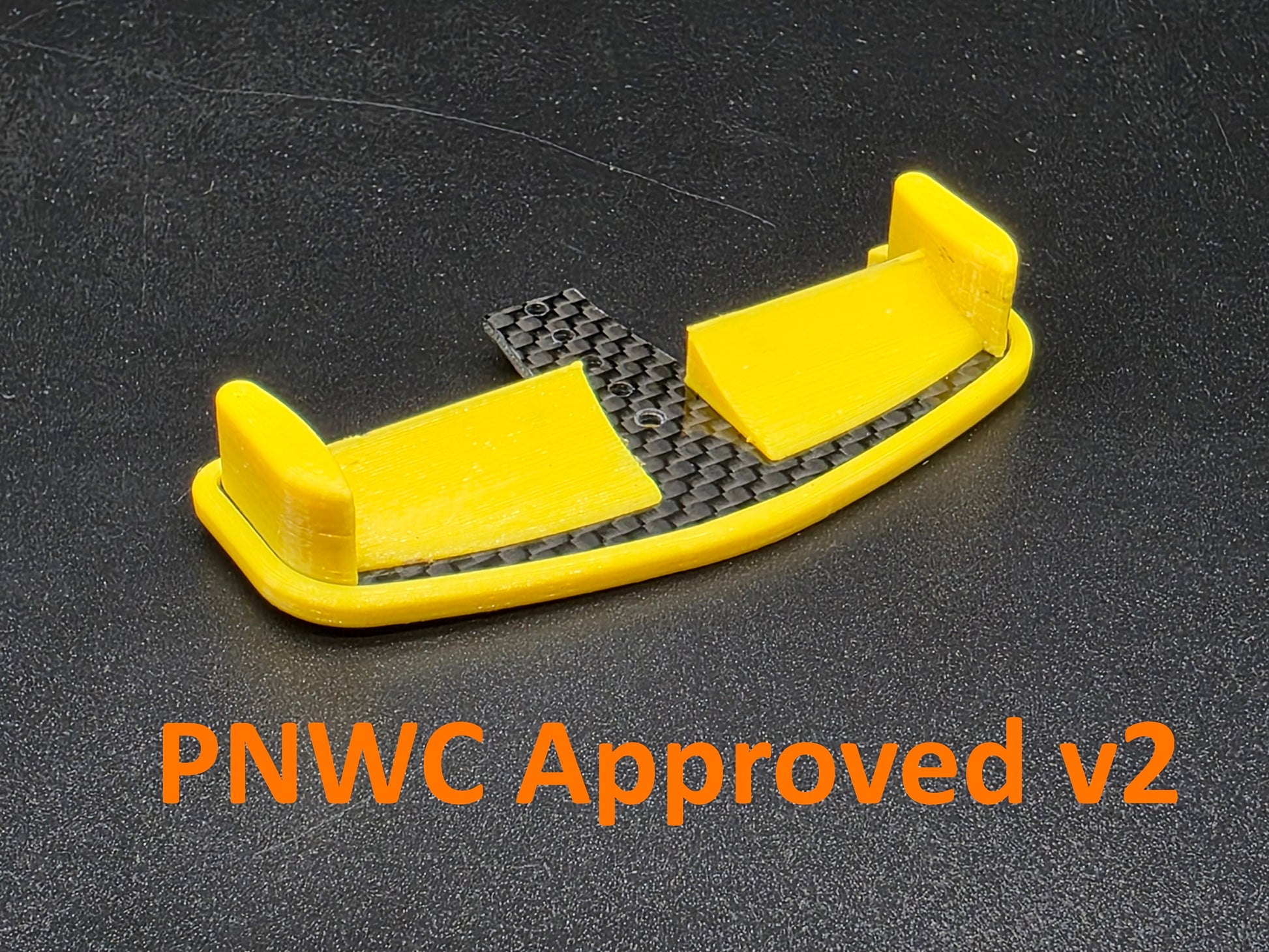

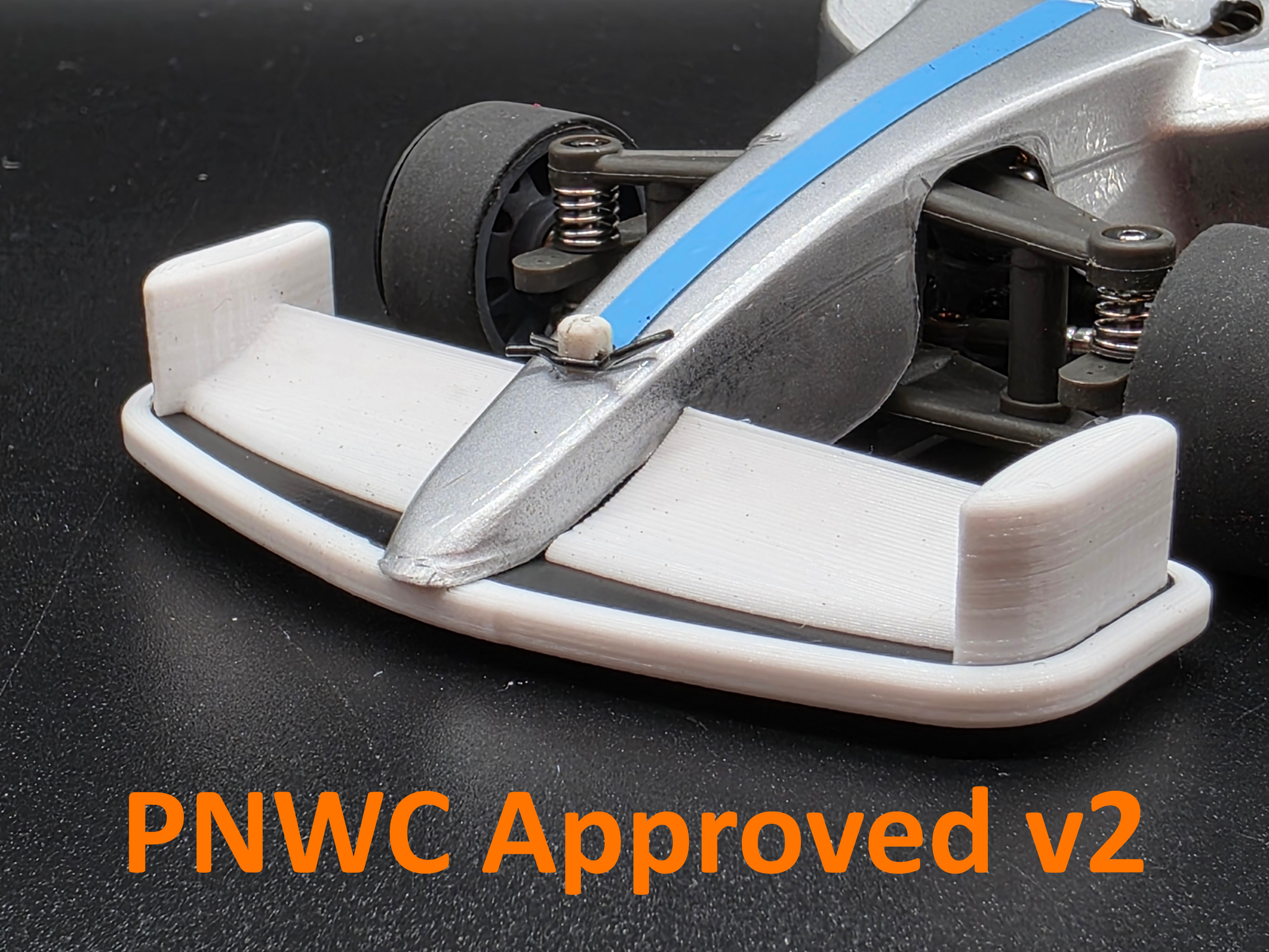

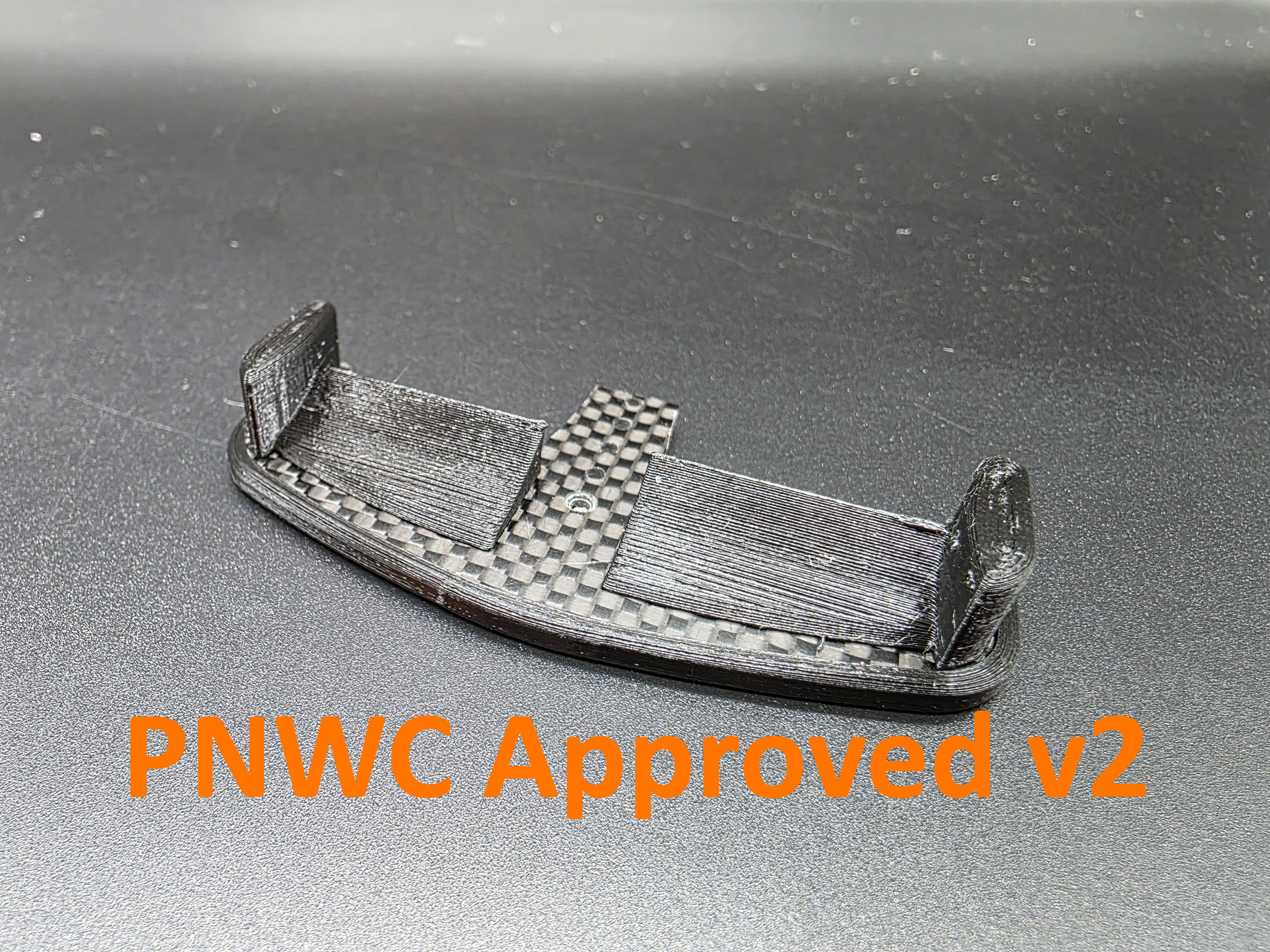

V2 Update (PNWC Legal)

The new V2 front wing is now approved under PNWC rules.
It features:

• A printed bottom plate with a 2mm lip around the carbon fiber, as required by PNWC.

• Same overall dimensions as the original wing.

Key Features

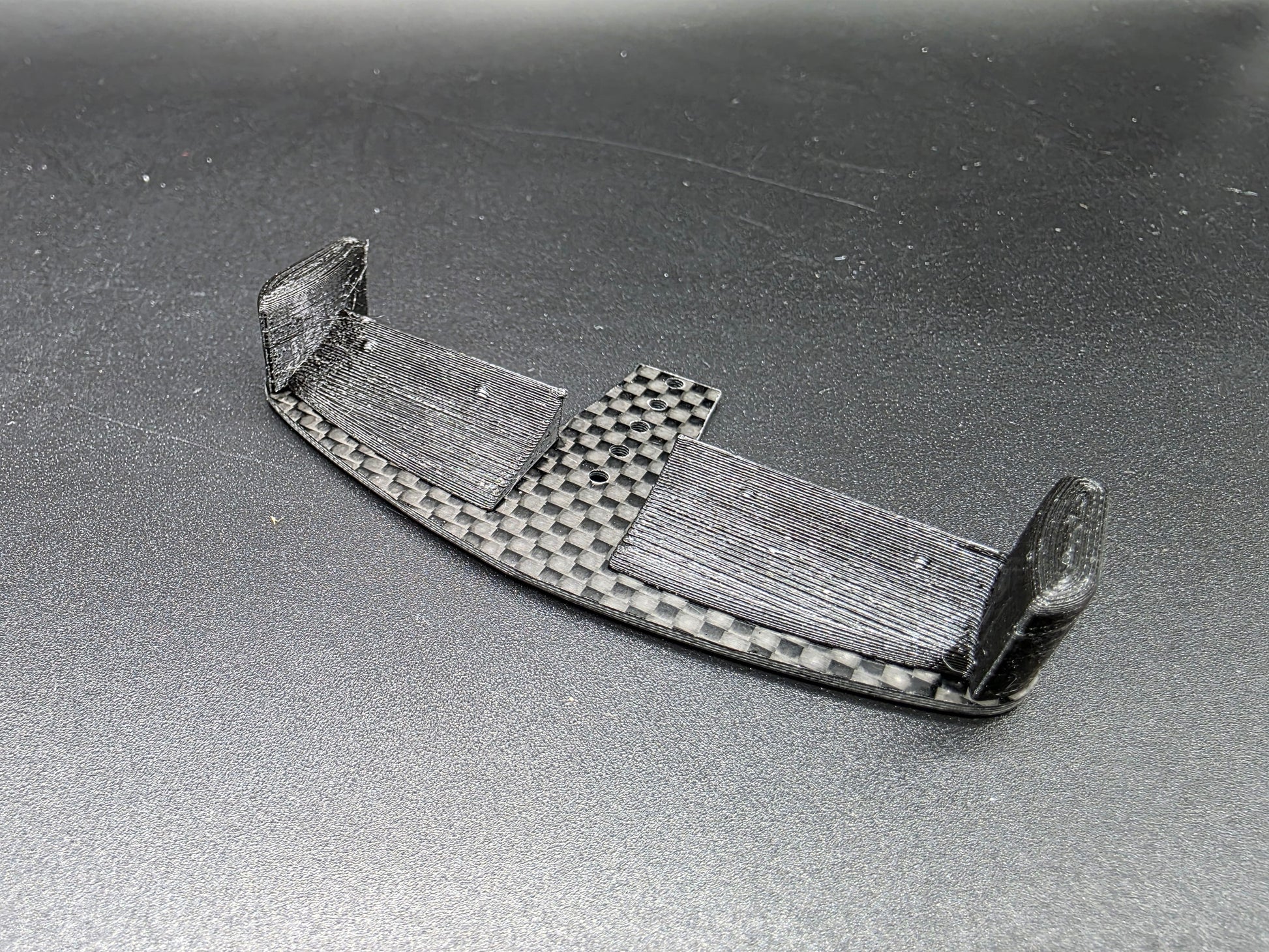

• CNC-cut carbon fiber construction for strength and precision

• Redesigned side plates that reduce the chance of getting stuck under RCP rails

• No OEM-style “fish hooks”—easier and quicker to marshal

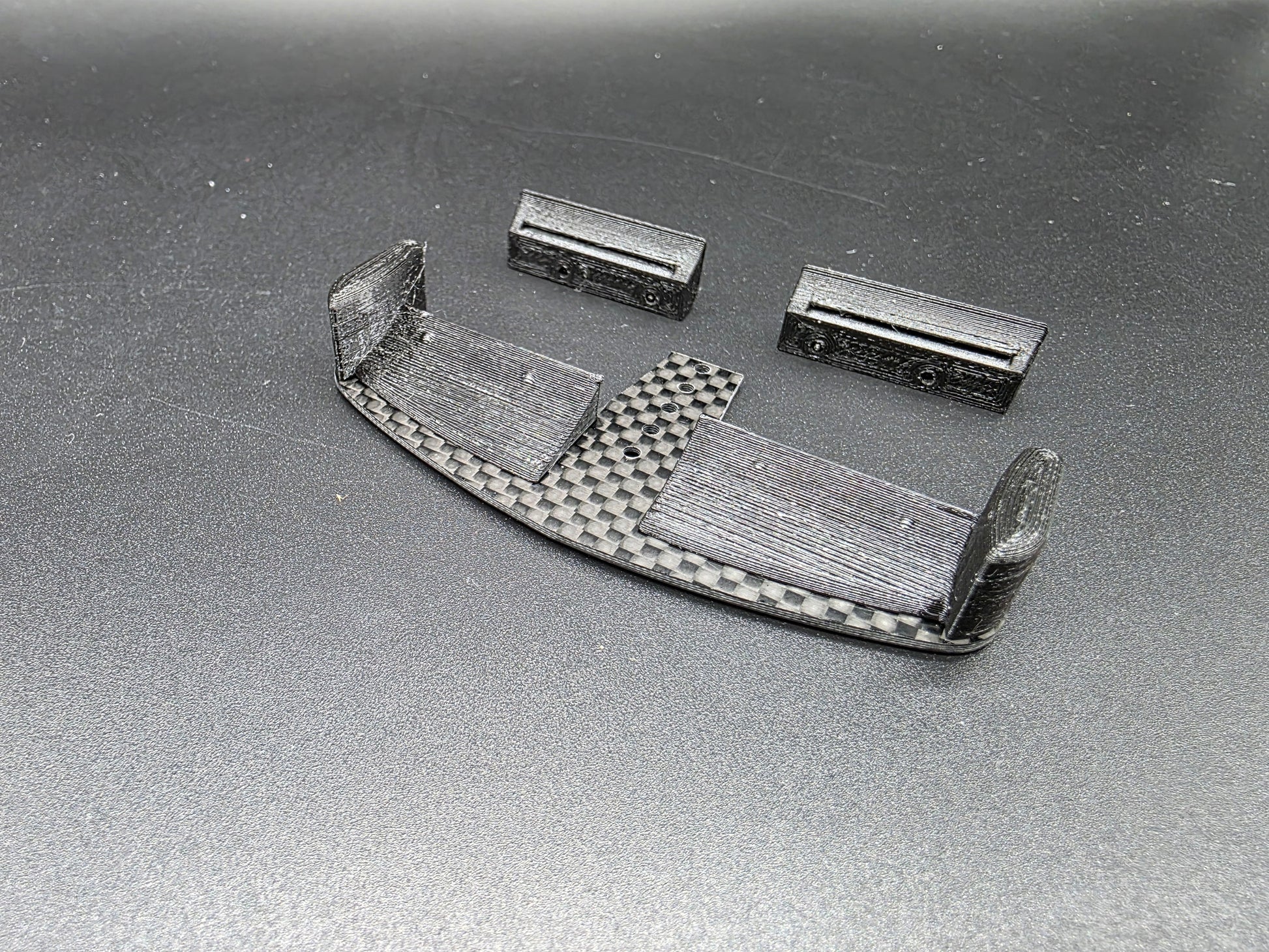

• Includes two optional downforce add-on pieces

• Similar overall dimensions to the OEM wing

• Weight:

  • ~4g heavier than stock (without add-ons)

  • ~6g heavier than stock (with add-ons)

Installation Instructions

1. Seal the carbon edges
   Apply a thin bead of CA glue around the outer carbon fiber edge to prevent splintering.

2. PNWC Legal Bottom Plate (Required for PNWC)
   Skip this step only if your ruleset allows exposed carbon fiber.

   • 2a. Apply a small amount of Shoe Goo, Gorilla Glue, or similar removable glue to the nose of the printed bottom plate.

   • 2b. Insert the carbon fiber plate into the printed bottom plate. Ensure it snaps fully into place and sits flat and flush along all edges.

   • 2c. Allow glue to fully cure before racing.

3. Assembly
   Use the included countersunk screws to secure the printed pieces to the carbon fiber plate.

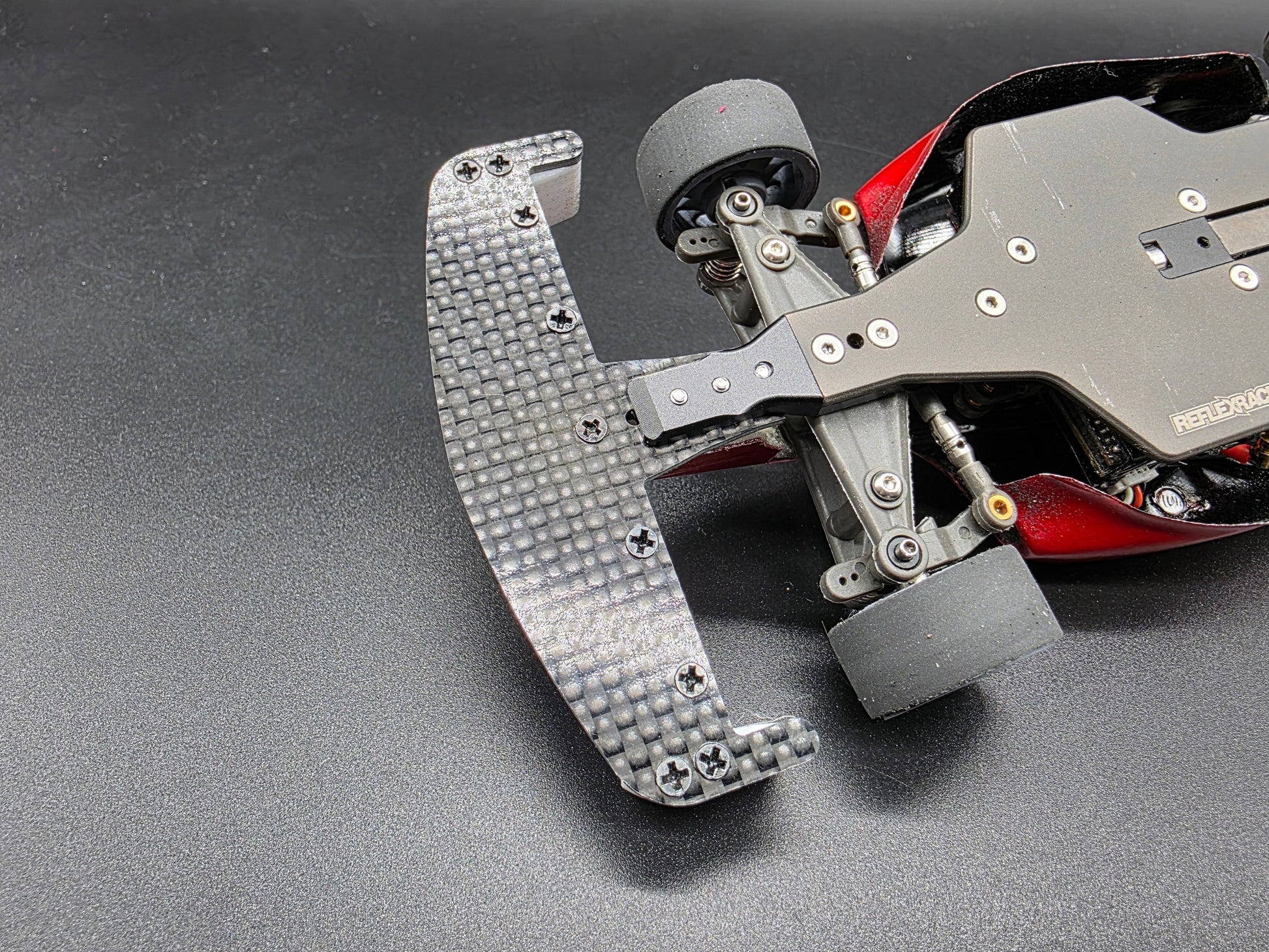

4. Mounting to Chassis
   Installs the same way as the OEM wing using original hardware and the small CF top piece.

5. Note on OEM Short Screw
   The OEM short screw near the body post can be left out—there is no threaded insert for it on this wing.

Fitment Notice

If your FX28 has aftermarket components, fitment may vary. There are many combinations of parts, and not all can be tested.

Durability Disclaimer

These wings are stronger than OEM plastic, but not indestructible.
Hard impacts or specific angles may still cause breakage.
Use at your own discretion—no component can guarantee complete protection.
