KSM634

Brand New Low Profile Tires

PN Racing KS & KS-M compounds are our most popular race proven tire compounds

PN Racing KS Compound: its known to offer more grip as the tire heat up and long duration.

PN Racing KS-M Compound: its known to offer quick warm up and good grip from beginning of the race, also suitable for tracks in cold climate.

After months of R&D, we can finally release our brand new low profile high performance tires.

Our new low profile tires are 1.6mm thick, when its installed on the 20mm rims, the diameter will be 23.2mm.

For stock class you don't have to true these tires, it will be broken in after running on RCP track for one battery pack.

For more advanced classes, only the surface (0.1-0.2mm) needs to be trued.

8.5mm tires

KS Compound

KS1130 Slick Front Tire (8.5mm) SUPER SOFT

KS1134 Slick Front Tire (8.5mm) SOFT

KS1138 Slick Front Tire (8.5mm) MEDIUM

KS1142 Slick Front Tire (8.5mm) Hard

KS-M Compound

KSM530 Slick Front Tire (8.5mm) SUPER SOFT

KSM534 Slick Front Tire (8.5mm) SOFT

KSM538 Slick Front Tire (8.5mm) MEDIUM

KSM542 Slick Front Tire (8.5mm) Hard

11mm tires

(If you use 14mm rear tire, this is perfect front tire to use with 11mm wheels)

KS Compound

KS2130 Slick Tire (11mm) SUPER SOFT

KS2134 Slick Tire (11mm) SOFT

KS2138 Slick Tire (11mm) MEDIUM

KS2142 Slick Tire (11mm) Hard

KS-M Compound

KSM630 Slick Tire (11mm) SUPER SOFT

KSM634 Slick Tire (11mm) SOFT

KSM638 Slick Tire (11mm) MEDIUM

KSM642 Slick Tire (11mm) Hard

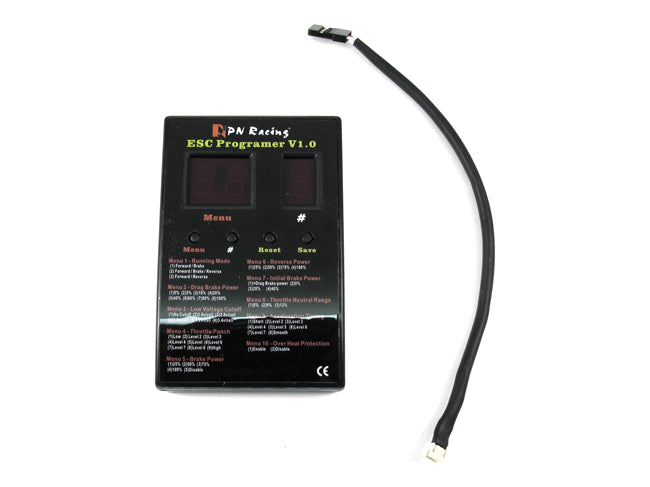

This programmer ONLY works for PN ESC 500807

*MR03 SPORT support this motor with gear ratio not lower than 4.75*

New Version with BALL BEARING

New 2010 Motors Series from 32T to 80T

700385

These batteries have a high voltage level under load, with low internal resistance.

Designed for use with 1/28 scale car

Atomic - BZ AMZ FFZ MRZ SZ

GL Racing - GLA GLR GLRGT GLF GLD

RTRC Chassis

Specification

Voltage: 7.4V (2S)

Capacity: 385mAh

Recommend Charge Rate: 0.8A

C-rate: 70C

Cable: 24Awg

Plug: JST-PH

Type: Rectangular

Size: 44.8 x 20 x 11.9mm (Length x Width x Height)

Weight: 19.5g

600813

Jomurema Authorized Product

PN Lexan Body Kit 600800K for Mini-Z MR03 and PN 2.5 Chassis

Configurable for 98mm wheelbase.

The body comes unpainted.

0.7mm Version

Requirement:

Kyosho Mini-Z MR-02, MR-03 or PN 2.5W chassis

1/28 2WD, AWD Chassis e.g. GL Atomic

800500

OFFICIAL PNWC Spur Gear for 2WD Stock class and Super Stock class

For replacement PN Racing Mini-Z Precision Gear Differential Spur Gear

Changing Spur Gear Ratio

1. Loosen Tension Nut to separate side gears.

2. Allow spider gear pins to recess into carrier. Depress with screw driver if necessary as shown by arrows.

3. Remove spur gear.

4. Installation is reverse of removal

MR2055PC53

164435

NEW V4 Version

Motor Can

- the all new motor can has bigger and more ventilation holes allowing better heat dispersion thus providing better run time

- front section has evenly spaced mounting screws holes that is compatible and fits for all after market motor holder and chassis

End Cap

- newly designed end cap now comes with side locking screws that firmly secures the end cap and PCB.

Stator

- high temp wires used for longevity

- proprietary wiring producing better speed, torque and smoothness

Changeable armature

New design air vent gets more cooling

High-Temperature wire

15mm diameter motor can, same as normal brushed 130 motors. Fits in all Kyosho, PN, and aftermarket motor mounts.

Fits in all Mini-Z chassis AWD, F1, MR02, MR03, MR04

Much more torque and acceleration than other VE motors.

No loading RPM 22000 on 4.8V, amp draw only 0.28A

Four mounting holes to allow different angles of motor terminals.

Eight venting holes prevent heat buildup.

Can and end bell ball bearing from Japan.

Recommend gear ratio 3.95 to 5.00

Connection M1 to Orange Wire, M2 to Yellow Wire, M3 to Blue Wire

Recommend wire #700122

Replacement endbell screws #183002

700511A

700506A

700505A

PN lexan roof have a thickness of 0.2mm.

Molded from the original plastic window ensure perfect fitment.

Lexan window is thinner and lighter compared to the original plastic part which reduced weight from the top of the car and shifts the center of gravity down for better stability.

Requirement:

JOMUREMA GT01 Body

Color: Clear

Material: Lexan

Includes:

1 x lexan window uncut.

1 x Window mask

PN Racing Mini-Z Precision Gear Differential

Parts Number MR2055M is M0.5 43T

Parts Number MR2055P is 64P 53T

•Light weight. Minimal rotational inertia for fast acceleration.

•Axle has been revised to 3mm (both side uses same size bearing/bushing now)

•Fast gear ratio changes. No dis-assembly of differential necessary for spur gear change.

•Adjustable side gear tension for tight or loose differential action.

Smooth quiet operation. No gear noise and vibration associated with stock differential

Changing Spur Gear Ratio

1. Loosen Tension Nut to separate side gears.

2. Allow spider gear pins to recess into carrier. Depress with screw driver if necessary as shown by arrows.

3. Remove spur gear.

4. Installation is reverse of removal

600800E

600810
