HOBBYWING Tunalyzer offers the ability to evaluate brushless DC motors and their related internal components. It can output the Kv value, RPM, amps, end-bell timing, and sensor elements of these motors to the LCD in real-time, giving users a comprehensive and visual understanding of the motor used. Moreover, its built-in Bluetooth connectivity enables users to communicate with their HOBBYWING ESCs via a mobile app to facilitate parameter setting as well as firmware updating.

Bottomline:

• Measure motor Current / Kv value/Rpm, End-bell timing / Deviation, Rotor asymmetry, Hall signal deviation, and motor temperature.
• Set and upgrade the ESC (which can support the OTA Bluetooth module)

• Improved top speed / Precision response / High efficiency with the cool operation
• When used with the EzRun Mini28 ESC, timing advance can be used to increase top speeds drastically.
• Zero cogging, consistent torque and excellent low-speed response give an amazing feel and driveability
• Modular detachable structure, convenient for daily cleaning and maintenance.

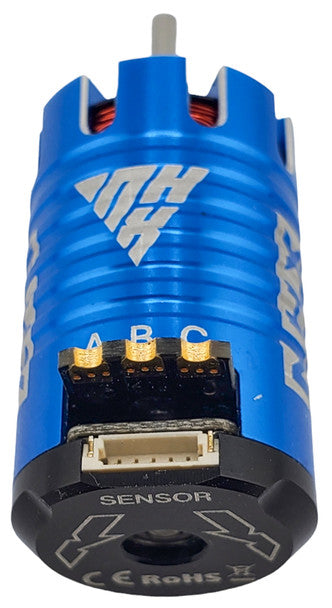

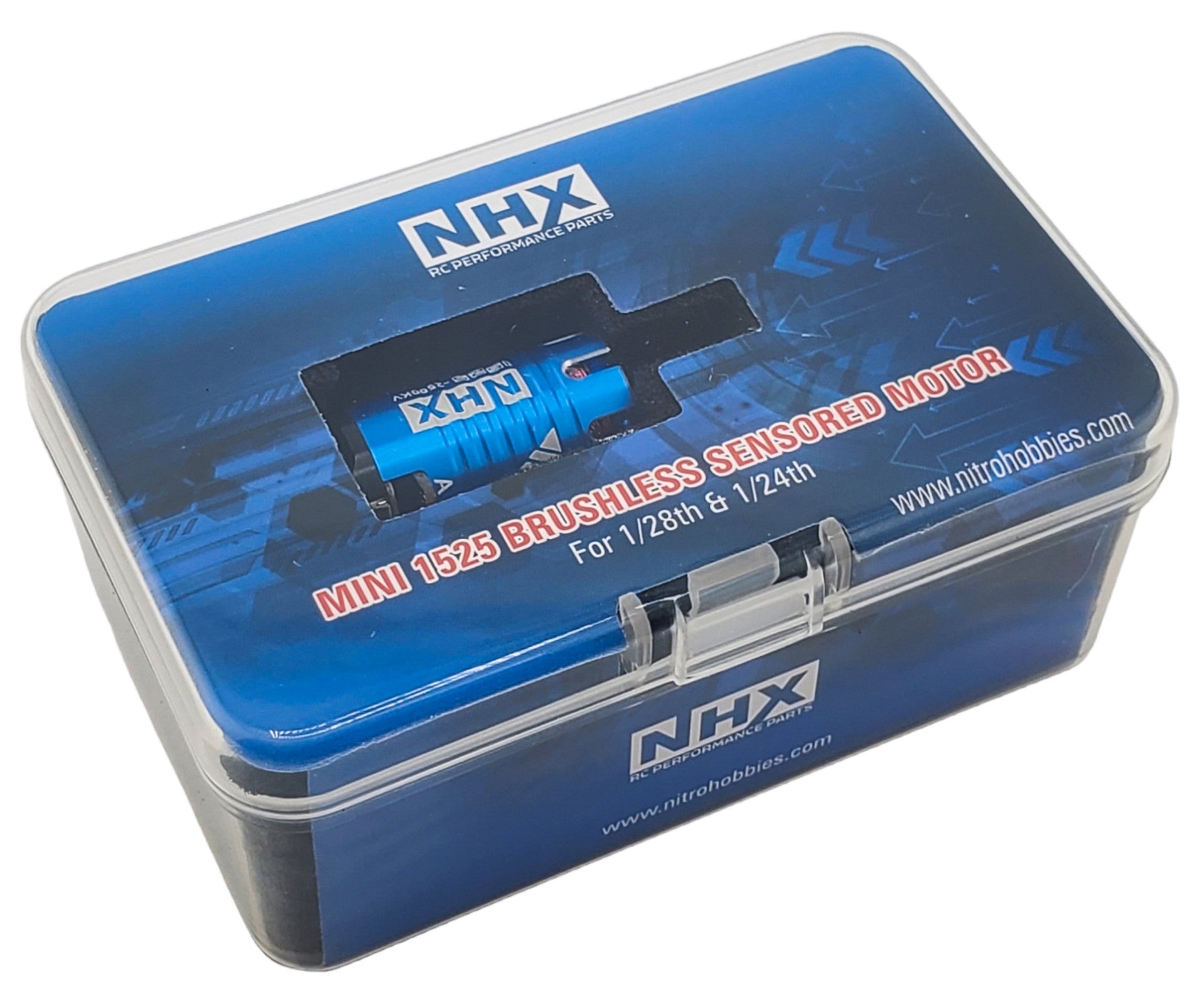

1525 2-Pole 2500KV Sensored Brushless Motor

High-Efficiency Power in a Compact Design – Perfect for 1/24 and 1/28 Scale RC Vehicles

The all-new 1525 2-Pole Sensored Brushless Motor delivers premium performance in a micro-sized package. Designed for competitive RC applications, this motor provides up to 80W of maximum power with an impressive 92% output efficiency. Whether you prefer Sensored or Sensorless startup, this motor adapts to your driving style.

🔧 Key Features:

• Dual-Mode Startup: Supports both Sensored and Sensorless operation.
• High-Efficiency Performance:
  • Powerful 2-pole rotor with high-temp magnets (up to 200°C).
  • 0.2mm silicon steel stator achieves up to 94% energy conversion.
  • High slot rate design for increased power with reduced resistance.
• Premium Build Components:
  • NSK bearings from Japan for smooth high-speed performance.
  • Gold-plated thick PCB board ensures reliable ESC connection.
  • American MWS red wire for high-grade conductivity.
  • Sensor port compatible with standard sensor cables.
• Precision-Balanced Rotor: Balanced with a German Schenker machine for ultra-smooth operation.
• Turbo Timing Capable: Reach speeds of up to 60,000 RPM when turbo timing is enabled.
• Durable Aluminum Alloy Housing: Lightweight and highly stable under load.

📐 Specifications:

📦 Package Includes:

• 1 × 2500KV Mini 1525 2-Pole Sensored Brushless Motor
• 1 × Sensor/Connecting Cable

Ready to upgrade your 1/24 or 1/28 scale RC vehicle? The 1525 Sensored Brushless Motor delivers elite performance in a compact form factor — ideal for racers and hobbyists alike.

1525 2-Pole 3500KV Sensored Brushless Motor

High-Efficiency Power in a Compact Design – Perfect for 1/24 and 1/28 Scale RC Vehicles

The all-new 1525 2-Pole Sensored Brushless Motor delivers premium performance in a micro-sized package. Designed for competitive RC applications, this motor provides up to 80W of maximum power with an impressive 92% output efficiency. Whether you prefer Sensored or Sensorless startup, this motor adapts to your driving style.

🔧 Key Features:

• Dual-Mode Startup: Supports both Sensored and Sensorless operation.
• High-Efficiency Performance:
  • Powerful 2-pole rotor with high-temp magnets (up to 200°C).
  • 0.2mm silicon steel stator achieves up to 94% energy conversion.
  • High slot rate design for increased power with reduced resistance.
• Premium Build Components:
  • NSK bearings from Japan for smooth high-speed performance.
  • Gold-plated thick PCB board ensures reliable ESC connection.
  • American MWS red wire for high-grade conductivity.
  • Sensor port compatible with standard sensor cables.
• Precision-Balanced Rotor: Balanced with a German Schenker machine for ultra-smooth operation.
• Turbo Timing Capable: Reach speeds of up to 60,000 RPM when turbo timing is enabled.
• Durable Aluminum Alloy Housing: Lightweight and highly stable under load.

📐 Specifications:

📦 Package Includes:

• 1 × 3500KV Mini 1525 2-Pole Sensored Brushless Motor
• 1 × Sensor/Connecting Cable

Ready to upgrade your 1/24 or 1/28 scale RC vehicle? The 1525 Sensored Brushless Motor delivers elite performance in a compact form factor — ideal for racers and hobbyists alike.

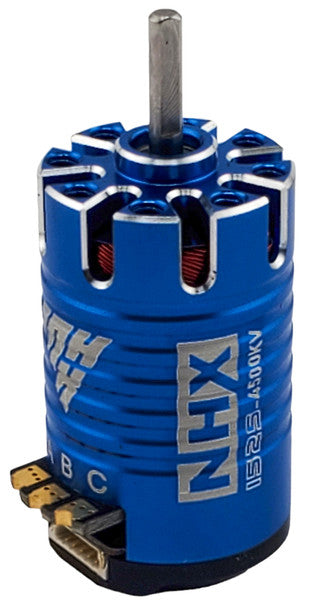

1525 2-Pole 4500KV Sensored Brushless Motor

High-Efficiency Power in a Compact Design – Perfect for 1/24 and 1/28 Scale RC Vehicles

The all-new 1525 2-Pole Sensored Brushless Motor delivers premium performance in a micro-sized package. Designed for competitive RC applications, this motor provides up to 80W of maximum power with an impressive 92% output efficiency. Whether you prefer Sensored or Sensorless startup, this motor adapts to your driving style.

🔧 Key Features:

• Dual-Mode Startup: Supports both Sensored and Sensorless operation.
• High-Efficiency Performance:
  • Powerful 2-pole rotor with high-temp magnets (up to 200°C).
  • 0.2mm silicon steel stator achieves up to 94% energy conversion.
  • High slot rate design for increased power with reduced resistance.
• Premium Build Components:
  • NSK bearings from Japan for smooth high-speed performance.
  • Gold-plated thick PCB board ensures reliable ESC connection.
  • American MWS red wire for high-grade conductivity.
  • Sensor port compatible with standard sensor cables.
• Precision-Balanced Rotor: Balanced with a German Schenker machine for ultra-smooth operation.
• Turbo Timing Capable: Reach speeds of up to 60,000 RPM when turbo timing is enabled.
• Durable Aluminum Alloy Housing: Lightweight and highly stable under load.

📐 Specifications:

📦 Package Includes:

• 1 × 4500KV Mini 1525 2-Pole Sensored Brushless Motor
• 1 × Sensor/Connecting Cable

Ready to upgrade your 1/24 or 1/28 scale RC vehicle? The 1525 Sensored Brushless Motor delivers elite performance in a compact form factor — ideal for racers and hobbyists alike.

Brushless sensor-less motor for Mini-z and any other 1/28 sized micro racers! Features large air ventilation holes to keep with keeping temperatures cool! Four different set of mounting holes allows for you to shift the wiring to allow for ease of mounting. D shaped cut motor shaft for use with both plastic and metallic pinion gears with set screws!

For: Mini-Z and other 1/28 Scale Racers
Material: Aluminum
Color: Black/Blue
KV: 2500
Voltage: 8.4v Max
Dimensions : 36mm X 15mm (w/shaft)  , 27mm X 15mm (w/o shaft)

Brushless sensor-less motor for Mini-z and any other 1/28 sized micro racers! Features large air ventilation holes to keep with keeping temperatures cool! Four different set of mounting holes allows for you to shift the wiring to allow for ease of mounting. D shaped cut motor shaft for use with both plastic and metallic pinion gears with set screws!

Feature:

For: Mini-Z and other 1/28 Scale Racers
Material: Aluminum
Color: Black/Blue
KV: 5500
Voltage: 8.4v Max
Dimensions : 36mm X 15mm (w/shaft)  , 27mm X 15mm (w/o shaft)


Include:

5500KV Mini 1410 2 Poles Sensorless Brushless Motor (1 pc)

Sensor cable for AWD cars with ESC installed next to motor.

Sensor cable optimized in length for a 2wd 1/28 car with Hobbywing Mini-28 ESC

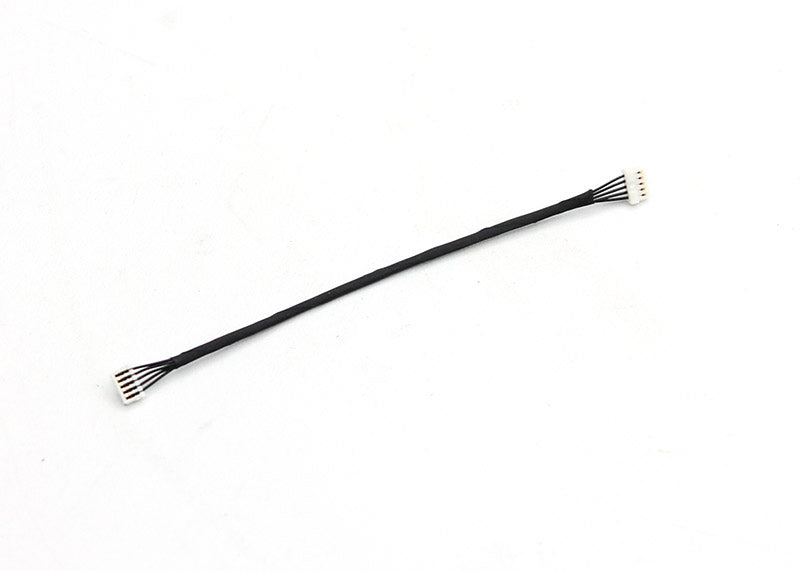

Sensor cable optimized in length for a 2wd 1/28 car with MC1 ESC

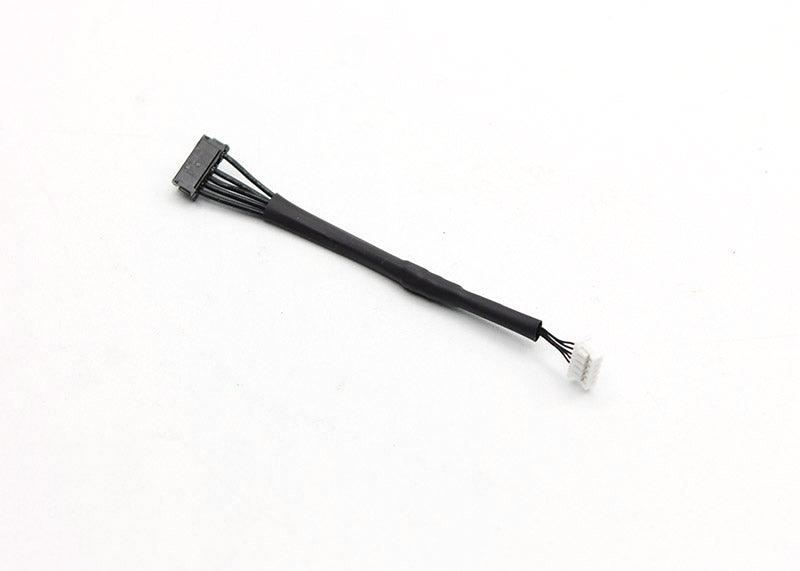

Use this cable with your Hobbywing Tunalyzer or Sky RC Motor Checker (may work with other testers that require larger scale to 1/28 PN Racing Motor Sensor Plug).

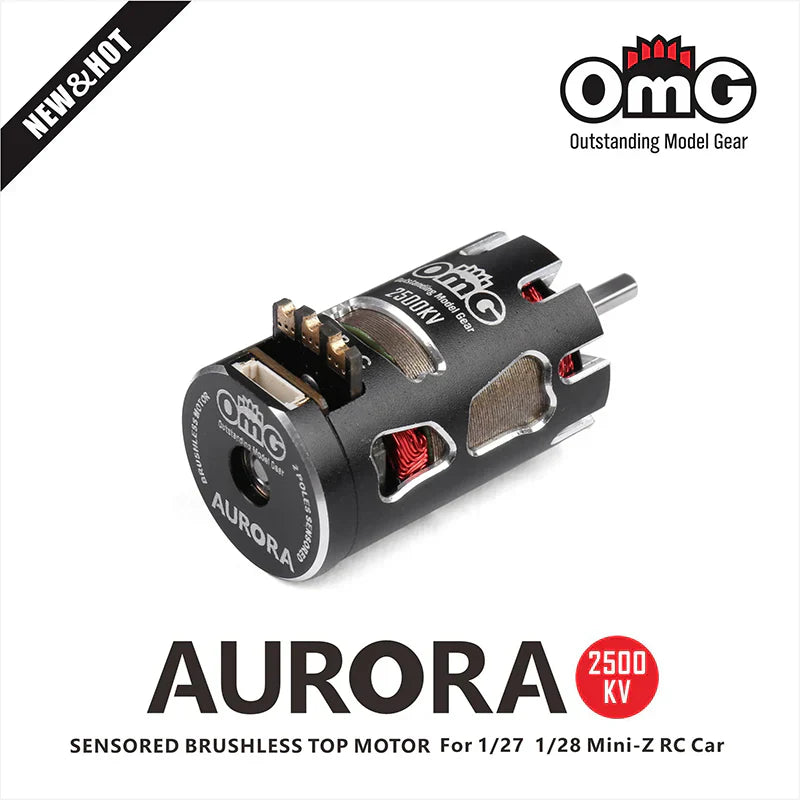

OMG MT-AURORA-S2 Sensored Brushless Top Motor (1/27–1/28 Mini-Z RC Car)

Take your Mini-Z performance to the next level with the OMG MT-AURORA-S2 — a precision-engineered, sensored brushless motor designed for 1/27 and 1/28 scale RC cars. Perfect for RWD, FWD, and AWD setups, this motor delivers smooth throttle response and outstanding efficiency for serious racers.

⚙️ Specifications

• Motor Type: Sensored Brushless

• Scale Compatibility: 1/27 & 1/28 Mini-Z RC Cars

• Suitable for: RWD, FWD, AWD vehicles

• Poles: 2

• Weight: 17g

⚡ Performance

• kV Options: 2500KV

• Max Amps: 8A

• Max Voltage: < 8.4V

• Resistance: 0.74Ω

• No-load Current: 0.25A

• Continuous Power: 80W

• Max RPM: 60,000

📏 Dimensions

• Motor Size: Φ15 × 25mm

• Shaft Diameter: 2mm

• Extended Shaft Length: 10mm

🎨 Color Options

• Black (BK)

• Red (RD)

• Purple/Violet (VT)

Upgrade your Mini-Z with the OMG MT-AURORA-S2 — engineered for speed, control, and performance.

Marka Racing 1:28 Mini-Z V3 Sensored Brushless Motor 3500kv (MZR-3500-V3)

The new Marka Racing 3500KV sensored motor brings Italian engineering precision to 1/28th scale competition. Featuring an optimized can design with cooling vents positioned for maximum airflow, this motor is built to handle the demands of aggressive racing.

Performance Characteristics: Built with high mechanical advance timing, the 3500KV variant excels at delivering instant throttle response and impressive straight-line performance. Proper ESC configuration is essential to harness this motor's capabilities while protecting its internals.

Recommended Starting Points:

10T pinion / 53T spur configuration:

• Boost (Initial Timing): 5°
• Turbo (Max Timing): 10°

12T pinion / 53T spur configuration:

• Boost (Initial Timing): 10°
• Turbo (Max Timing): 10°

These settings provide a solid foundation - experimentation with gearing ratios and timing may be needed to match your track and driving preferences.

Critical Operating Guidelines:

• Actively monitor motor temperatures during runs - the high-advance design increases thermal load
• Total combined timing must not exceed 20° (Boost + Turbo combined) to avoid performance degradation and potential motor failure
• Dial in your timing based on real-world temperature readings and track characteristics

This motor's aggressive timing architecture rewards drivers who can manage power delivery while maintaining thermal efficiency.

Discover the new Marka Racing sensor engine: the ultimate in power and precision for your 1:28 racing!
Designed with an innovative layout, featuring strategic openings to ensure optimal cooling.

***Remember, to maintain top performance, never exceed a 30° difference between TIMING and TURBO!***
