30402653

Designed for high-power 1/28th scale builders

• Improved top speed / Precision response / High efficiency with the cool operation
• When used with the EzRun Mini28 ESC, timing advance can be used to increase top speeds drastically.
• Zero cogging, consistent torque and excellent low-speed response give an amazing feel and driveability
• Modular detachable structure, convenient for daily cleaning and maintenance.

30402654

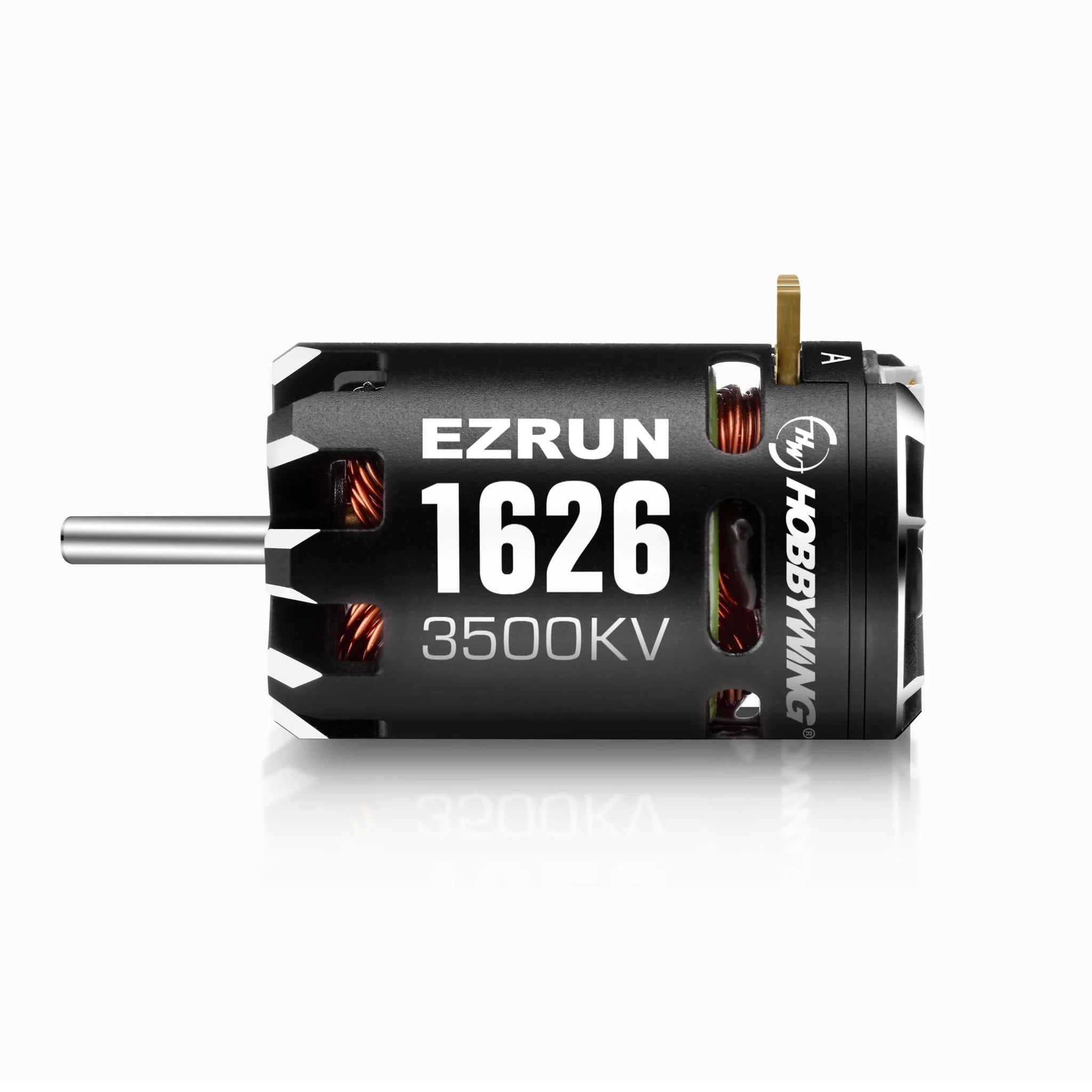

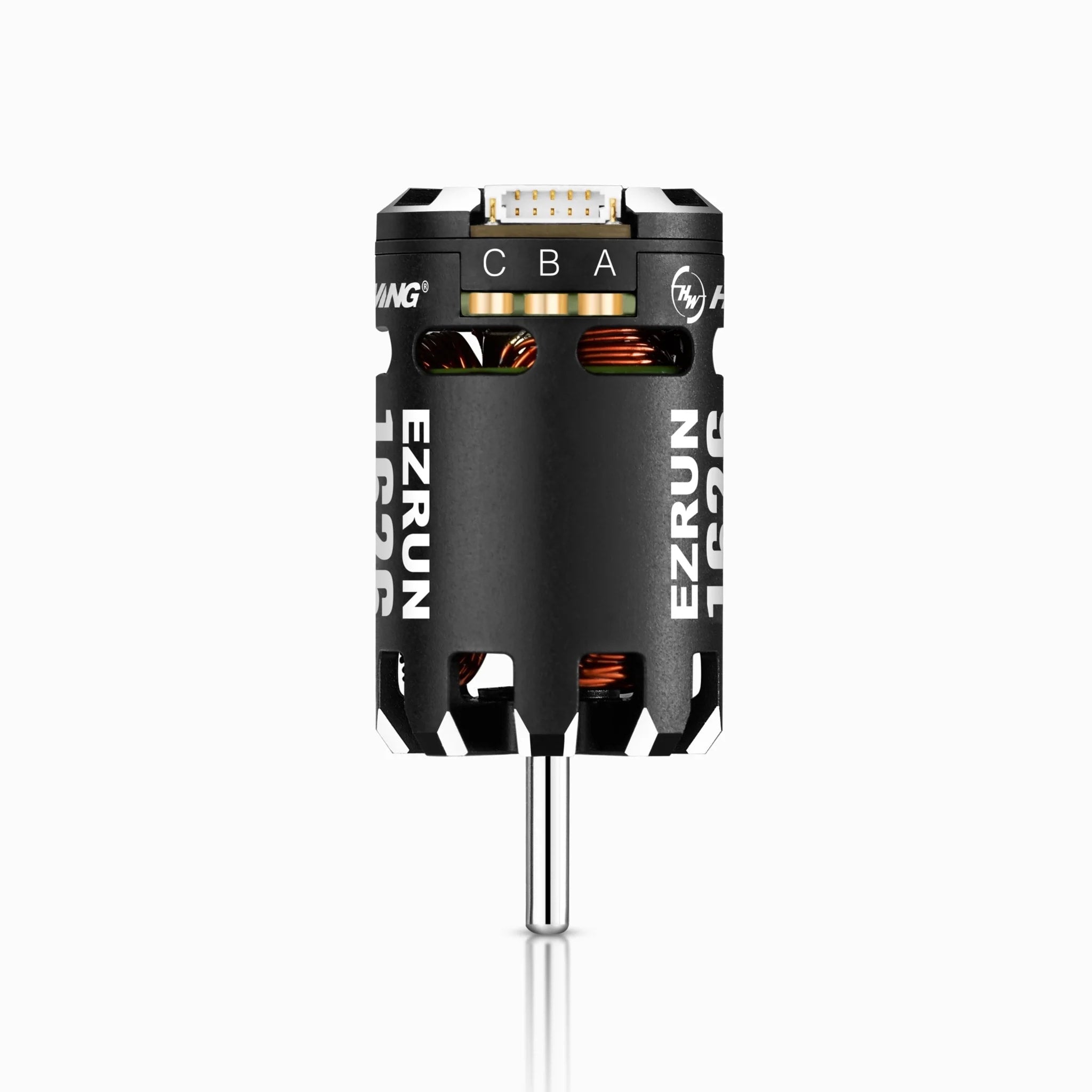

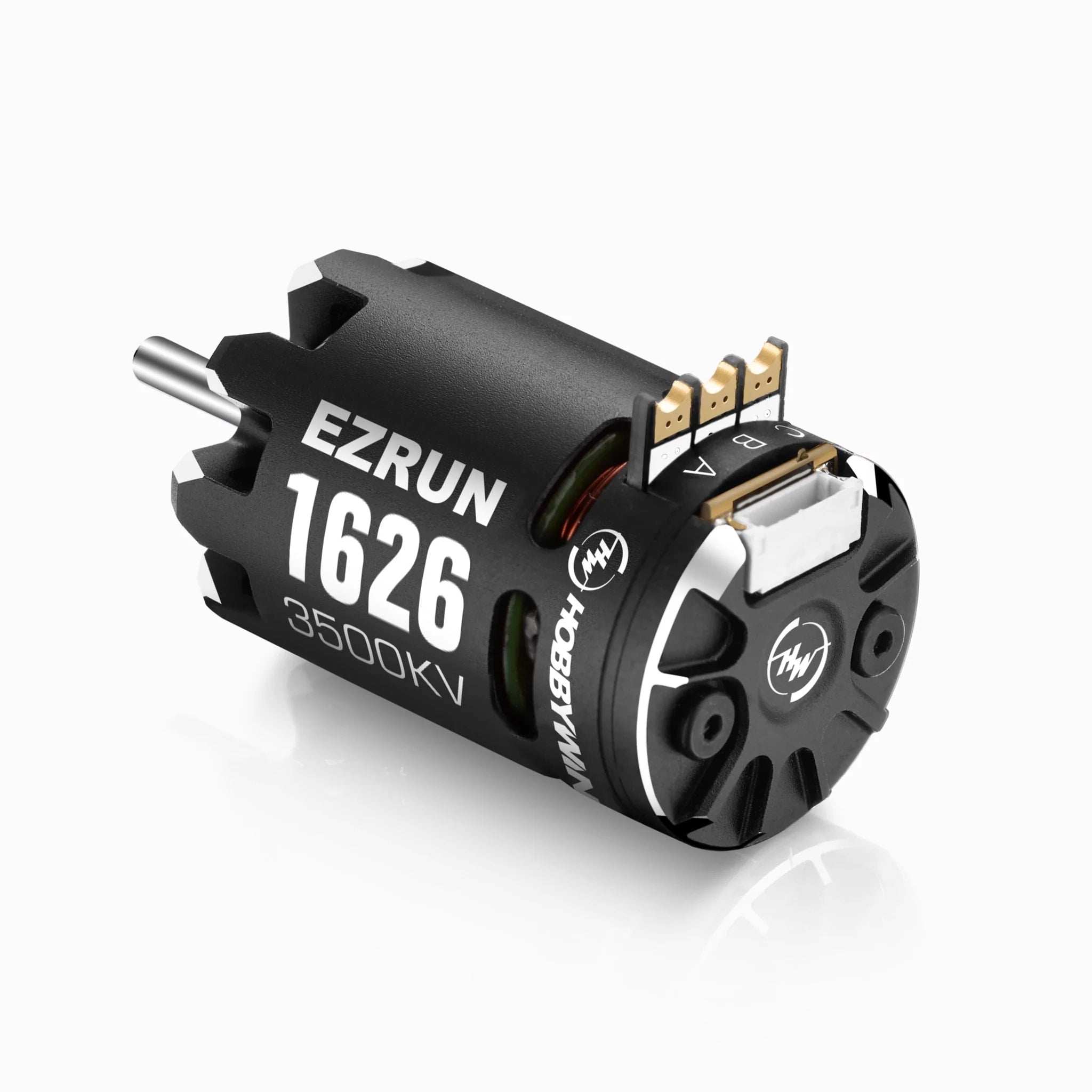

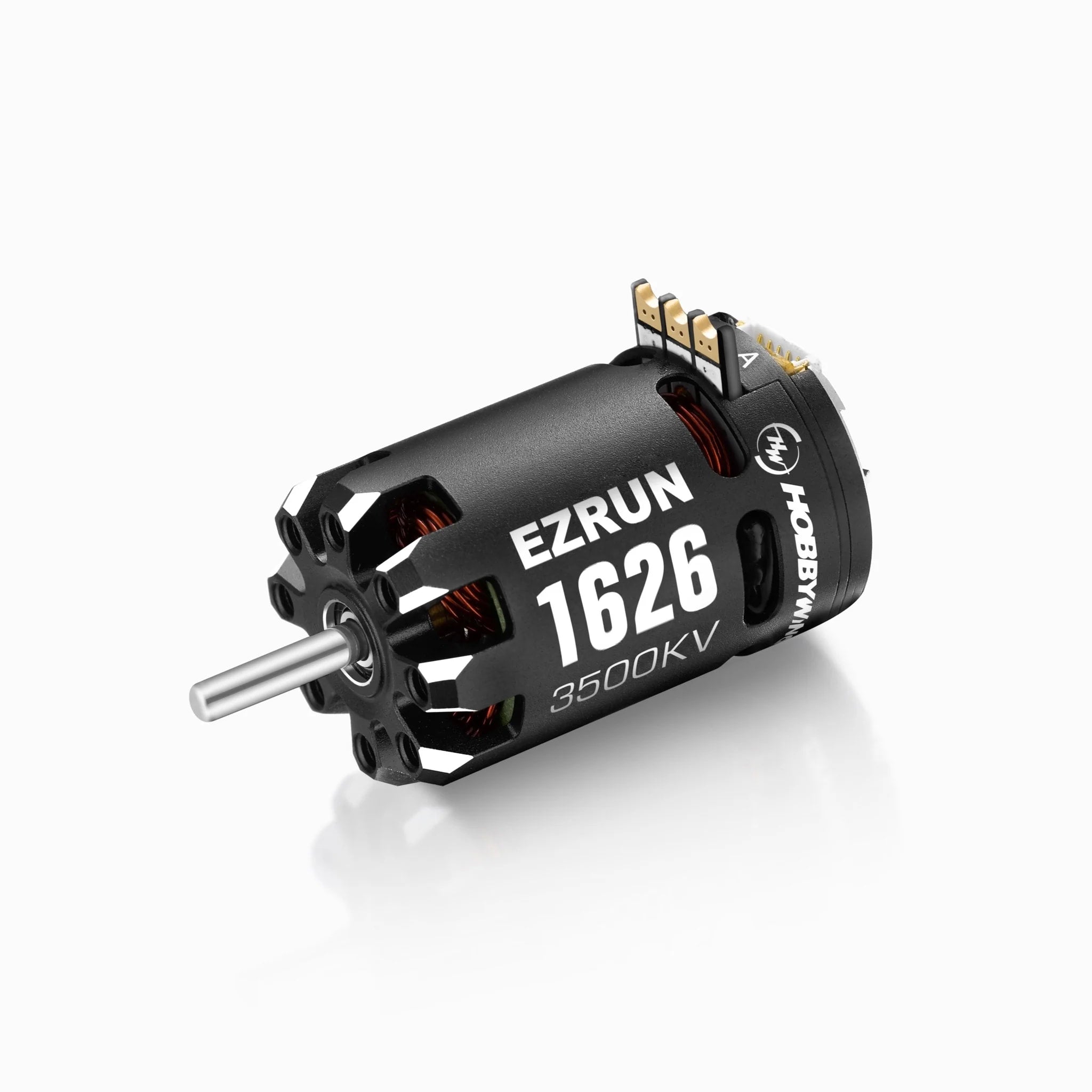

***Pictures are of 3500KV motor, but you will be shipped the 5000KV version

Designed for high-power 1/28th scale builders

• Improved top speed / Precision response / High efficiency with the cool operation
• When used with the EzRun Mini28 ESC, timing advance can be used to increase top speeds drastically.
• Zero cogging, consistent torque and excellent low-speed response give an amazing feel and driveability
• Modular detachable structure, convenient for daily cleaning and maintenance.

164435

NEW V4 Version

Motor Can

- the all new motor can has bigger and more ventilation holes allowing better heat dispersion thus providing better run time

- front section has evenly spaced mounting screws holes that is compatible and fits for all after market motor holder and chassis

End Cap

- newly designed end cap now comes with side locking screws that firmly secures the end cap and PCB.

Stator

- high temp wires used for longevity

- proprietary wiring producing better speed, torque and smoothness

Changeable armature

New design air vent gets more cooling

High-Temperature wire

15mm diameter motor can, same as normal brushed 130 motors. Fits in all Kyosho, PN, and aftermarket motor mounts.

Fits in all Mini-Z chassis AWD, F1, MR02, MR03, MR04

Much more torque and acceleration than other VE motors.

No loading RPM 22000 on 4.8V, amp draw only 0.28A

Four mounting holes to allow different angles of motor terminals.

Eight venting holes prevent heat buildup.

Can and end bell ball bearing from Japan.

Recommend gear ratio 3.95 to 5.00

Connection M1 to Orange Wire, M2 to Yellow Wire, M3 to Blue Wire

Recommend wire #700122

Replacement endbell screws #183002

ZMV33500KV

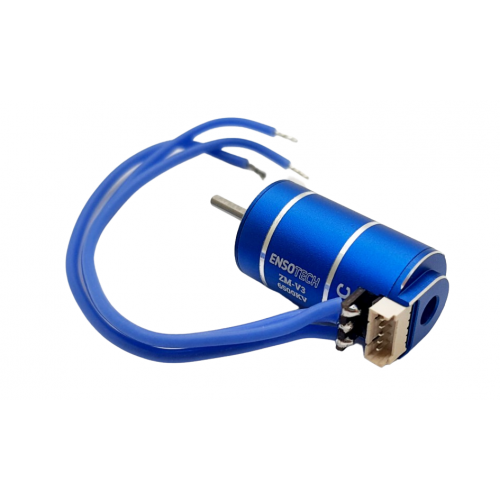

Ensotech brings the ultimate technology to mini-scale slotless motors and is pleased to introduce their third version in a new matte blue finish Swave-ZM V3 sensored brushless motor for 1:28th scale R/C race. After a year of research and testing, using a new type of sensor component, a more efficient copper wiring, and magnet to produce Swave-ZM V3 motor under an improved production method. All these updates result in a lowered overall resistance and an improved current flow. In terms of figures, the Swave ZM-V3 motor has increased the overall performance by almost 20%. These versions of motors feel significantly punchier although retaining a smooth powerful acceleration. Specification: Motor Type: 3 Phases, Slotless, Brushless Poles: 2P Motor Shaft Flat Spot: YES Power Cable: 3pcs x 100mm pre-soldered blue color cables Weight: 21g include motor wire Package: 1 x Ensotech Swave-ZM V3 3500KV motor

ZMV34500KV

Ensotech brings the ultimate technology to mini-scale slotless motors and is pleased to introduce their third version in a new matte blue finish Swave-ZM V3 sensored brushless motor for 1:28th scale R/C race. After a year of research and testing, using a new type of sensor component, a more efficient copper wiring, and magnet to produce Swave-ZM V3 motor under an improved production method. All these updates result in a lowered overall resistance and an improved current flow. In terms of figures, the Swave ZM-V3 motor has increased the overall performance by almost 20%. These versions of motors feel significantly punchier although retaining a smooth powerful acceleration. Specification: Motor Type: 3 Phases, Slotless, Brushless Poles: 2P Motor Shaft Flat Spot: YES Power Cable: 3pcs x 100mm pre-soldered blue color cables Weight: 21g include motor wire Package: 1 x Ensotech Swave-ZM V3 4500KV motor

ZMV35500KV

Ensotech brings the ultimate technology to mini-scale slotless motors and is pleased to introduce their third version in a new matte blue finish Swave-ZM V3 sensored brushless motor for 1:28th scale R/C race. After a year of research and testing, using a new type of sensor component, a more efficient copper wiring, and magnet to produce Swave-ZM V3 motor under an improved production method. All these updates result in a lowered overall resistance and an improved current flow. In terms of figures, the Swave ZM-V3 motor has increased the overall performance by almost 20%. These versions of motors feel significantly punchier although retaining a smooth powerful acceleration. Specification: Motor Type: 3 Phases, Slotless, Brushless Poles: 2P Motor Shaft Flat Spot: YES Power Cable: 3pcs x 100mm pre-soldered blue color cables Weight: 21g include motor wire Package: 1 x Ensotech Swave-ZM V3 5500KV motor

ZMV36500KV

Ensotech brings the ultimate technology to mini-scale slotless motors and is pleased to introduce their third version in a new matte blue finish Swave-ZM V3 sensored brushless motor for 1:28th scale R/C race. After a year of research and testing, using a new type of sensor component, a more efficient copper wiring, and magnet to produce Swave-ZM V3 motor under an improved production method. All these updates result in a lowered overall resistance and an improved current flow. In terms of figures, the Swave ZM-V3 motor has increased the overall performance by almost 20%. These versions of motors feel significantly punchier although retaining a smooth powerful acceleration. Specification: Motor Type: 3 Phases, Slotless, Brushless Poles: 2P Motor Shaft Flat Spot: YES Power Cable: 3pcs x 100mm pre-soldered blue color cables Weight: 21g include motor wire Package: 1 x Ensotech Swave-ZM V3 6500KV motor

TPR-BLM-4500KV-MBX-V4

TPR-BLM-5500KV-MBX-V4

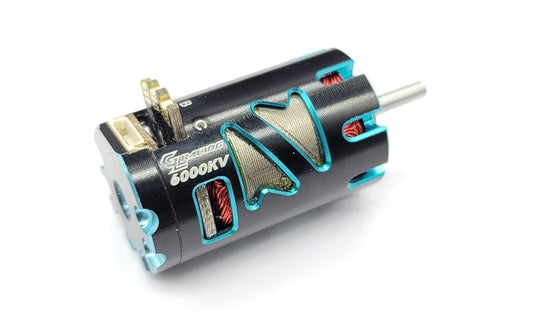

TPR-BLM-6000KV-MBX-V4

XMM001-3500N (3500KV)

Features:
2 Pole strong magnetic rotor hi-torque motor design.
High purity and higher temperature copper windings, lower copper losses, maximises efficiency.
Super thin (0.2 mm) stator lamination - lower eddy losses - maximises efficiency.
Japanese NMB --- High RPM ABEC5  bearings.
Precision balanced rotor, smoothness for best reliability and maximum 60,000 RPM.
CNC machined 6061 T6 aluminium heat sink vein can design--- good heat dissipating.
Precision engineered for maximum energy conversion.
Special designed end cap  with side locking screws that firmly secures the end cap and PCB.
☆☆☆ Sensorless motor can be easily upgraded to sensored motor with optional parts in the future, no longer need to change the entire motor.
Suit for 1/24 1/28 1/32 RC MINI-Z mini car

Description:

Brushless sensor-less motor for Mini-z and any other 1/28 sized micro racers! Features large air ventilation holes to keep with keeping temperatures cool! Four different set of mounting holes allows for you to shift the wiring to allow for ease of mounting. D shaped cut motor shaft for use with both plastic and metallic pinion gears with set screws!

Feature:

• For: 1/24 1/28 Scale Racers
• Poles: 2
• Material: Aluminum
• Color: Black / Red
• Dimensions: 36mm X 15mm (w/shaft) 27mm X 15mm (w/o shaft)
• Weight: 17g

Description:

Brushless sensor-less motor for Mini-z and any other 1/28 sized micro racers! Features large air ventilation holes to keep with keeping temperatures cool! Four different set of mounting holes allows for you to shift the wiring to allow for ease of mounting. D shaped cut motor shaft for use with both plastic and metallic pinion gears with set screws!

Features:

• For: Mini-Z and other 1/28 Scale Racers


• Poles : 2

• Material: Aluminum


• Color: Black/Red

• Dimensions : 36mm X 15mm (w/shaft)  , 27mm X 15mm (w/o shaft)


• Weight : 17g

*MR03 SPORT support this motor with gear ratio not lower than 4.75*

New Version with BALL BEARING

New 2010 Motors Series from 32T to 80T

• Model: MO-045
• Shipping Weight: 20 grams
• Manufactured by: Atomic

AtomicRC's Upgrade/optional MOTOR, SENSORD, Brushless 4500KV Zenon. NOT your average 15mm, run of the mill 130 size motor! 16mm diameter, HIGH TORQUE, SENSORED motor with an all-new design. Featuring: *larger motor can, new design internal windings and larger magnet! Attractive milled and vented motor can, new design, machined and milled end bell, unique anodized coating and distinct "ATOMIC" logo. Fit: many chassis. *Check for fitment
