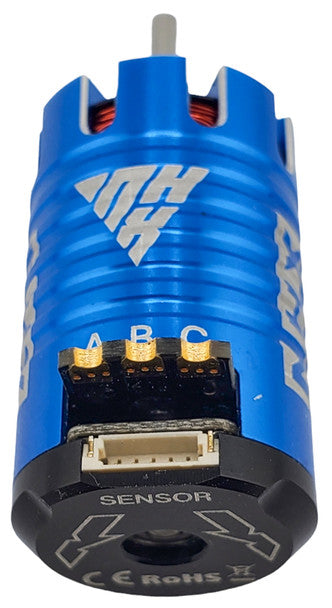

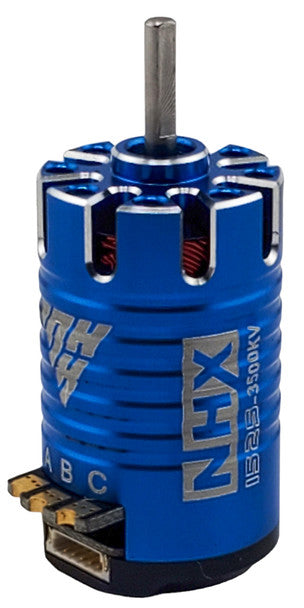

NHX RC 3500kv Mini 1525 2 Poles Sensored Brushless Motor

$39.90 $49.95
-20%
Shipping calculated at checkout.
Description

1525 2-Pole 3500KV Sensored Brushless Motor

High-Efficiency Power in a Compact Design – Perfect for 1/24 and 1/28 Scale RC Vehicles

The all-new 1525 2-Pole Sensored Brushless Motor delivers premium performance in a micro-sized package. Designed for competitive RC applications, this motor provides up to 80W of maximum power with an impressive 92% output efficiency. Whether you prefer Sensored or Sensorless startup, this motor adapts to your driving style.

🔧 Key Features:

  • Dual-Mode Startup: Supports both Sensored and Sensorless operation.
  • High-Efficiency Performance:
    • Powerful 2-pole rotor with high-temp magnets (up to 200°C).
    • 0.2mm silicon steel stator achieves up to 94% energy conversion.
    • High slot rate design for increased power with reduced resistance.
  • Premium Build Components:
    • NSK bearings from Japan for smooth high-speed performance.
    • Gold-plated thick PCB board ensures reliable ESC connection.
    • American MWS red wire for high-grade conductivity.
    • Sensor port compatible with standard sensor cables.
  • Precision-Balanced Rotor: Balanced with a German Schenker machine for ultra-smooth operation.
  • Turbo Timing Capable: Reach speeds of up to 60,000 RPM when turbo timing is enabled.
  • Durable Aluminum Alloy Housing: Lightweight and highly stable under load.

📐 Specifications:

Motor Type: Brushless, Sensored
KV Rating: 3500KV
Turns: 29.5T
Max Power: 80 Watts
Max RPM: 60,000 RPM (with turbo timing)
Rotor Poles: 2
Voltage Range: Up to 8.4V
Max Current: 8A
No-load Current (IO): 0.25A
Internal Resistance: 0.652 mΩ
Sensor Timing: Sensor 0°
Rotor Size: ø6.0 x 14.5mm
Dimensions: 15mm (D) x 25mm (L)
Shaft Diameter: 2mm
Weight: 17g

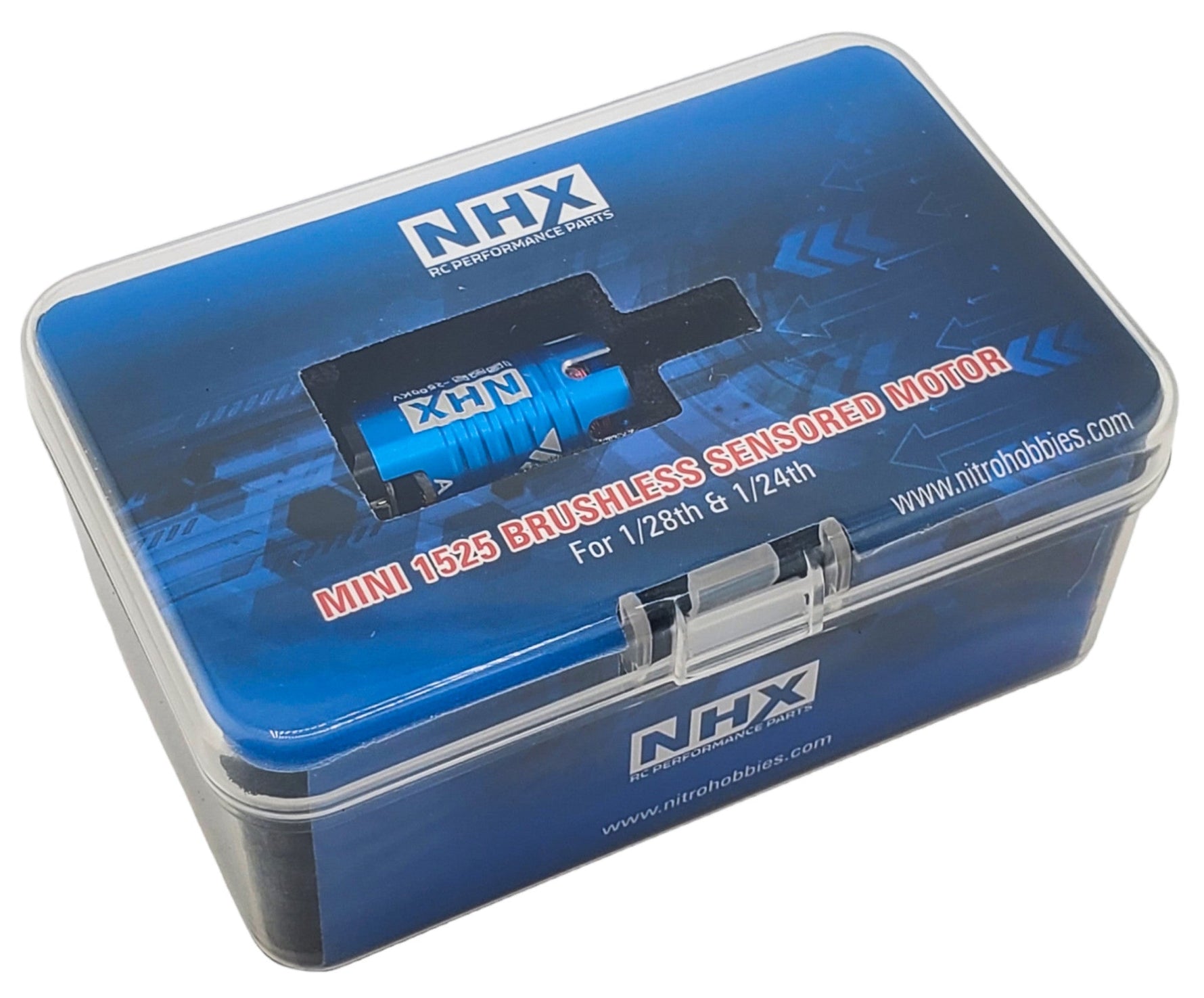

📦 Package Includes:

  • 1 × 3500KV Mini 1525 2-Pole Sensored Brushless Motor
  • 1 × Sensor/Connecting Cable

Ready to upgrade your 1/24 or 1/28 scale RC vehicle? The 1525 Sensored Brushless Motor delivers elite performance in a compact form factor — ideal for racers and hobbyists alike.
