GLR-001-KSET

RC28R with Body and Tires Team Kit

1:28 Scale 2WD Electric On-Road Competition Kit

SKU: #20165 + Body and Tires

Overview

Introducing the Team Associated RC28R Team Kit — a compact, high-performance on-road race car designed with the same AREA 51 engineering precision found in every Team Associated product.

Though small in scale, the RC28R delivers big performance in an easy-to-set-up package, perfect for competitive indoor racing or fun in tight spaces.

Key Features

• RADBODY Mako X clear body and tires included

• Fixed-arm front suspension with optional molded upper arms for adjustable caster and camber

• Front bulkhead design allows quick upper arm changes with consistent alignment

• Optimized steering geometry and adjustable servo mount to fine-tune Ackermann

• Steel chassis plate for a low center of gravity

• Quick-access battery holder – remove the battery without disturbing the center shock

• Torsion-style side links replace traditional side springs (soft, medium, and hard options included)

• Adjustable rear pod roll center inserts to tune chassis roll based on grip level

• Side damper tubes for optimized roll geometry

• Threaded aluminum center shock with adjustable droop and spring collar

• Two-piece rear pod with adjustable axle heights using Factory Team carbon fiber shims

• Gear differential included, compatible with various aftermarket options

• Hard plastic and polycarbonate body mount options included

• White wheels compatible with optional front wheel flanges to fine-tune steering response

• Universal front bumper included

• Backed by Team Associated’s quality, distribution, support, and customer service

Tuning & Setup Highlights

• Pitch, roll, and droop can be finely adjusted via the center shock and damper system

• Easily change axle height and ride height for different tire diameters

• Tune caster, camber, and Ackermann for precise steering feel

Recommended Tools & Accessories

To assemble and maintain your RC28R, you may need:

• Silicone Shock Fluid (Refer to Team Associated catalog)

• Silicone Diff Fluid (Refer to Team Associated catalog)

• Body Scissors (AE Part #1737)

• Reamer / Hole Punch

• FT Wrench Set (AE Part #1519)

• Hobby Knife

• Needle Nose Pliers

• Wire Cutters

• Soldering Iron

• Calipers or Precision Ruler

• Drivers:

  • 1.5mm hex

  • .050” hex

  • 1.3mm hex

  • 0.9mm hex

  • 4.5mm nut driver

  • PH00 driver

Specifications

• Scale: 1:28

• Drive: 2WD Electric On-Road

• Chassis: Steel plate with carbon fiber shims

• Suspension: Fixed-arm front / torsion side links rear

• Shock: Threaded aluminum center shock

• Body: RADBODY Mako X clear

• Wheels: White (tunable with front flanges)

Compact. Tunable. Built to race.
The RC28R Team Kit delivers professional-level performance in a small-scale package — designed for racers who demand precision, adjustability, and fun.

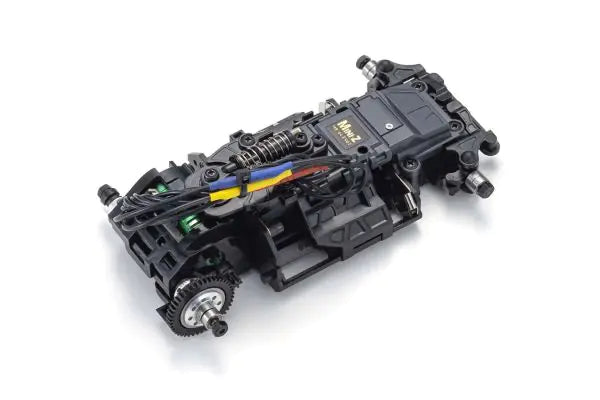

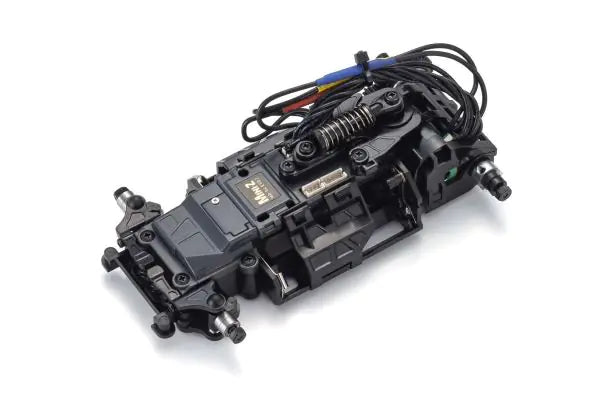

While retaining elements of the excellent MR-03 layout, the new MR-04EVO2 chassis achieves significant performance improvements with changes to the front suspension and a lower C of G that work in synergy with a sensored brushless motor. Both narrow and wide tread settings are available by changing the lower and upper plates on the front as well as the steering tie rod. Adjustable wheelbase allows chassis setting according to body type.

While camber angle is optimized during cornering with the swing of the current upper arm design, the front suspension uses the new kingpin-integrated knuckle to further improve camber stability. Geometric revision of caster and trail etc. delivers more linear maneuverability. New spec front springs for the MR-04 with different hardness are available as options.

Front knuckle design features integrated kingpin with optimized clearance with the kingpin ball for smoother operation. Ball bearings have been changed to 3mm internal diameter for lower rotational resistance.

All 7 ball bearings are 3mm internal diameter for lower rotational resistance to minimize friction loss.

Lower mounting of the AAA batteries on the chassis realizes a lower center of gravity compared to the MR-03. In combination with the chassis shape, this improves stability through corners as well as enhancing speed and control.

Ball differential included as standard optimizes the rotational differences between left and right rear wheels when turning. Also provides moderate slip action to improve traction when excessive load is applied. Silver clear anodized finish to aluminum parts creates a formidable style to match performance.

The new unit also supports high-speed communication with various high-end transmitters and receivers to realize unprecedented control response. Achieves transmission speeds of 0.99ms with KO units (ADV mode) and 0.9ms with Futaba units (EVO2 mode). *Previously 2.6ms ~ 3.0ms

PSP Racing Xpress Pixez Z1 — 1/28 Competition Micro Racing Car Kit

Xpress's entry into the competitive 1/28 scale market, combining race-bred design with an economical price point. Stability and ease of assembly were top priorities throughout the Pixez Z1's development.

Extra-long suspension arms slow camber change through corners, giving drivers easier, more predictable control. The gear differential is simple to build and delivers consistent performance on high-grip RCP tracks. Included body mounts follow the traditional mounting pattern, so bodies install without modification.

Features:

• Bevel Gear Differential
• Direct Servo Horn Steering System
• Grease-Filled Side Dampers
• Extra-Long Upper Suspension Arms
• Adjustable Caster Settings
• Narrow Main Chassis Plate
• Droop-Adjustable Center Damper
• Shim-Adjustable Rear Ride Height
• 21x45mm Battery Compartment

Specifications:

• Wheelbase: 98mm

Includes:

• Pixez Z1 1/28 Competition Micro Racing Car Kit (1 pc)

Required (sold separately):

• ESC
• Motor
• Servo
• Body
• Battery
• Tires
