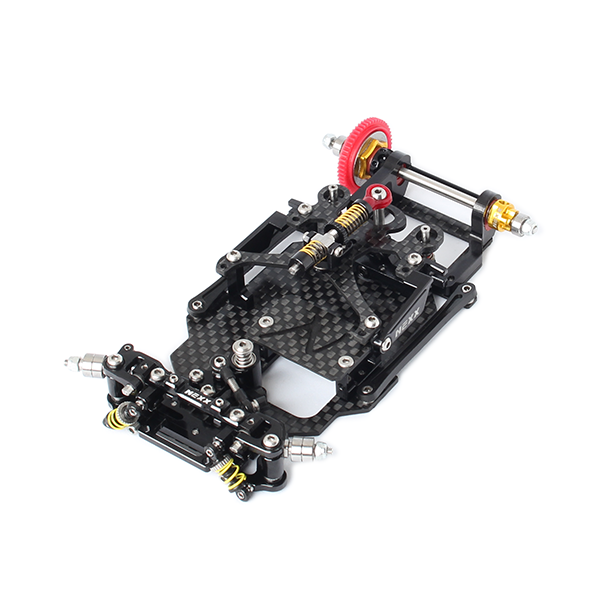

NX-300 Nexx Racing Specter 1/28 RWD Kit

ADo

Nexx_NX-300_ Sheet_Rev

NX300-Specter’s Description and Unique Characteristics:

• Width: 69mm (W)
• Wheelbase: 98-102 mm
• Weight: ~54g (Kit only)
• Battery Compatible: 22 x 46 x 13.7 mm (2S – 7.4V Lipo Battery)
• Micro Servo Compatible: 24-24.4mm x 7-11.5mm x 10.5-13.7mm
• Specter is 100% made of high-quality materials including 7075 T6 Aluminum, POM, Carbon Fiber, Stainless Steel Hardware and a few Plastic parts. All is precisely machined under expert’s supervision.
• Easy to assemble.
• Suitable for both Professionals and Beginners as the Set-Up is varied.
• Simple Caster Angle adjustment: 0 and 1 degree.
• Simple Camper Angle adjustment: 0, 1 and 2 degrees.
• Simple and Quick Wheelbase adjustment (98-102mm).
• Toe Angle adjustment.
• High Clearance adjustment.
• Front and Rear suspension system adjustment.
• Springs replacement.
• Servo Saver system (cantilever system) is optimized, lower the chances of Servo Gear Breakdown (2 modes include direct and preferred Servo Saver).
• Compatible with both Lexan bodies and Plastic bodies.
• SPECTER has a SOLID structure and high stability. The chance SPECTER gets eliminated within a race by parts come apart and break is minimized.
• Extremely Low CG compared to others.
• 64P 53T Spur Gear Ball Differential used CNC Gear, 2 Diff Washers are manually polished and Ceramic Balls to create a perfect state for the RC car (Optional).
• Front Suspension System has soft and solid design, easily to eliminate any impacts on the track, helps SPECTER to be more stable.
• Our design is based on three characteristics, DURABLE – CONVINIENCE – ART.

Requires:

• 1 x Motor
• 1 x ESC (2S Lipo ESC)
• 1 x Servo (GL003-DMG, Atomic HV1885, KSTX06,..)
• 1 x Battery (22 x 46 x 13.7 mm (2S – 7.4V Lipo Battery))
• 1 x Ground Transmitter and Micro Receiver
• 1 x Body
• 4 x Wheels and Tires
