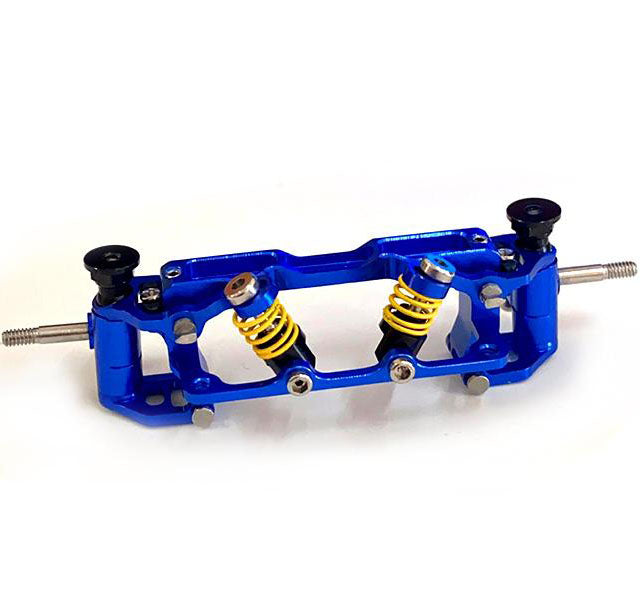

Nexx Racing NX-029 V-Line Front Suspension System (BLUE)

NEXX RACING V-line Front Suspension system is designed with innovative features such as quick adjustable caster, quick adjustable camber, adjustable ride height…. It makes the Mini-Z looks much like a real car, not only fast but also stable, better cornering and better suspension overall.  With locknuts and kingpins, V-LINE is designed to minimize most of the play resulting very smooth performance.  The V-LINE suspension systems fits only Mini-Z MR03 wide base models and also fits PN 2.5 Chassis.  For easy assembly, we pre-install the V-LINE suspension system at factory so it’s very easy and fast to assembly it on the Mini-Z.

COLOR: BLUE

V-LINE SUSPENSION SYSTEM FEATURES

• V- line suspension is designed with 2 V-shaped suspension forks to bring you a cool suspension system·
• Same width as stock. (MR02/ MR03 PNR2.5W Chassis width)·

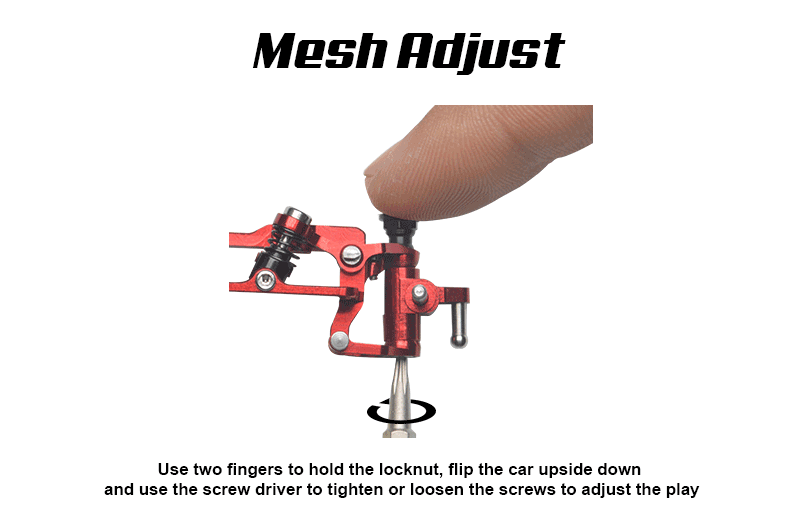

• Suspension movement use ball joints instead of sliding knuckle and locknut easy adjustment play between knuckle and upper arm make joints will not pop out even during hard collision.·

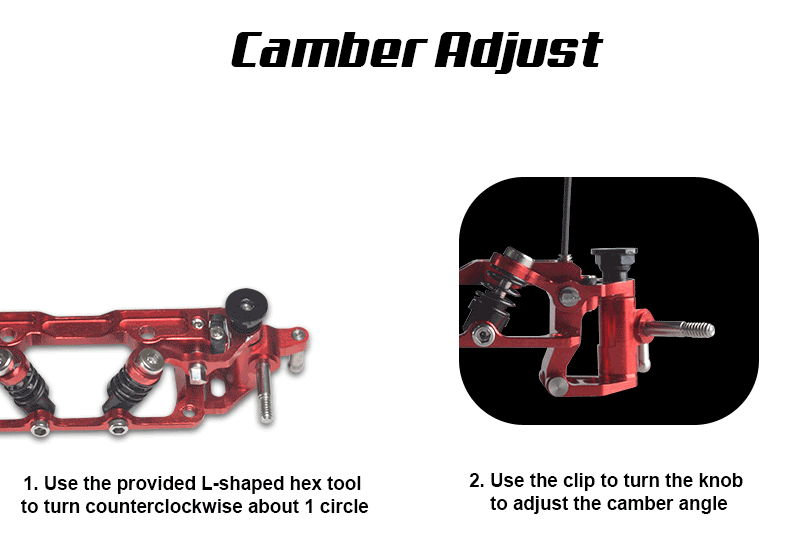

• Adjustable camber from 0-3⁰ degrees with 4 position eccentric shaft with easy operation·
• Quick adjustable caster by caster bar from 0-1.9⁰ ·

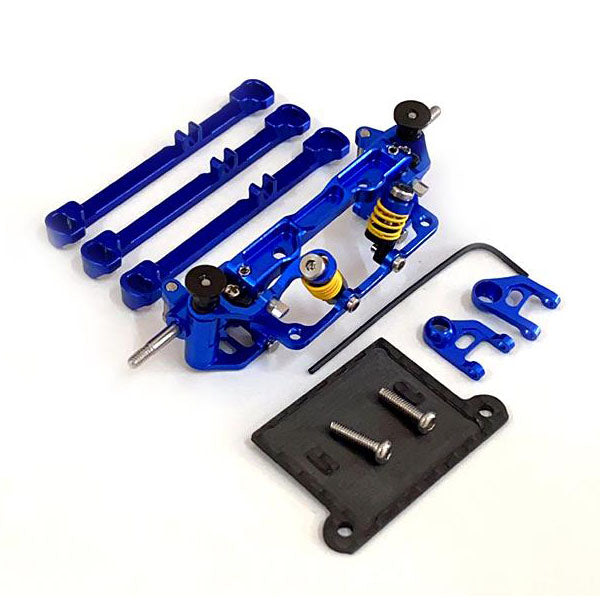

• Both 0⁰ and 1⁰ lower A arms provided to facilitate suspension setup·
• Ride height adjustment  with turn of a screw·
• All 3 tie rods 0⁰, 0.5⁰, 1⁰ included ·
• High quality Precision CNC Swiss 7075 aluminum
