AGFRC - A06CLS V2 SERVO (Black - 20T Spline).

A06CLS V2

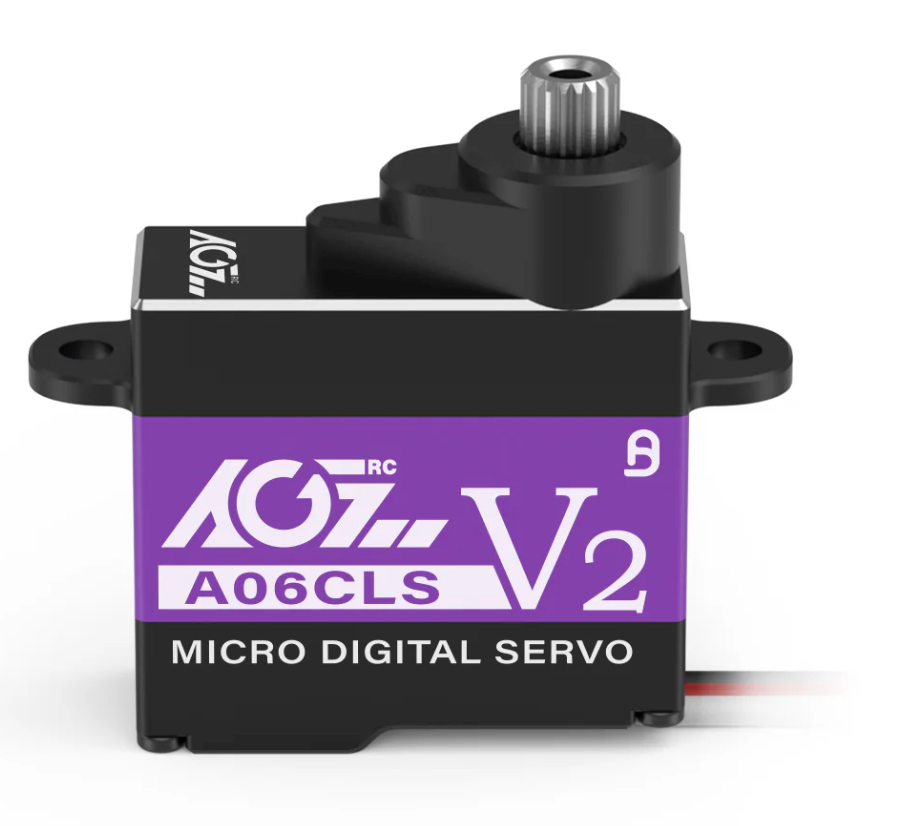

AGFRC 6g Upgrade Metal Case 0.052sec Programmable High Speed High Torque Digital 3.0KG Servo JST/JR Plug For Mini Z RC Track Car (A06CLS V2)

AGFrc A06CLS V2 is the new version of the A06CLS servo, it is designed for mini z cars and other mini scale models. This servo not only did the body to ultra-small size, but the torque go up to 3.0kg-cm and the speed can reach 0.055sec at 8.4V. With the reliable coreless motor and titanium gear, the performance is commendable. It inherits the advantages of A06CLS servo and upgraded to the 2S high voltage version, suitable for more applications now. Black and purple for selection.

Feature

Ultra light weight mini z servo

High accuracy tianium gear

High quality coreless motor

Fast cooling aluminum case

DIY parameter via USB programmer card

Design for mini z cars, 1/18, 1/24, 1/27, 1/28 Scale Cars such as GLR /GLA /GLF-1 /GL-Rider etc.

Stall Torque

• 1.8 kg-cm (25 oz-in) @4.8V
• 2.2 kg-cm (30 oz-in) @6.0V
•

• 2.6 kg-cm (36 oz-in) @7.4V
• 3.0 kg-cm (41 oz-in) @8.4V

Operating Speed

• 0.075sec/60°@4.8V
• 0.066sec/60°@6.0V
• 0.058sec/60°@7.4V
• 0.052sec/60°@8.4V
