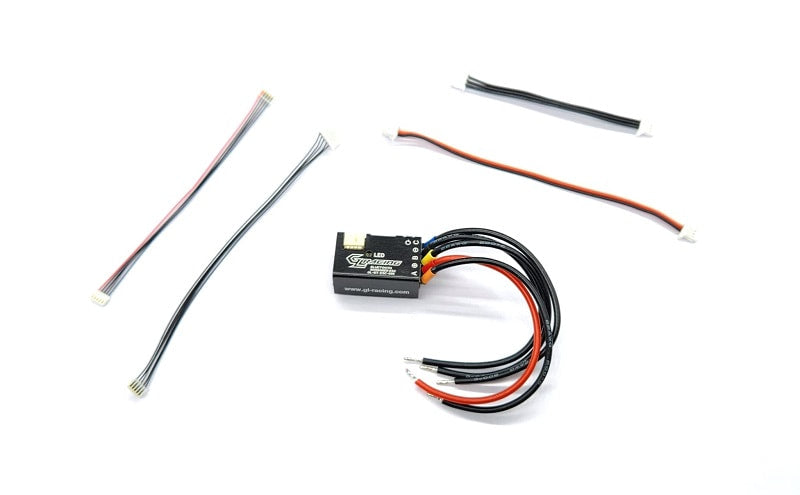

GL bluetooth 32-bit brushless sensored ESC

GL-BT-ESC-030 (Built-in Bluetooth) Brushless Sensored Speed Control for 1/28 mini car

Change to 32-bit MCU with ultra-smooth, faster response with precise throttle,brake and reverses control.

. Support ~2.5A BEC ampere drawn which is raised up by ~70%.

. Support ~30A instant ampere drawn by the motor which is raised up by ~80%.

. Built-in Bluetooth device for advanced programming and firmware update through the Mobile APPS.

. APPS will be available on both IOS and Android.

. Real Time Data Analysis through Mobile APPS(Current Input & Output Throttle, Temperature, RPM, Adv. Timing, Voltage and min. voltage, Max Temperature, RPM & Adv. Timing).

Software:

. It is a new developed software with more advanced item functions added

. Each item have small step to fine tune.

. All update item functions information can be reviewed from the photos attached.

Specs:

Battery Input Voltage: 2S lipo

BEC: 6V/2.5A

1/28 motor Limit: 9000kv or below

Max Ampere draw: ~30A per phase

Size: ~22.7x14.0x9.6mm(not include the plug)

Weight: ~5.6g(without any wire installed)
